Baldor CEBM3710T-D - 7.5 HP, 1770RPM, 3 Phase, 60HZ, 213TC, 3738M, TEFC 60HZ Three Phase 7.5 HP 3738 M Cable

Save $2,422.40
BaldorSKU: CEBM3710T-D

Price:
Sale price$3,633.60 Regular price$6,056.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

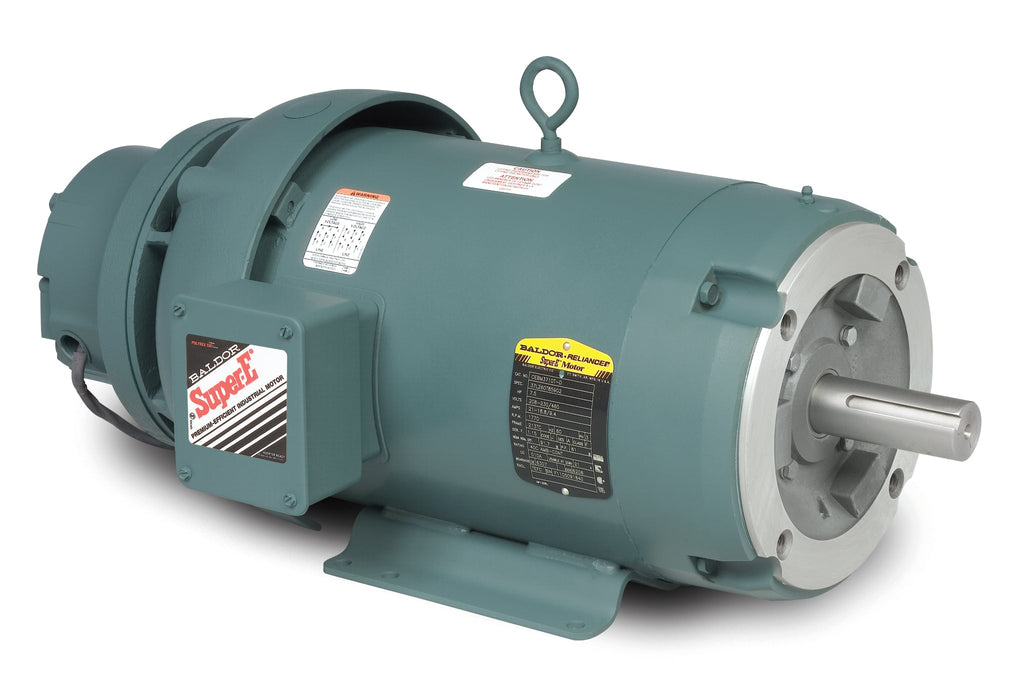

Baldor CEBM3710T-D General Unit Handling Motor

Experience reliable performance with the Baldor CEBM3710T-D, a powerful 7.5 HP, 1770 RPM, 3-phase motor designed for general unit handling applications. This motor operates at 60Hz and features a robust TEFC (Totally Enclosed Fan Cooled) design, ensuring durability and efficiency in demanding environments.

Specifications:

  • Power: 7.5 HP
  • Speed: 1770 RPM
  • Phase: 3
  • Frequency: 60Hz
  • Frame Size: 213TC
  • Model: 3738M
  • Type: TEFC

This motor is ideal for various applications, including pumps, conveyors, and other machinery requiring reliable and efficient power. At Pump-Stop.com, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

For assistance, please check your current pump for the exact part number or SKU that matches the Baldor CEBM3710T-D. If you have any questions or need help finding the right item, don't hesitate to call us at (781) 281-8905.

UPC 781568538227
Supplier Part Number CEBM3710T-D
Category AC Motors
Subcategory General Unit Handling Motors
Product Family General Purpose
Agency Approvals CURUSEEV, NEMA_PREMIUM
Ambient Temperature 40 °C
Approximate Weight (lbs) 141.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Brake Torque 25.0 lb-ft
Catalog Number CEBM3710T-D
Current @ Voltage 20.000 A @ 208.0 V, 9.500 A @ 460.0 V, 19.000 A @ 230.0 V
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 91.7 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 213TC
Frame Material Steel
Frequency 60.00 Hz
Front Face Code Fan Housing Cover For Brake
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 9.5 a
Insulation Class F
Inverter Code Inverter Ready
KVA Code J
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 3738M
Mounting Arrangement F1
Number of Poles 4
Output 7.500 hp
Output @ Frequency 7.500 HP @ 60 HZ
Overall Length 26.11 IN
Phase 3
Power Factor 80
Product Type D-SERIES BRAKE MOTORS
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.375 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V, 230 V
Voltage @ Frequency 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None
