Baldor CDX7150 - 1.5 HP, 1750RPM, DC, 184C, X3636D, Xpfc, F1 1.5 HP 184°C

Save $3,400.80
BaldorSKU: CDX7150

Price:
Sale price$5,101.20 Regular price$8,502.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

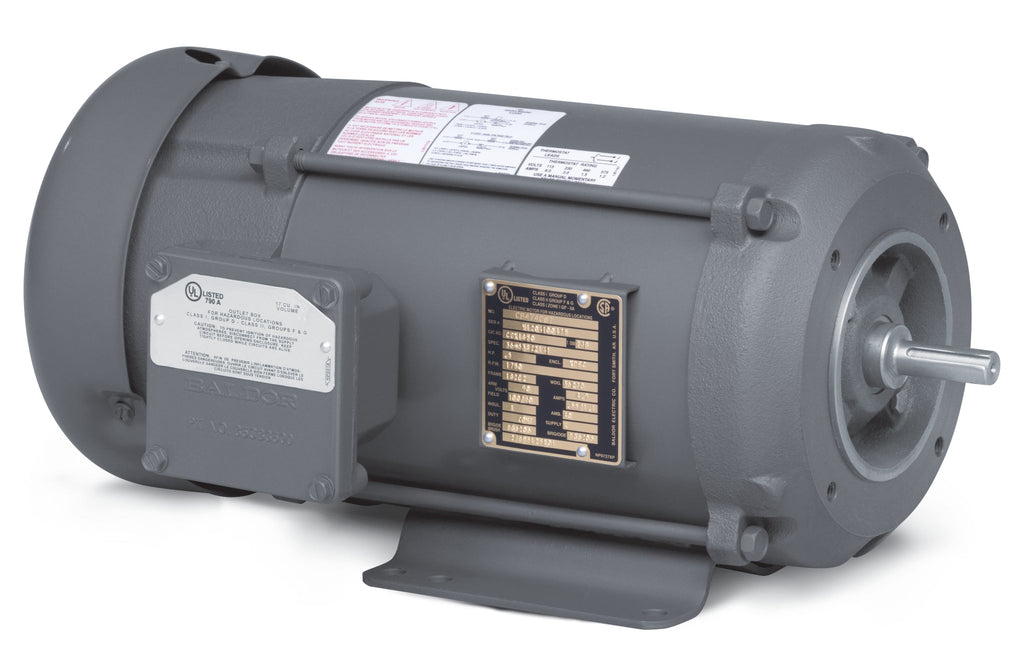

Baldor CDX7150 - 1.5 HP DC Motor

Upgrade your pumping system with the Baldor CDX7150, a high-performance 1.5 HP DC motor designed for reliability and efficiency. Operating at 1750 RPM, this fractional horsepower motor is ideal for various applications, ensuring optimal performance in demanding environments.

Key Features:

  • Power: 1.5 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 184C
  • Product Code: CDX7150
  • Design: X3636D, XPFC, F1

As a trusted supplier, Pump-Stop is your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568125007
Supplier Part Number CDX7150
Category DC Motors
Subcategory Fractional HP Motors
Product Family General Purpose
Agency Approvals CSA, UL
Ambient Temperature 40 °C
Approximate Weight (lbs) 120.0
Armature Current 7.5 a
Armature Inertia 30.342 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Field Voltage 200 V, 100 V
Field Winding Type SHUNT
Frame 184C
Frame Material Steel
Haz Area Class and Group Class I, Group D; Class II, Group F & G
Haz Area Division Division I
Haz Area Temp Code T3B
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 18 AWG, 2 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 1.5 hp
Overall Length 20.30 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
