Baldor CDX2001 - 1 HP, 1750RPM, DC, 182CZ, X3623D, Xpfc, F1 1 HP

Save $3,093.60
BaldorSKU: CDX2001

Price:
Sale price$4,640.40 Regular price$7,734.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

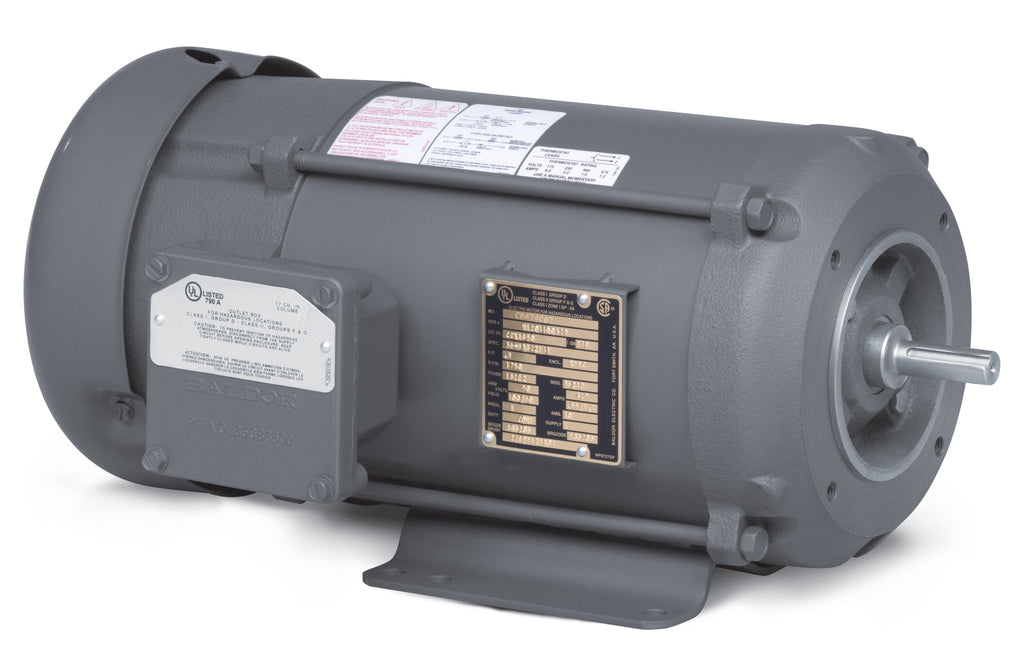

Baldor CDX2001 - 1 HP DC Motor

The Baldor CDX2001 is a high-performance fractional horsepower motor designed for reliable operation in various applications. With a power output of 1 HP and a speed of 1750 RPM, this DC motor is ideal for those seeking efficiency and durability. It features a 182CZ frame and is classified under the X3623D and XPFC categories, ensuring compatibility with a wide range of systems.

Key Features:

  • Power: 1 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 182CZ
  • Product Code: CDX2001

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor CDX2001. If you encounter any difficulties in locating the right item, our team is here to help!

UPC 781568124970
Supplier Part Number CDX2001
Category DC Motors
Subcategory Fractional HP Motors
Product Family Hazardous Location Motor
Agency Approvals CSA, UL
Ambient Temperature 40 °C
Approximate Weight (lbs) 102.0
Armature Current 5.0 a
Armature Inertia 19.385 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Field Voltage 200 V, 100 V
Field Winding Type SHUNT
Frame 182CZ
Frame Material Steel
Haz Area Class and Group Class I, Group D; Class II, Group F & G
Haz Area Division Division I
Haz Area Temp Code T3B
Heater Indicator No Heater
Insulation Class A
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 18 AWG, 2 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 1 hp
Overall Length 18.61 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
