Baldor CDX1850 - .5 HP, 1750RPM, DC, 182CZ, X3623D, Xpfc, F1 5 HP

Save $1,878.40
BaldorSKU: CDX1850

Price:
Sale price$2,817.60 Regular price$4,696.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

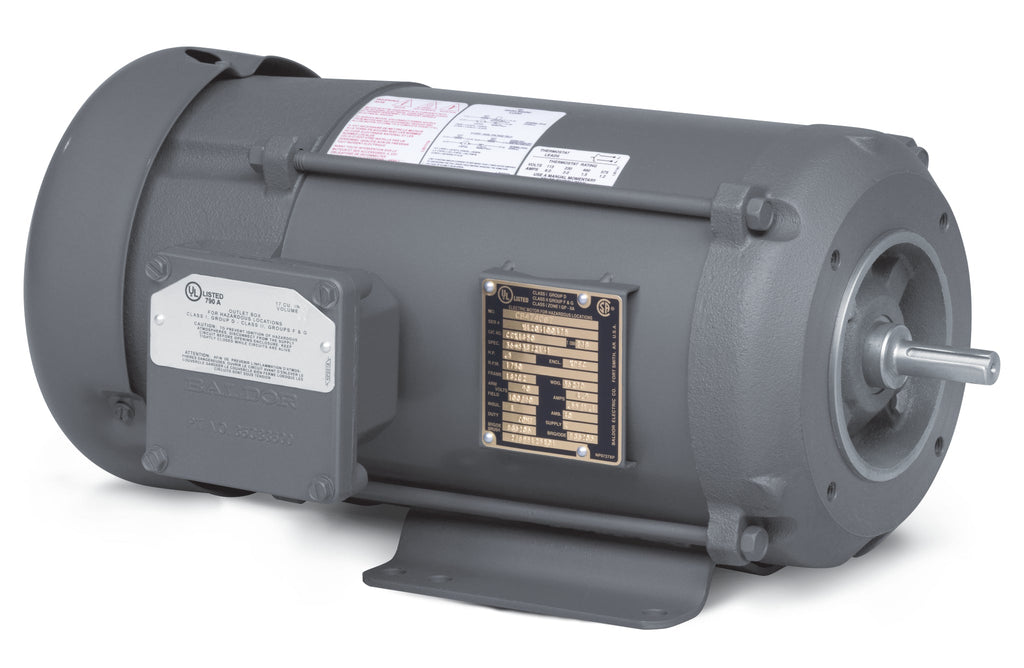

Baldor CDX1850 - .5 HP, 1750 RPM DC Motor

Upgrade your equipment with the Baldor CDX1850, a reliable and efficient fractional horsepower motor designed for various applications. With a power output of .5 HP and a speed of 1750 RPM, this DC motor is perfect for those seeking performance and durability.

Key specifications include:

  • Type: Fractional HP Motor
  • Model: 182CZ
  • Product Code: CDX1850
  • Design: X3623D, XPFC, F1

As a trusted vendor, Baldor ensures that this motor meets high standards of quality and efficiency, making it an ideal choice for your pump and drive needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CDX1850. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568124932
Supplier Part Number CDX1850
Category DC Motors
Subcategory Fractional HP Motors
Product Family Hazardous Location Motor
Agency Approvals CSA, UL
Ambient Temperature 40 °C
Approximate Weight (lbs) 102.0
Armature Current 4.9 a
Armature Inertia 19.385 lb-ft2
Armature Voltage 90 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Field Voltage 50 V, 100 V
Field Winding Type SHUNT
Frame 182CZ
Frame Material Steel
Haz Area Class and Group Class I, Group D; Class II, Group F & G
Haz Area Division Division I
Haz Area Temp Code T3B
Heater Indicator No Heater
Insulation Class A
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 18 AWG, 2 @ 16 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 0.5 hp
Overall Length 18.61 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
