Baldor CDPX3555 - 1 HP, 1750RPM, DC, 56C, X3536P, Xpfc, F1 1 HP 56°C

Save $3,022.00
BaldorSKU: CDPX3555

Price:
Sale price$4,533.00 Regular price$7,555.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

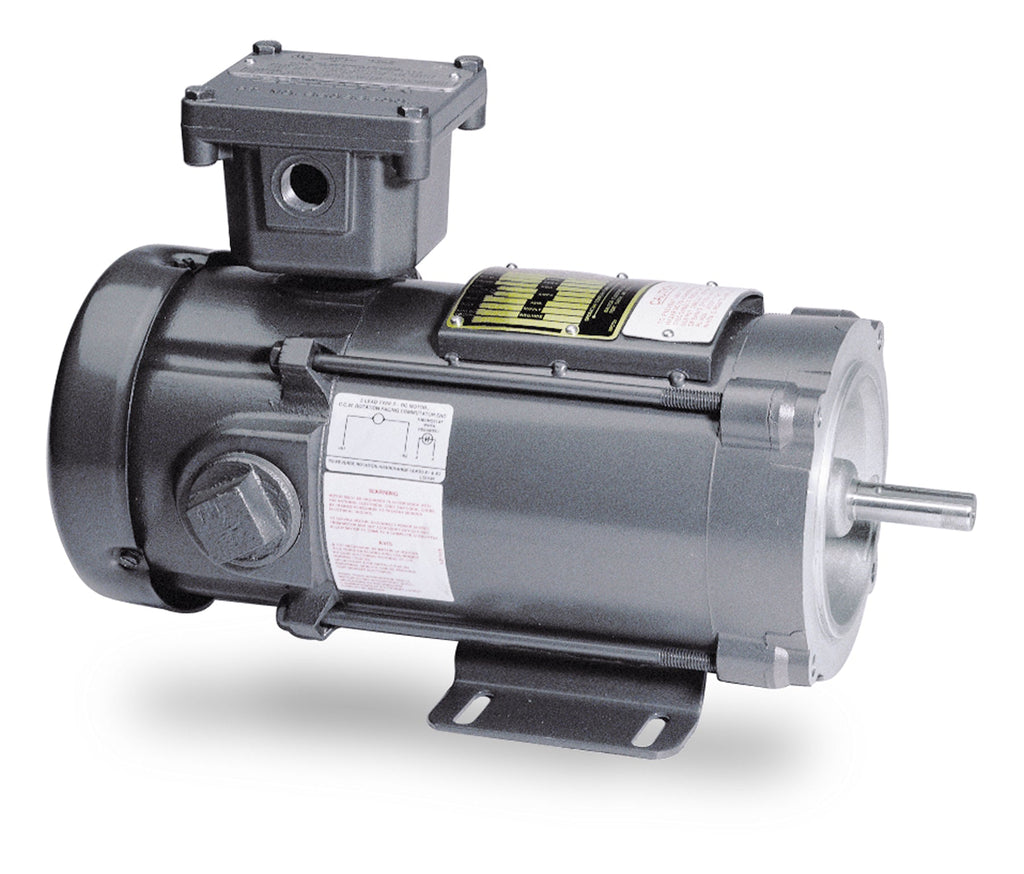

Baldor CDPX3555 - 1 HP General Purpose DC Motor

Discover the reliability and performance of the Baldor CDPX3555, a high-quality 1 HP, 1750 RPM General Purpose DC Motor. Designed for versatility, this motor is ideal for various applications, ensuring efficient operation and durability. With a frame size of 56C and featuring the X3536P and XPFC design, this motor is built to meet the demands of your projects.

Key Features:

  • Power: 1 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 56C
  • Product Code: CDPX3555

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CDPX3555 to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568134016
Supplier Part Number CDPX3555
Category DC Motors
Subcategory General Purpose DC Motors
Product Family Hazardous Location Motor
Agency Approvals CSA, UL
Ambient Temperature 40 °C
Approximate Weight (lbs) 70.0
Armature Current 4.9 a
Armature Inertia 30.342 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Haz Area Class and Group Class I, Group D; Class II, Group F & G
Haz Area Division Division I
Haz Area Temp Code T3C
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 1 hp
Overall Length 18.36 IN
Pulley End Bearing Type Sealed Bearing
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger

Motor Curves
