Baldor CDPX3426 - .5 HP, 1750RPM, DC, 56C, X3428P, Xpfc, F1 5 HP 56°C

Save $1,835.60
BaldorSKU: CDPX3426

Price:
Sale price$2,753.40 Regular price$4,589.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

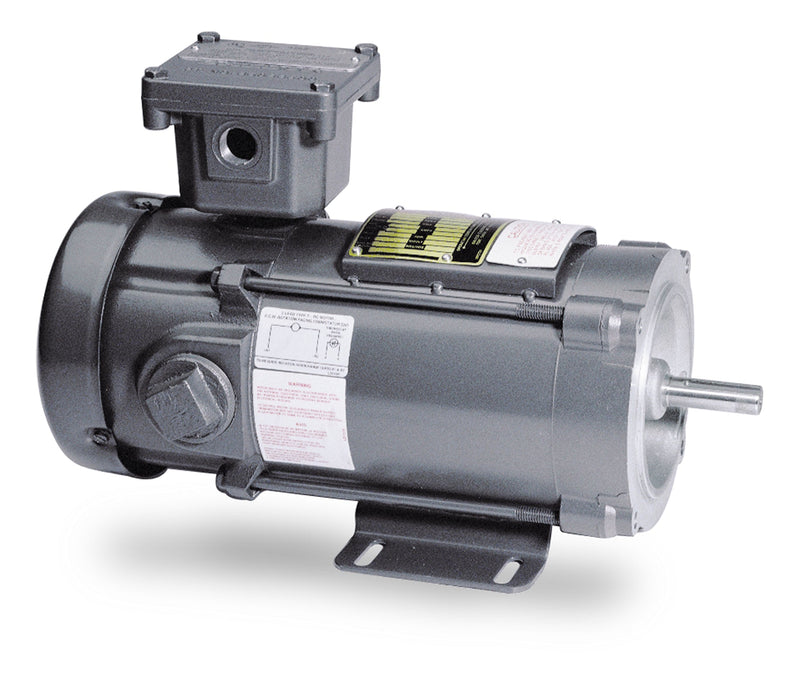

Baldor CDPX3426 - .5 HP General Purpose DC Motor

Discover the reliability and performance of the Baldor CDPX3426, a .5 HP General Purpose DC Motor designed for a variety of applications. Operating at 1750 RPM, this motor is perfect for those seeking efficiency and durability in their equipment. With a 56C frame and featuring the X3428P and XPFC design, this motor is built to meet the demands of your projects.

Key Features:

  • Power: .5 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 56C
  • Product Code: CDPX3426

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568133965
Supplier Part Number CDPX3426
Category DC Motors
Subcategory General Purpose DC Motors
Product Family Hazardous Location Motor
Agency Approvals CSA, UL
Ambient Temperature 40 °C
Approximate Weight (lbs) 46.0
Armature Current 2.5 a
Armature Inertia 10.926 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Haz Area Class and Group Class I, Group D; Class II, Group F & G
Haz Area Division Division I
Haz Area Temp Code T3C
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG, A
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 0.5 hp
Overall Length 14.87 IN
Pulley End Bearing Type Sealed Bearing
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
