Baldor CDPX3406 - .25 HP, 1750RPM, DC, 56C, X3413P, Xpfc, F1 25 HP 56°C

Save $1,294.40
BaldorSKU: CDPX3406

Price:
Sale price$1,941.60 Regular price$3,236.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

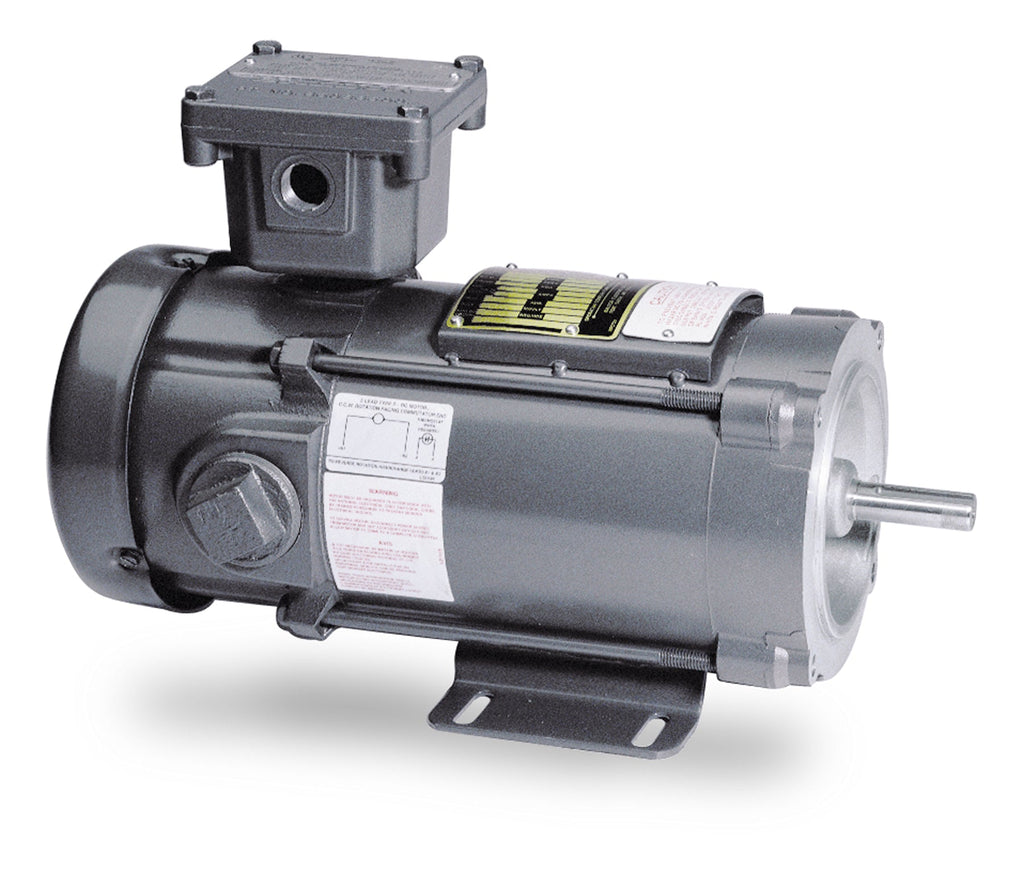

Baldor CDPX3406 - .25 HP General Purpose DC Motor

Discover the reliability and performance of the Baldor CDPX3406, a .25 HP, 1750 RPM General Purpose DC Motor designed for a variety of applications. This motor features a robust 56C frame and is equipped with the X3413P and XPFC specifications, ensuring efficient operation and durability.

Whether you need a replacement for your existing pump or are looking to upgrade your system, the Baldor CDPX3406 is an excellent choice. With its high-quality construction and dependable performance, this motor is ideal for various industrial and commercial uses.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CDPX3406 to ensure compatibility. Our team is here to help you find the perfect solution for your needs.

Product Specifications:

  • Power: .25 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 56C
  • Product Code: CDPX3406

Choose the Baldor CDPX3406 for a reliable and efficient motor solution. Order now and experience the quality that Baldor-Reliance Motors & Drives is known for!

UPC 781568174715
Supplier Part Number CDPX3406
Category DC Motors
Subcategory General Purpose DC Motors
Product Family General Purpose
Agency Approvals CSA, UL
Ambient Temperature 40 °C
Approximate Weight (lbs) 38.0
Armature Current 1.3 a
Armature Inertia 5.073 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Haz Area Class and Group Class I, Group D; Class II, Group F & G
Haz Area Division Division I
Haz Area Temp Code T3C
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG, A
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 0.25 hp
Overall Length 13.87 IN
Pulley End Bearing Type Sealed Bearing
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
