Baldor CDPT3605 - 5 HP, 1750RPM, DC, 1810ATC, 3681P, TEFC, F1, N 5 HP

Save $4,666.80
BaldorSKU: CDPT3605

Price:
Sale price$7,000.20 Regular price$11,667.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

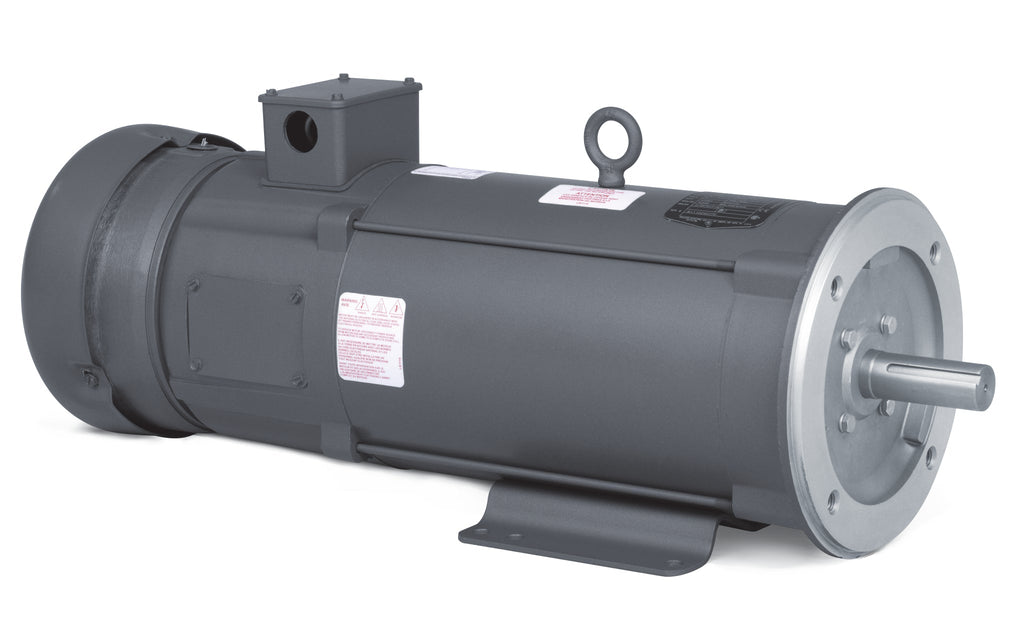

Baldor CDPT3605 - 5 HP General Purpose DC Motor

Upgrade your pumping system with the Baldor CDPT3605, a reliable and efficient 5 HP, 1750 RPM General Purpose DC Motor. Designed for durability and performance, this motor features a TEFC (Totally Enclosed Fan Cooled) design, ensuring optimal operation in various environments. With a robust construction and a 1810ATC frame, the Baldor CDPT3605 is perfect for a wide range of applications, making it an ideal choice for your pumping needs.

As the preferred source for replacement pumps and parts, Pump-Stop.com is here to help you find the right components for your system. If you have questions or need assistance locating the correct pump, feel free to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. Don’t hesitate to reach out if you need help finding the right item!

Product Specifications:

  • Power: 5 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame: 1810ATC
  • Model: 3681P
  • Enclosure: TEFC
  • SKU: CDPT3605

Choose the Baldor CDPT3605 for a dependable and efficient solution to your pumping requirements!

UPC 781568133804
Supplier Part Number CDPT3605
Category DC Motors
Subcategory General Purpose DC Motors
Product Family General Purpose
Agency Approvals CE, CSA, UKCA, UR, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 164.0
Armature Current 24.5 a
Armature Inertia 177.060 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device TACHOMETER
Frame 1810ATC
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 5 hp
Overall Length 30.07 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger

Motor Curves
