Baldor CDPT3603 - 3 HP, 1750RPM, DC, 184ATC, 3649P, TEFC, F1, N 3 HP

Save $3,119.60
BaldorSKU: CDPT3603

Price:
Sale price$4,679.40 Regular price$7,799.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

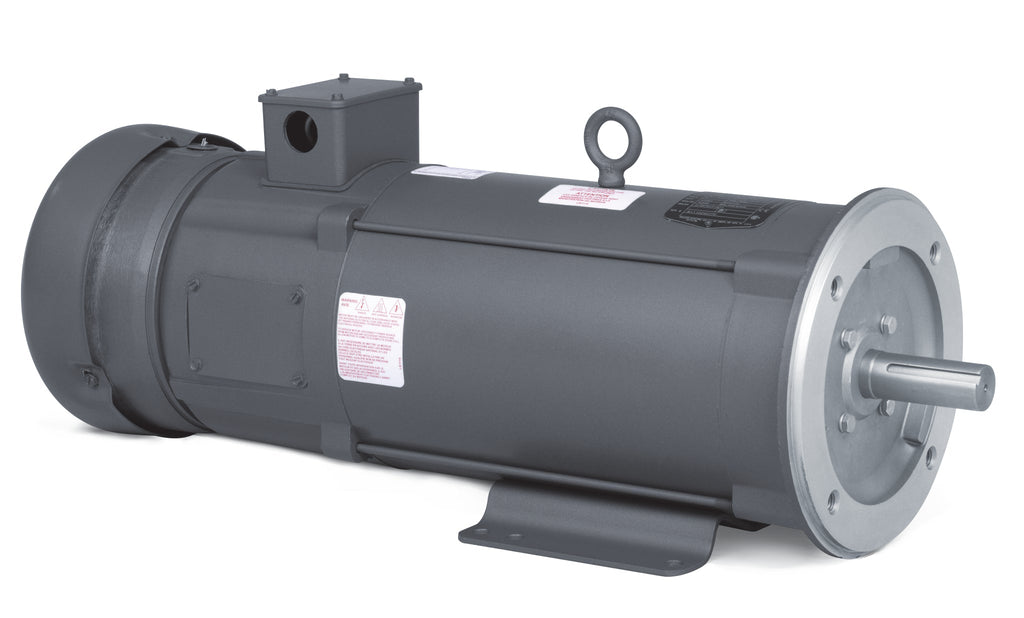

Baldor CDPT3603 - 3 HP General Purpose DC Motor

Upgrade your pumping system with the Baldor CDPT3603, a high-performance 3 HP General Purpose DC Motor designed for reliability and efficiency. Operating at 1750 RPM, this motor is ideal for a variety of applications, ensuring optimal performance in demanding environments.

Key Features:

  • Power: 3 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 184ATC
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1
  • Product Code: CDPT3603

This Baldor-Reliance motor is built to last, making it a perfect choice for those seeking durability and performance in their pumping solutions. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right components for your needs.

For assistance, please check your current pump for the exact part number or SKU that matches the Baldor CDPT3603. If you have any questions or need help finding the right item, don’t hesitate to call us at (781) 281-8905.

UPC 781568133798
Supplier Part Number CDPT3603
Category DC Motors
Subcategory General Purpose DC Motors
Product Family General Purpose
Agency Approvals CE, CSA, UKCA, UR, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 120.0
Armature Current 14.0 a
Armature Inertia 107.110 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device TACHOMETER
Frame 184ATC
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 3 hp
Overall Length 27.36 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger

Motor Curves
