Baldor CDPT3585 - 2 HP, 1750RPM, DC, 143TC, 3548P, TEFC, F1, N 2 HP

Save $2,682.00
BaldorSKU: CDPT3585

Price:
Sale price$4,023.00 Regular price$6,705.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

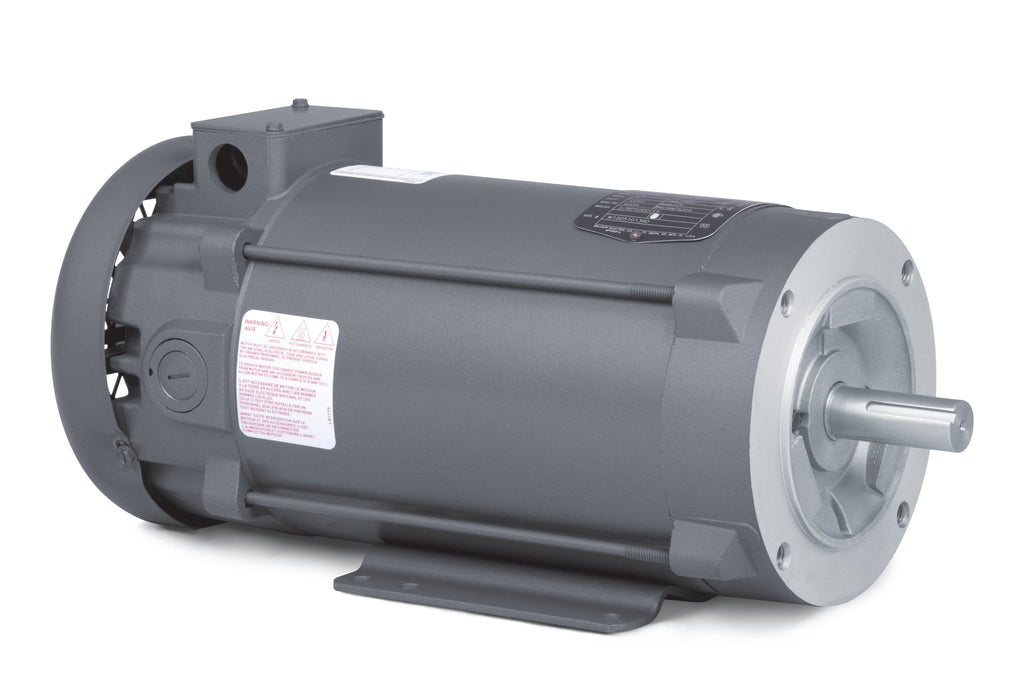

Baldor CDPT3585 - 2 HP General Purpose DC Motor

Discover the reliability and performance of the Baldor CDPT3585, a powerful 2 HP General Purpose DC Motor designed for a variety of applications. Operating at 1750 RPM, this motor is built to deliver consistent performance and efficiency. With a 143TC frame size and TEFC (Totally Enclosed Fan Cooled) design, it ensures durability and protection against environmental factors.

Key Features:

  • Power: 2 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 143TC
  • Enclosure: TEFC
  • Product Code: CDPT3585

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568133781
Supplier Part Number CDPT3585
Category DC Motors
Subcategory General Purpose DC Motors
Product Family General Purpose
Agency Approvals CE, CSA, UKCA, UR, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 77.0
Armature Current 9.6 a
Armature Inertia 40.456 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device TACHOMETER
Frame 143TC
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 2 hp
Overall Length 20.25 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger

Motor Curves
