Baldor CDPT3575 - 1.5 HP, 1750RPM, DC, 145TC, 3536P, TEFC, F1, N 1.5 HP

Save $2,390.40
BaldorSKU: CDPT3575

Price:
Sale price$3,585.60 Regular price$5,976.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

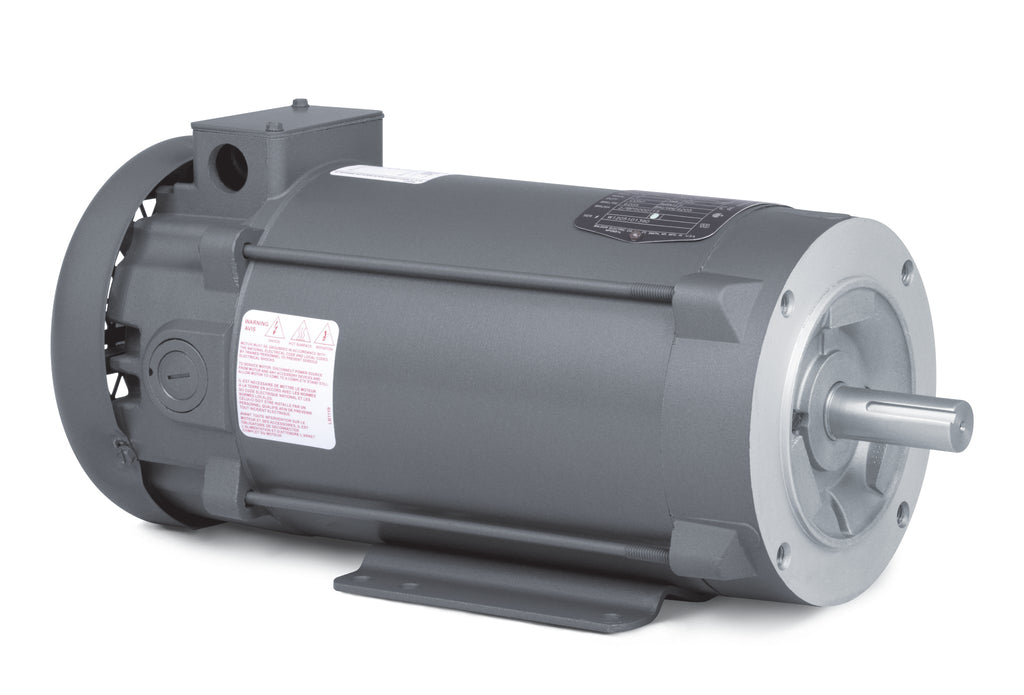

Baldor CDPT3575 - 1.5 HP General Purpose DC Motor

Discover the reliability and performance of the Baldor CDPT3575, a high-quality 1.5 HP General Purpose DC Motor designed for various applications. Operating at 1750 RPM, this motor is perfect for those seeking efficiency and durability in their equipment.

Key Features:

  • Power: 1.5 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 145TC
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1
  • Product Code: CDPT3575

This Baldor-Reliance motor is engineered for general-purpose use, making it an ideal choice for a variety of applications. With its robust construction and efficient design, it ensures long-lasting performance and minimal maintenance.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CDPT3575 to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568133774
Supplier Part Number CDPT3575
Category DC Motors
Subcategory General Purpose DC Motors
Product Family General Purpose
Agency Approvals CE, CSA, UKCA, UR, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 71.0
Armature Current 7.7 a
Armature Inertia 30.342 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device TACHOMETER
Frame 145TC
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 1.5 hp
Overall Length 19.25 IN
Pulley End Bearing Type Ball
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger

Motor Curves
