Baldor CDPT3440 - .75 HP, 1750RPM, DC, 56C, 3428P, TEFC, F1, N 75 HP 56°C

Save $1,544.00
BaldorSKU: CDPT3440

Price:
Sale price$2,316.00 Regular price$3,860.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

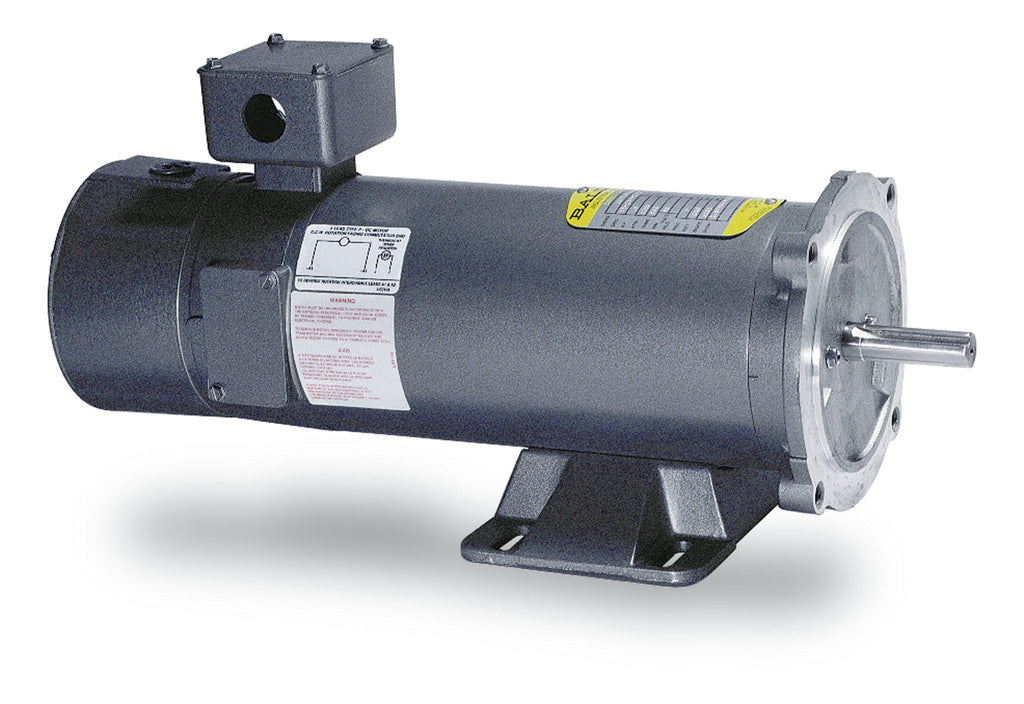

Baldor CDPT3440 - .75 HP General Purpose DC Motor

Discover the reliability and performance of the Baldor CDPT3440, a .75 HP, 1750 RPM General Purpose DC Motor designed for a variety of applications. This motor features a robust TEFC (Totally Enclosed Fan Cooled) design, ensuring durability and protection against harsh environments. With a 56C frame and a 3428P configuration, it is engineered for efficiency and longevity.

Key Specifications:

  • Power: .75 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 56C
  • Enclosure: TEFC
  • Product Code: CDPT3440

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CDPT3440 to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568175798
Supplier Part Number CDPT3440
Category DC Motors
Subcategory General Purpose DC Motors
Product Family General Purpose
Agency Approvals CE, CSA, UKCA, UR, WEEE
Ambient Temperature 40 °C
Approximate Weight (lbs) 44.0
Armature Current 7.6 a
Armature Inertia 10.926 lb-ft2
Armature Voltage 90 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device TACHOMETER
Frame 56C
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 0.75 hp
Overall Length 16.64 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
