Baldor CDPSWD3545 - 1 HP, 1750RPM, DC, 56C, 3536P, TEFC, F1 1 HP 56°C

Save $1,279.60
BaldorSKU: CDPSWD3545

Price:
Sale price$1,919.40 Regular price$3,199.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

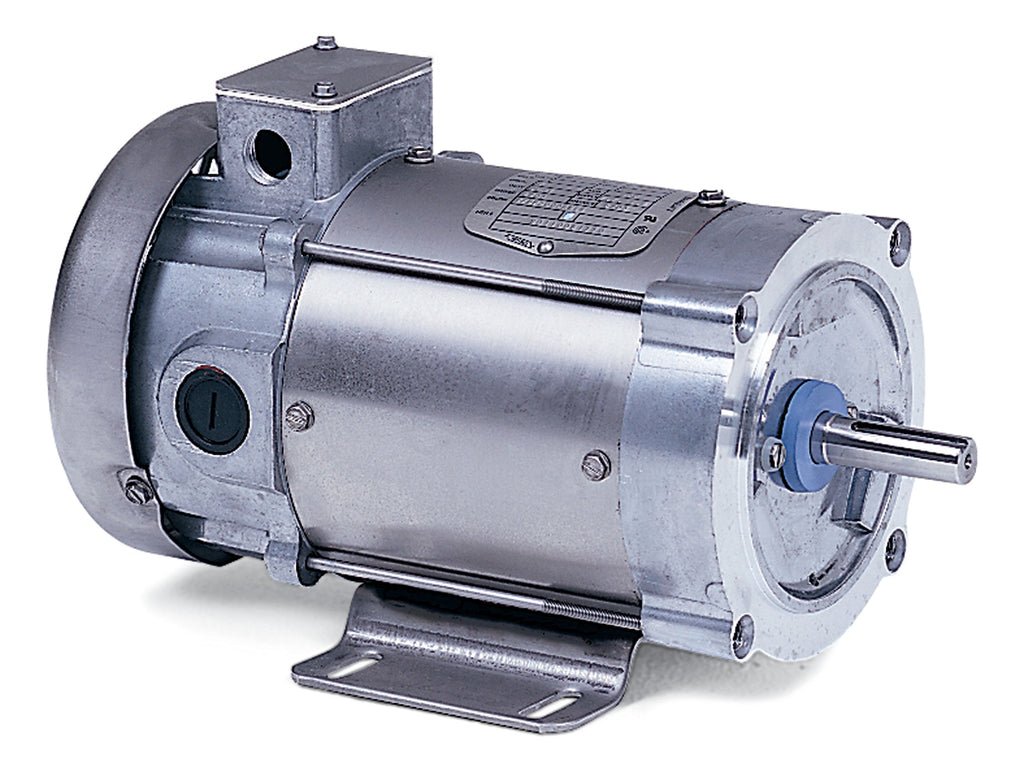

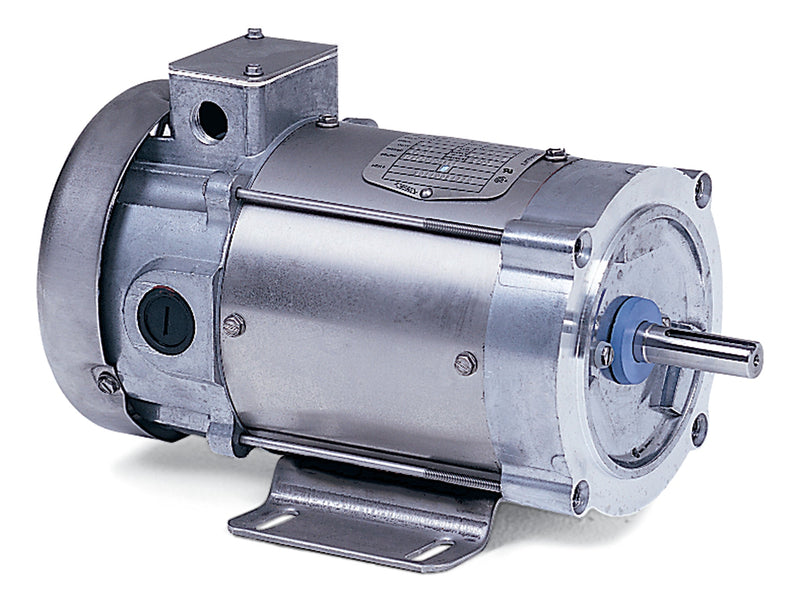

Baldor CDPSWD3545 - 1 HP General Purpose DC Motor

The Baldor CDPSWD3545 is a high-performance 1 HP General Purpose DC Motor designed for a variety of applications. Operating at 1750 RPM, this durable motor features a 56C frame and is built with a Totally Enclosed Fan Cooled (TEFC) design, ensuring reliable performance in demanding environments.

With its robust construction and efficient operation, the Baldor CDPSWD3545 is ideal for use in pump systems and other industrial applications. This motor is part of the Baldor-Reliance Motors & Drives line, known for its quality and reliability.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

Product Specifications:

  • Product Code: CDPSWD3545
  • Type: General Purpose DC Motor
  • Power: 1 HP
  • Speed: 1750 RPM
  • Frame: 56C
  • Design: TEFC (Totally Enclosed Fan Cooled)
  • SKU: CDPSWD3545

Choose the Baldor CDPSWD3545 for reliable and efficient motor performance in your applications!

UPC 781568220610
Supplier Part Number CDPSWD3545
Category DC Motors
Subcategory General Purpose DC Motors
Product Family Wash Down Paint Free
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 61.0
Armature Current 9.6 a
Armature Inertia 30.342 lb-ft2
Armature Voltage 90 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Stainless Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 1 hp
Overall Length 16.30 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
