Baldor CDPSWD3426 - .5 HP, 1750RPM, DC, 56C, 3428P, TEFC, F1 5 HP 56°C

Save $866.00
BaldorSKU: CDPSWD3426

Price:
Sale price$1,299.00 Regular price$2,165.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

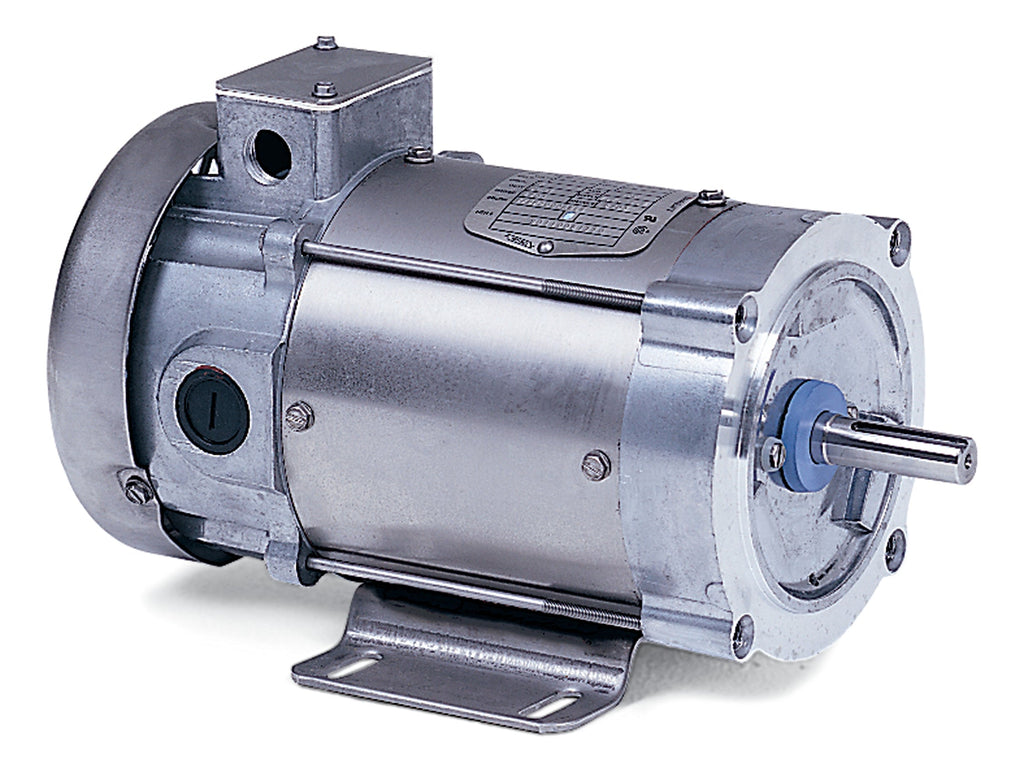

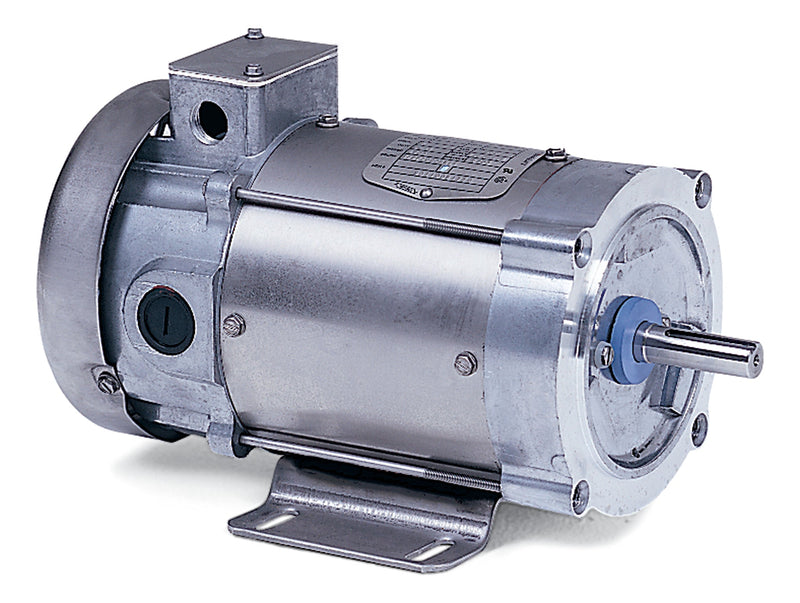

Baldor CDPSWD3426 - .5 HP General Purpose DC Motor

Discover the reliability and performance of the Baldor CDPSWD3426, a .5 HP General Purpose DC Motor designed for a variety of applications. With a speed of 1750 RPM, this motor is perfect for those seeking efficiency and durability in their operations.

  • Power: .5 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 56C
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CDPSWD3426

This motor is ideal for various applications, providing consistent performance and reliability. At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right solution for your needs.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches. If you have any questions or need assistance in finding the right item, please don't hesitate to call us at (781) 281-8905.

UPC 781568215777
Supplier Part Number CDPSWD3426
Category DC Motors
Subcategory General Purpose DC Motors
Product Family Wash Down Paint Free
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 38.0
Armature Current 2.5 a
Armature Inertia 10.926 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Stainless Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 2 @ 14 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 0.5 hp
Overall Length 13.66 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger

Motor Curves
