Baldor CDP3445-V24 - 1 HP, 1800RPM, DC, 56C, 3435P, TEFC, F3, N 1 HP 56°C

Save $1,192.00
BaldorSKU: CDP3445-V24

Price:
Sale price$1,788.00 Regular price$2,980.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

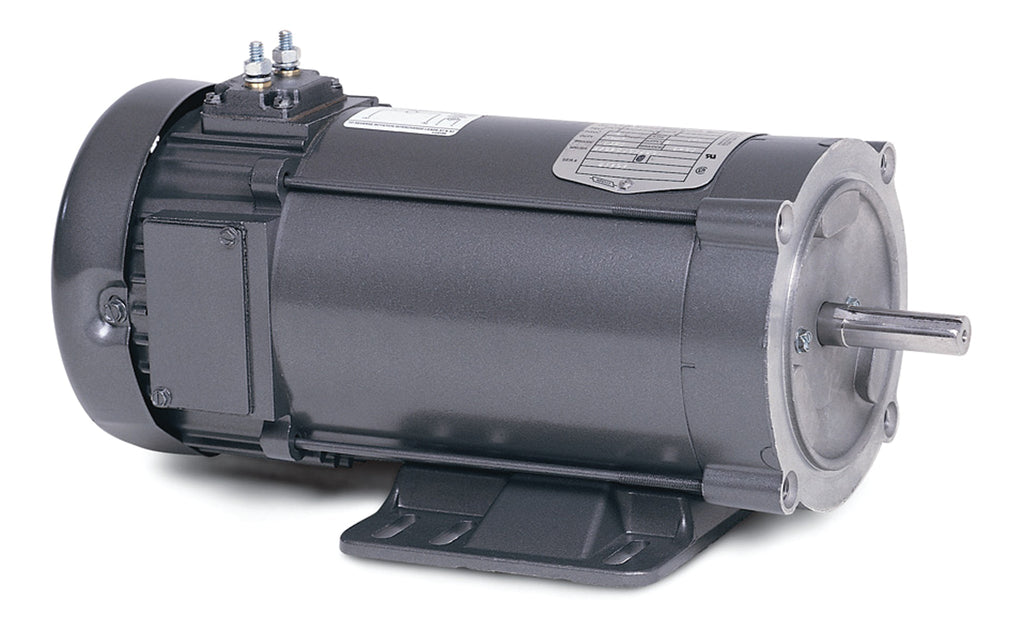

Baldor CDP3445-V24 - 1 HP General Purpose DC Motor

The Baldor CDP3445-V24 is a high-performance 1 HP, 1800 RPM General Purpose DC Motor designed for a variety of applications. This durable motor features a Totally Enclosed Fan Cooled (TEFC) design, ensuring reliable operation in demanding environments. With a 56C frame and a 3435P configuration, this motor is built to deliver consistent performance and efficiency.

Key Features:

  • Power: 1 HP
  • Speed: 1800 RPM
  • Type: DC Motor
  • Frame Size: 56C
  • Design: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CDP3445-V24

At Pump-Stop, we are your preferred source for replacement pumps and parts, ensuring you find the right components for your needs. If you have questions or need assistance locating the correct pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CDP3445-V24 to ensure compatibility. Don't hesitate to reach out if you need help finding the right item!

UPC 781568392201
Supplier Part Number CDP3445-V24
Category DC Motors
Subcategory General Purpose DC Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 43.0
Armature Current 40.9 a
Armature Inertia 12.052 lb-ft2
Armature Voltage 24 V
Base Indicator Rigid
Base Speed 1,800 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit SPECIAL (OLD)
Motor Lead Quantity/Wire Size 2 @ 10 AWG
Motor Lead Termination Ring Terminals
Motor Standards NEMA
Mounting Arrangement F3
Output Power 1 hp
Overall Length 15.89 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
