Baldor CDP3430-V12 - .5 HP, 1800RPM, DC, 56C, 3420P, Tenv, 12V 5 HP 56°C

Save $576.80
BaldorSKU: CDP3430-V12

Price:
Sale price$865.20 Regular price$1,442.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

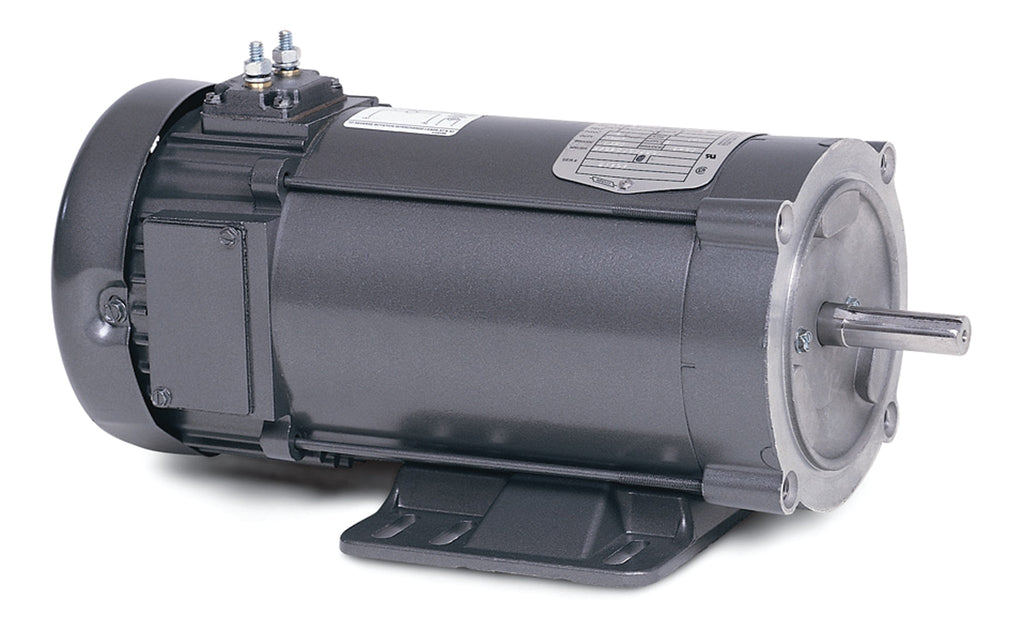

Baldor CDP3430-V12 General Purpose DC Motor

Upgrade your equipment with the Baldor CDP3430-V12, a reliable and efficient 0.5 HP General Purpose DC Motor. Operating at 1800 RPM, this motor is designed for versatility and performance in various applications. With a 12V power supply and a 56C frame, it is perfect for those seeking a dependable motor for their projects.

Key Features:

  • Power: 0.5 HP
  • Speed: 1800 RPM
  • Type: DC Motor
  • Frame Size: 56C
  • Enclosure: TENV (Totally Enclosed Non-Ventilated)
  • Product Code: CDP3430-V12

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CDP3430-V12 to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568387726
Supplier Part Number CDP3430-V12
Category DC Motors
Subcategory General Purpose DC Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 37.0
Armature Current 40.0 a
Armature Inertia 6.887 lb-ft2
Armature Voltage 12 V
Base Indicator Rigid
Base Speed 1,800 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TENV
Feedback Device NO FEEDBACK
Frame 56C
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit SPECIAL (OLD)
Motor Lead Quantity/Wire Size 2 @ 10 AWG
Motor Lead Termination Ring Terminals
Motor Standards NEMA
Mounting Arrangement F3
Output Power 0.5 hp
Overall Length 12.10 IN
Pulley End Bearing Type Sealed Bearing
Service Factor 1
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger

Motor Curves
