Baldor CD7503 - 3 HP, 1750RPM, DC, 215C, 3668D, TEFC, F1, N 3 HP 215°C

Save $3,416.40
BaldorSKU: CD7503

Price:
Sale price$5,124.60 Regular price$8,541.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

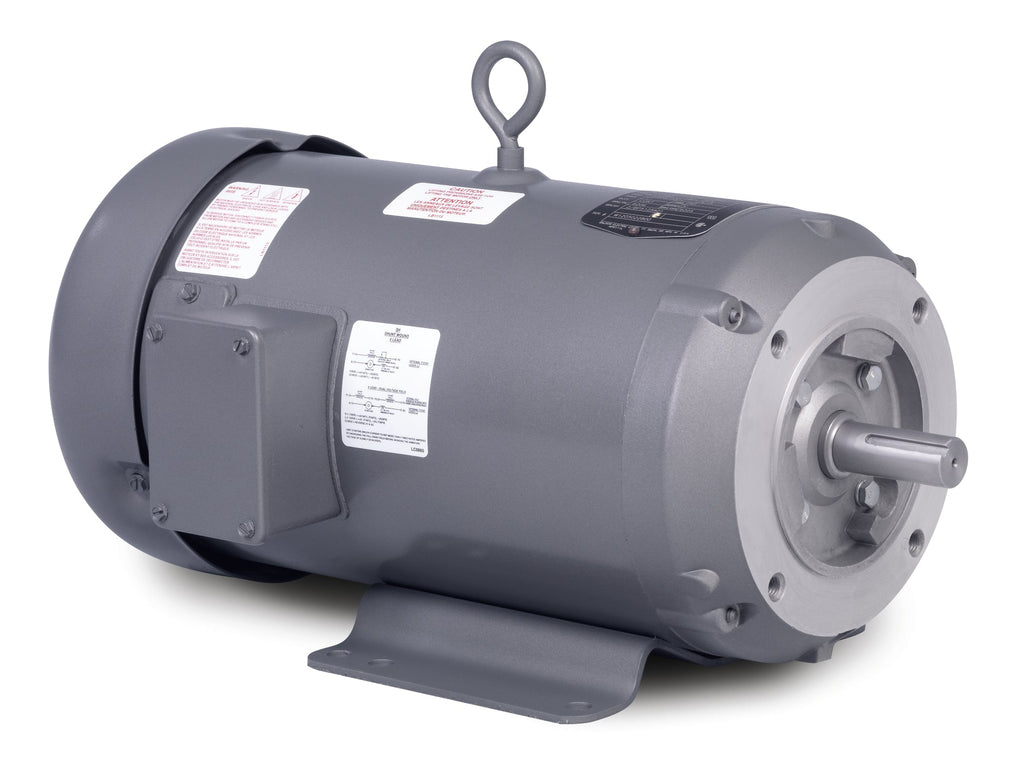

Baldor CD7503 - 3 HP DC Motor

Upgrade your pumping system with the Baldor CD7503, a high-performance 3 HP DC motor designed for reliability and efficiency. Operating at 1750 RPM, this motor is perfect for a variety of applications requiring fractional horsepower. With a robust design featuring a TEFC (Totally Enclosed Fan Cooled) enclosure, it ensures optimal performance even in challenging environments.

Key Features:

  • Power: 3 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Temperature Rating: 215°C
  • Frame Size: 215C
  • Model: 3668D
  • Enclosure: TEFC
  • Mounting: F1
  • SKU: CD7503

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CD7503 to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

UPC 781568124857
Supplier Part Number CD7503
Category DC Motors
Subcategory Fractional HP Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 137.0
Armature Current 14.7 a
Armature Inertia 57.312 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Field Voltage 200 V, 100 V
Field Winding Type SHUNT
Frame 215C
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 18 AWG, 2 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 3 hp
Overall Length 22.54 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1
Shaft Diameter 1.125 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
