Baldor CD6219 - 1 HP, 1750RPM, DC, 184C, 3623D, TEFC, F1 1 HP 184°C

Save $1,382.40
BaldorSKU: CD6219

Price:
Sale price$2,073.60 Regular price$3,456.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

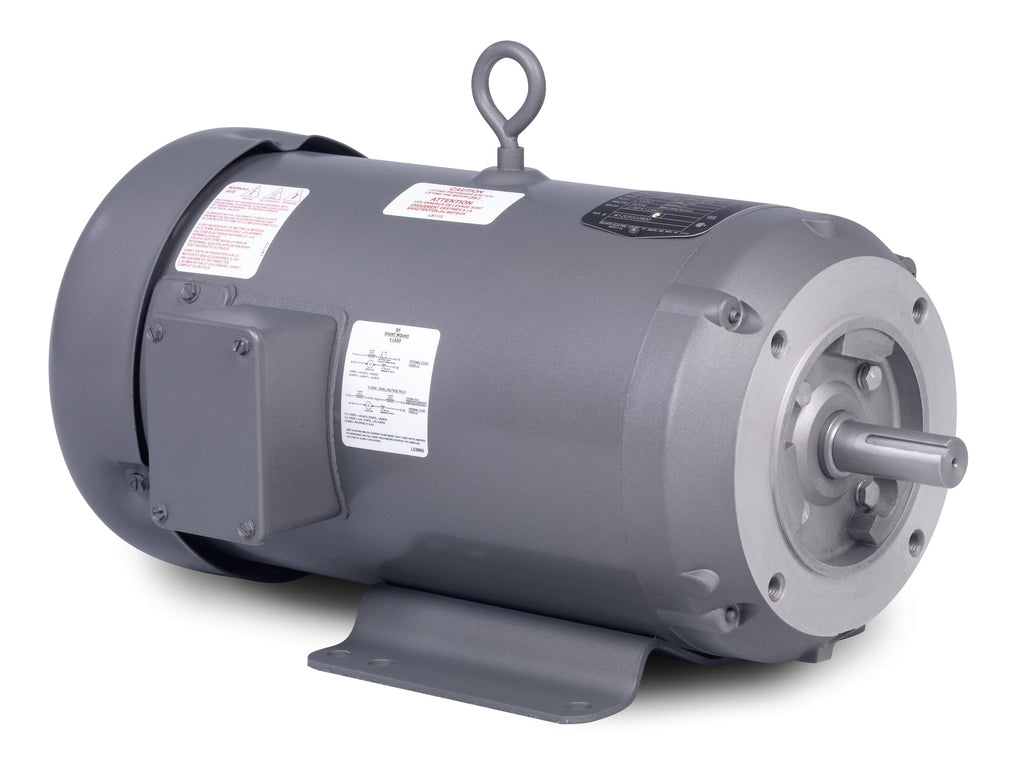

Baldor CD6219 - 1 HP DC Motor

The Baldor CD6219 is a high-performance fractional horsepower motor designed for reliable operation in various applications. With a power rating of 1 HP and a speed of 1750 RPM, this DC motor is ideal for driving pumps and other machinery that require consistent performance.

Key Features:

  • Power: 1 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 184C
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Service Factor: 1.0
  • Product Code: CD6219

This Baldor-Reliance motor is built to withstand demanding environments, making it a reliable choice for your pumping needs. At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Baldor CD6219. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

UPC 781568124796
Supplier Part Number CD6219
Category DC Motors
Subcategory Fractional HP Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 64.0
Armature Current 9.6 a
Armature Inertia 19.385 lb-ft2
Armature Voltage 90 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Field Voltage 50 V, 100 V
Field Winding Type SHUNT
Frame 184C
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 18 AWG, 2 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 1 hp
Overall Length 15.63 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger
