Baldor CD6218 - 1 HP, 1750RPM, DC, 184C, 3623D, TEFC, F1 1 HP 184°C

Save $1,382.40
BaldorSKU: CD6218

Price:
Sale price$2,073.60 Regular price$3,456.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

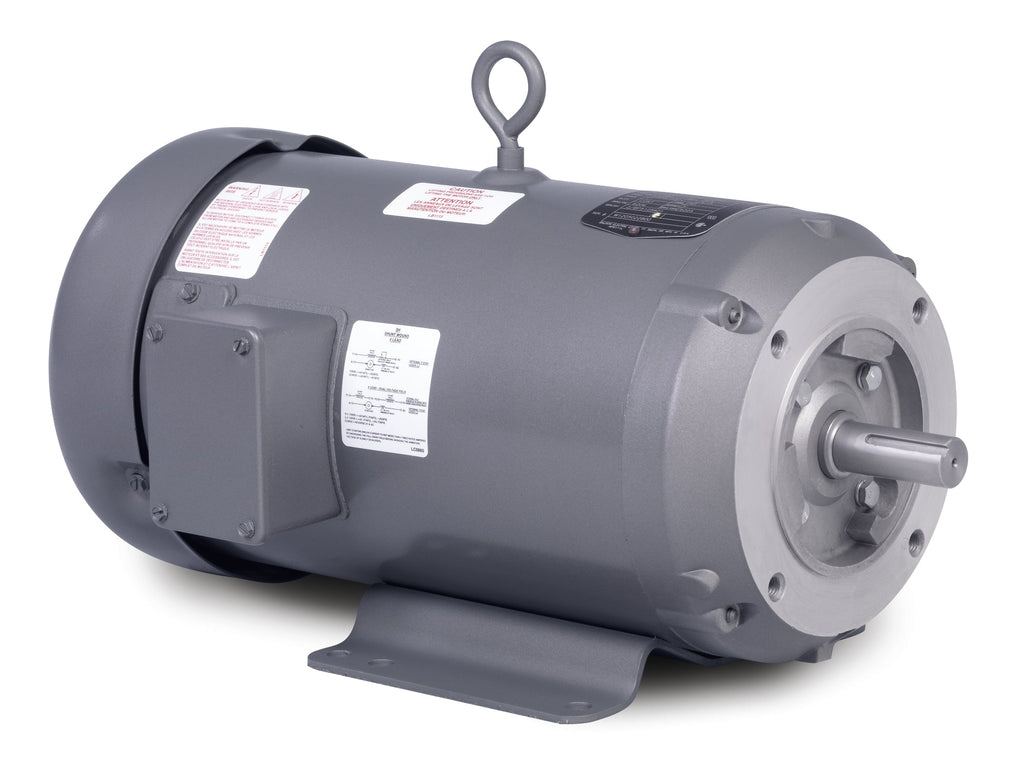

Baldor CD6218 - 1 HP DC Motor

The Baldor CD6218 is a high-performance 1 HP DC motor designed for reliable operation in various applications. With a speed of 1750 RPM, this motor is ideal for fractional horsepower needs, ensuring efficient performance and durability.

Key Features:

  • Power: 1 HP
  • Speed: 1750 RPM
  • Type: DC Motor
  • Frame Size: 184C
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Product Code: CD6218

This Baldor-Reliance motor is perfect for applications requiring a robust and efficient power source. As a trusted name in the industry, Baldor ensures that this motor meets high standards of quality and performance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches the Baldor CD6218. If you encounter any difficulties, our team is here to help you find the right item.

UPC 781568124802
Supplier Part Number CD6218
Category DC Motors
Subcategory Fractional HP Motors
Product Family General Purpose
Agency Approvals CSA, UR
Ambient Temperature 40 °C
Approximate Weight (lbs) 65.0
Armature Current 5.0 a
Armature Inertia 19.385 lb-ft2
Armature Voltage 180 V
Base Indicator Rigid
Base Speed 1,750 rpm
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Enclosure TEFC
Feedback Device NO FEEDBACK
Field Voltage 200 V, 100 V
Field Winding Type SHUNT
Frame 184C
Frame Material Steel
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 4 @ 18 AWG, 2 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Mounting Arrangement F1
Output Power 1 hp
Overall Length 15.63 IN
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS NON-COMPLIANT
Service Factor 1
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator No Slinger

Motor Curves
