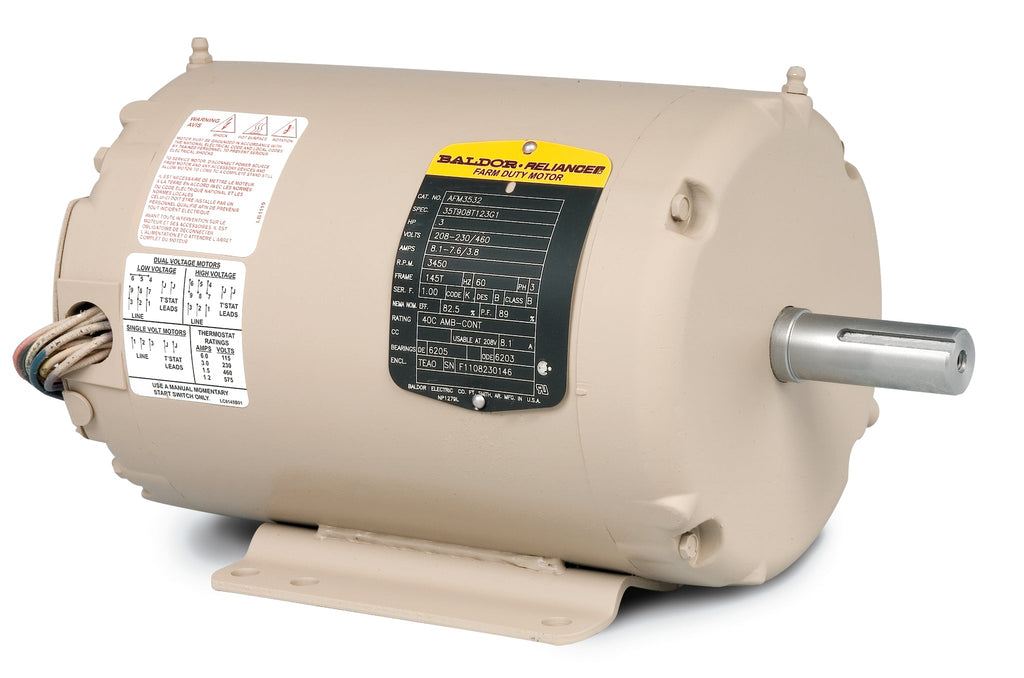

UPC
781568121368
Supplier Part Number
AFM3530
Category
AC Motors
Subcategory
Application Specific Motors
Product Family
General Purpose
Agency Approvals
UR, CSA
Ambient Temperature
40 °C
Approximate Weight (lbs)
30.0
Auxillary Box
No Auxillary Box
Auxillary Box Lead Termination
None
Base Indicator
Rigid
Bearing Grease Type
Polyrex EM (-20F +300F)
Blower
None
Catalog Number
AFM3530
Current @ Voltage
2.300 A @ 460.0 V, 4.600 A @ 230.0 V, 4.900 A @ 208.0 V
Design Code
B
Drip Cover
No Drip Cover
Duty Rating
CONT
Efficiency @ 100% Load
80.0 %
Electrically Isolated Bearing
Not Electrically Isolated
Enclosure
TEAO
Feedback Device
NO FEEDBACK
Frame
143TZ
Frame Material
Steel
Frequency
60.00 Hz
Front Face Code
Standard
Front Shaft Indicator
None
Haz Area Class and Group
NONE
Haz Area Division
Not Applicable
Heater Indicator
No Heater
High Voltage Full Load Amps
2.3 a
Insulation Class
B
Inverter Code
Not Inverter
KVA Code
L
Lifting Lugs
No Lifting Lugs
Locked Bearing Indicator
No Locked Bearing
Motor Lead Exit
Terminal Panel
Motor Lead Quantity/Wire Size
9 @ 18 AWG
Motor Lead Termination
Flying Leads
Motor Letter Type
Three Phase
Motor Standards
NEMA
Motor Type
3424M
Mounting Arrangement
F1
Number of Poles
2
Output
1.500 hp
Output @ Frequency
1.500 HP @ 60 HZ
Overall Length
12.45 IN
Phase
3
Power Factor
74
Product Type
FARM DUTY
Pulley End Bearing Type
Ball
Pulley Face Code
Standard
Pulley Shaft Indicator
Tapped & Key
Rodent Screen
None
RoHS Status
ROHS COMPLIANT
Service Factor
1.15
Shaft Diameter
0.875 IN
Shaft Extension Location
Pulley End
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
No Slinger
Speed
3450 rpm
Speed Code
Single Speed
Starting Method
Direct on line
Synchronous Speed
3,600 rpm
Synchronous Speed @ Frequency
3600 RPM @ 60 HZ
Thermal Device - Bearing
None
Thermal Device - Winding
Normally Closed Thermostat
Vibration Sensor Indicator
No Vibration Sensor
Voltage
208 V, 230 V, 460 V
Voltage @ Frequency
208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
Winding Thermal 1
None
Winding Thermal 2
None
