Baldor AEM4103-4 - 25 HP, 1770RPM, 3 Phase, 60HZ, 324U, 1056M, TEFC, F1 60HZ Three Phase 25 HP 1056 M Cable

Save $5,648.80
BaldorSKU: AEM4103-4

Price:
Sale price$8,473.20 Regular price$14,122.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

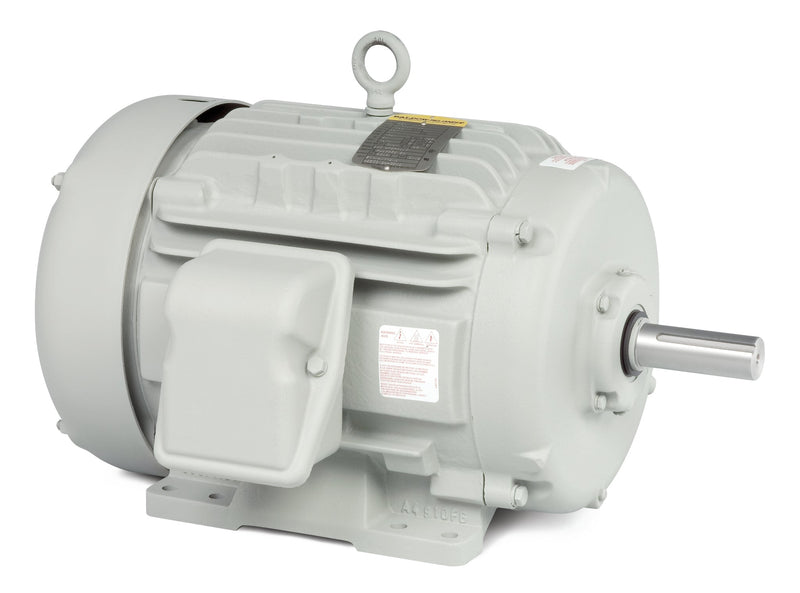

Baldor AEM4103-4 Automotive Duty Motor

Experience reliable performance with the Baldor AEM4103-4, a powerful 25 HP automotive duty motor designed for demanding applications. Operating at 1770 RPM and featuring a robust 3-phase design, this motor is optimized for 60Hz environments, making it an ideal choice for various industrial and automotive tasks.

Specifications:

  • Power: 25 HP
  • Speed: 1770 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Frame Size: 324U
  • Motor Design: 1056M
  • Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: F1

This Baldor-Reliance motor is built to withstand the rigors of automotive applications, ensuring durability and efficiency. Whether you are replacing an existing motor or upgrading your equipment, the AEM4103-4 is a dependable choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

UPC 781568117033
Supplier Part Number AEM4103-4
Category AC Motors
Subcategory Automotive Duty Motors
Product Family Automotive (Not For DC)
Agency Approvals UR, CSA
Ambient Temperature 65 °C
Approximate Weight (lbs) 490.0
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Catalog Number AEM4103-4
Current @ Voltage 30.000 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.6 %
Electrically Isolated Bearing Not Electrically Isolated
Enclosure TEFC
Feedback Device NO FEEDBACK
Frame 324U
Frame Material Cast Iron
Frequency 60.00 Hz
Front Face Code Standard
Front Shaft Indicator None
Haz Area Class and Group NONE
Haz Area Division Not Applicable
Heater Indicator No Heater
High Voltage Full Load Amps 30.0 a
Insulation Class F
Inverter Code Inverter Duty
KVA Code F
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size 3 @ 10 AWG
Motor Lead Termination Ring Terminals
Motor Letter Type Three Phase
Motor Standards NEMA
Motor Type 1056M
Mounting Arrangement F1
Number of Poles 4
Output 25.000 hp
Output @ Frequency 25.000 HP @ 60 HZ
Overall Length 30.56 IN
Phase 3
Power Factor 85
Pulley End Bearing Type Ball
Pulley Face Code Standard
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1
Shaft Diameter 1.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1770 rpm
Speed Code Single Speed
Starting Method Direct on line
Synchronous Speed 1,800 rpm
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Voltage 460 V
Voltage @ Frequency 460.0 V @ 60 HZ
Winding Thermal 1 None
Winding Thermal 2 None

Motor Curves
