Aquamatic VAVF-0000-90000 – 2″ Female NPT – Normally Open – 425 A Body 425A Cast Iron Nitrile Stainless Steel Brass Industrial Use

AqMaticSKU: 1072482

Price:
Sale price$483.34
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

AquaMatic VAV Air Valves:

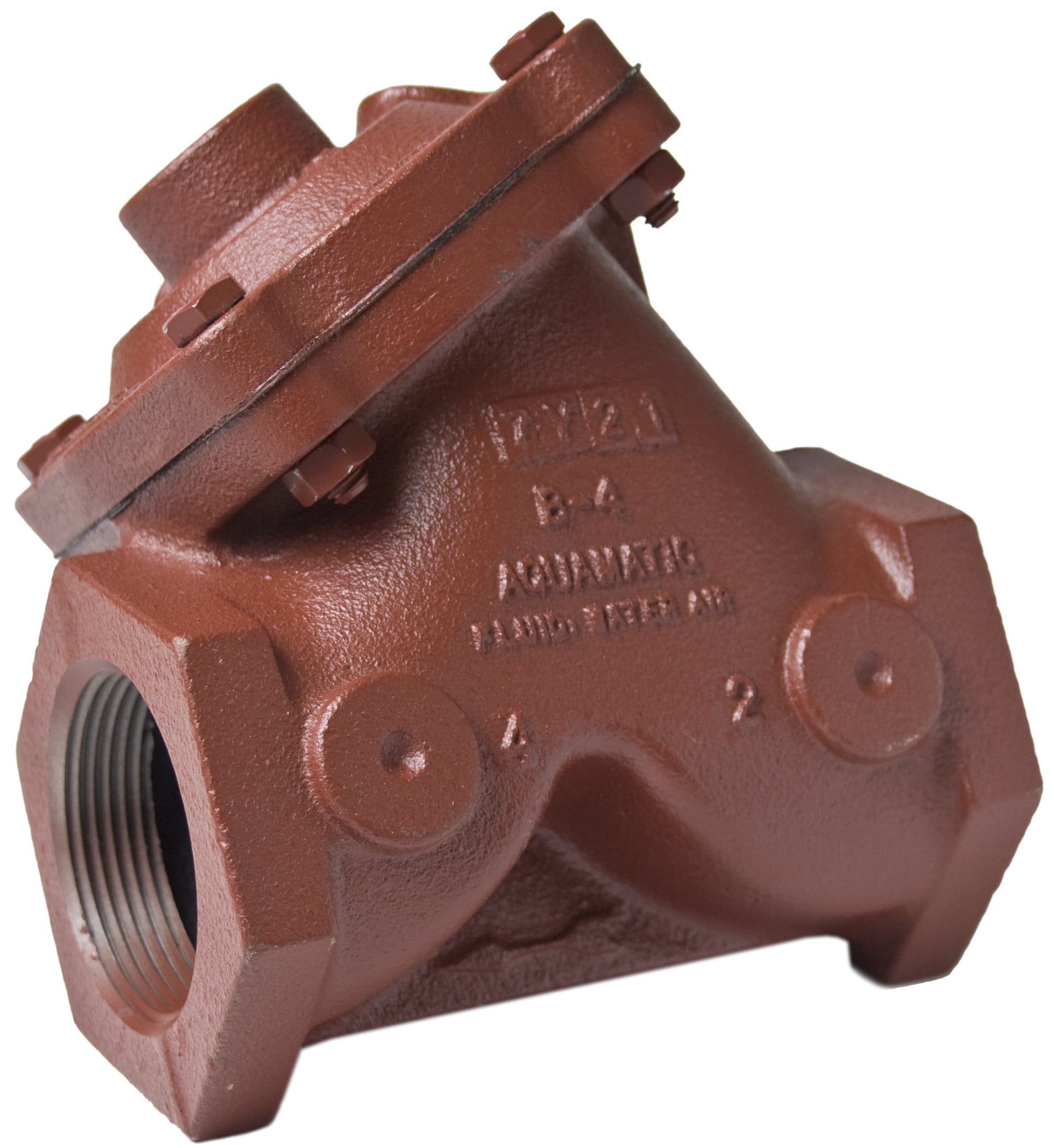

AquaMatic VAVF-0000-90000 – 2″ Female NPT – Normally Open – 425 A Body

Product SKU: 1072482

The AquaMatic VAVF-0000-90000 is a 2-inch, normally open air valve engineered for high-cycle applications. Featuring a cast iron body with female NPT connections, this valve ensures reliable performance in demanding industrial environments. AquaMatic Series VAV Air Valves – Standard valves are normally open. Body and cap are of cast iron. Preformed stress-relieved diaphragm of nitrile (Buna N) on nylon, and static seals are FKM and Hycar, stainless steel and brass internal parts. Pipe sizes are 3/4- to 3-inch threaded (NPT or BSP) ; 3- to 4-inch flanged drilled in accordance with ASA16.1 class 125, or BSP4504.

  • Low Pressure Loss –Y-pattern diaphragm valve features a large seat opening and high lift-disc for higher flow rates at a lower pressure loss than other comparable valves.
  • Cost-Effective Design –In initial cost as well as lifetime maintenance expenses.
  • Durable – Cast iron, brass, stainless steel and nitrile elastomer components, giving an unparalleled service life of 3 years or longer depending on the application’s environment.
  • Positive Control – Separate valve flow and control chambers permits positive sealing without springs. The optional spring-assist open feature is available for low pressure and self draining applications.
  • Long Diaphragm Life – Separate diaphragm chambers protects the diaphragm from the flow stream, while allowing the valve to be serviced in-line.
Supplier Part Number 1072482
Category VAV Air Valves
Subcategory VAV F - 2" 425-A Body
Approximate Weight (lbs) 15
Model 425
Model/Part Number VAVF-0000-90000
Pipe Connection Female NPT
Pipe Length 6.62″
Pipe Size 2″
Seal/Diaphragm/Disk (kit suffix) FKM / Buna / Hycar (RA)
Valve Option Normally Open
