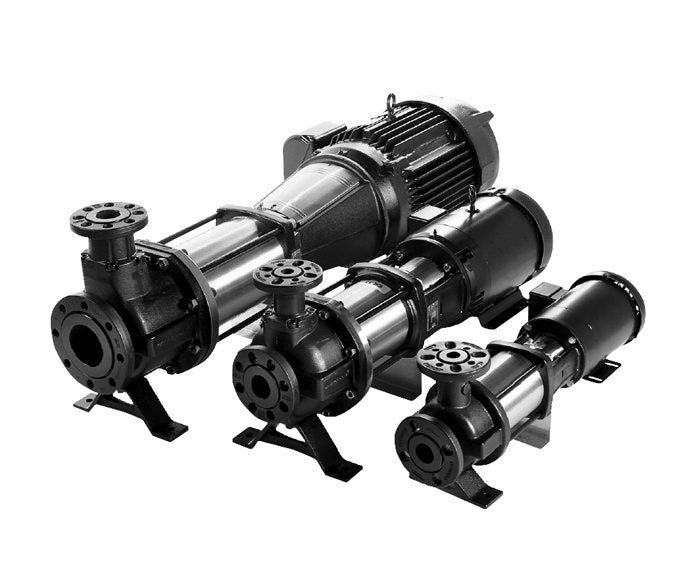

Name: Grundfos Pumps CR32-10 H-GB-A-V-HQQV 284/286TC 60 HZ Horizontal Multistage Centrifugal Pump END Only - PEO Model 97669037
Brand: Grundfos
SKU: 97669037
Availability: InStock

Image shown may not be actual product

Grundfos Pumps CR32-10 H-GB-A-V-HQQV 284/286TC 60 HZ Horizontal Multistage Centrifugal Pump END Only - PEO Model 97669037

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or find a replacement model.

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

CR 32-10 H-GB-A-V-HQQV · Inline multi stage pumps

CR 32-1060 HzStainless steel

The Grundfos 97669037 (CR 32-10 H-GB-A-V-HQQV) is a Inline multi stage pumps — Horizontal multistage end-suction pumps. Nominal performance: 136US gpm at 709.4ft.

Max Flow

136US gpm

Max Head

709.4ft

Max Pressure

435.11psi

Grundfos

World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945

Industrial Grade

Built and tested to IEC and NEMA standards

Authorized Distributor

Genuine Grundfos product — full manufacturer warranty coverage

Expert Support

Technical help available — call (781) 281-8905 or chat

gf-sh"
Why This Product

End-Suction Close-Coupled Design

Close-coupled end-suction design eliminates the flexible coupling, coupling guard, and separate bearing housing of frame-mounted designs — fewer components, smaller footprint, and lower maintenance requirements.

Back Pull-Out Serviceability

The rotating assembly (impeller, seal, and shaft) can be removed from the back of the pump without disturbing suction or discharge piping — significantly reducing labor time and cost for installed pumps.

Wide Performance Range from One Pump Family

Available in a wide range of impeller sizes and motor HP configurations — all sharing the same volute casing dimensions and piping connections. Hydraulic performance can be adjusted without changing the pump casing or re-piping.

Cast Iron and Stainless Options

Available in cast iron for standard water and HVAC applications, and stainless steel or bronze for corrosive and food-grade service. Select the material matched to your specific fluid chemistry.

Grundfos iSOLUTIONS Compatible

NBS-E and TP-E variants support Grundfos iSOLUTIONS monitoring and control — remote performance data, fault detection, and variable speed control via Grundfos GO or building management system integration.

Global Service Support

Grundfos is the world's largest pump manufacturer — supported by North American and global service networks with genuine spare parts, service engineers, and technical assistance.

Model Code Decoded — CR 32-10 H-GB-A-V-HQQV

Series: CR 32-10

Model Code: CR 32-10 H-GB-A-V-HQQV

Impeller Material: Stainless steel

Housing Material: Cast iron

Shaft Seal Code: HQQV

Flange Rating: PN 40

Material Code: A

Pipe Code: GB

Pump Code: H

Performance

Nominal Flow	136US gpm
Nominal Head	709.4ft
Max Operating Pressure	435.11psi
Max Fluid Temperature	194°F

Electrical Specifications

Frequency	60 Hz
Pump Speed	3525rpm

Connections

Inlet Connection	3inch
Outlet Connection	1 1/2inch
Pipe Pressure Rating	PN 40

Materials

Impeller Material	Stainless steel
Housing Material	Cast iron
Shaft Seal	HQQV

Product Identity

Model Number	97669037
Product Series	CR 32-10
Model Code	CR 32-10 H-GB-A-V-HQQV

Important Notices

Electrical	Requires correctly rated supply — , 60 Hz. Install with correctly rated circuit protection and motor starter.
Temperature limits	Do not exceed max fluid temperature 194°F. Operating outside these limits will damage seals and motor insulation.
Dry running	Do not run dry. CR 32-10 pumps use the pumped fluid to lubricate the shaft seal — dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance	Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance intervals. Contact PumpStop for documentation.

Documentation

✓ Installation and Operating Manual (IOM) — CR 32-10

✓ Product Data Sheet — CR 32-10 H-GB-A-V-HQQV

✓ Service Manual and Spare Parts List

Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.

Before You OrderConfirm model code, voltage, phase, and frequency match your installation requirements. For sizing help or spare parts guidance, chat or call (781) 281-8905.

EAN 5710620865518

Applications Chemical Delivery / Transfer, Filtration Systems, HVAC, Industrial Processes, Sprinkler / Irrigation, Washing / Cleaning Systems, Water Treatment
