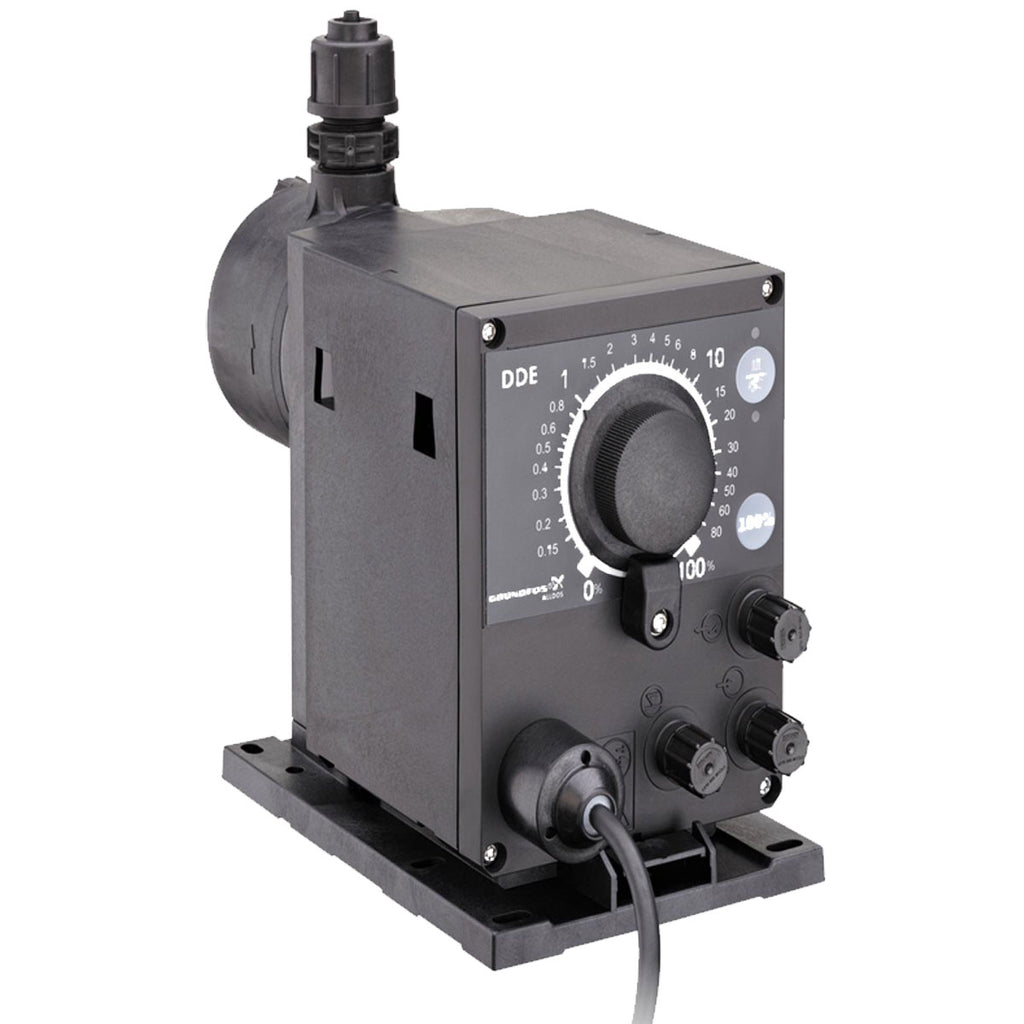

Grundfos 92837345 Smart Digital S DDE Series Stepper Motor-Driven Diaphragm Dosing Pump

This item ships free!
GrundfosSKU: 92837345

Price:
Sale price$1,120.24
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92837345 SMART Digital S DDE Series Stepper Motor-Driven Diaphragm Dosing Pump. Basic with Pulse Mode Control Variant, PVDF Head, FKM Gasket, Standard (Non Spring-Loaded) Valve with Ceramic Balls. 1/4", 3/8" & 1/2" Tubing Connections, 1Ph (Single Phase), 100-240 Volts, 50/60 Hz, USA/Canada Plug. 4 GPH (15 lph) Maximum Flow, 60 PSI (4 bar) Max Pressure.

EAN 5715120314306
Applications Boiler Feeds, Chemical Metering, Cooling Tower, Food & Beverage Services, Municipal Drinking Water, Pulp & Paper, Reverse Osmosis, Textile Industry, Washing / Cleaning Systems, Wastewater Treatment, Water Treatment
Connections_Discharge_Inches Hoses: 0.17\" ID x 1/4\" OD; 1/4\" ID x 3/8\" OD; 3/8\" ID x 1/2\" OD
Maximum operating pressure 60 PSI (4 bar)
Voltage 100-240

Motor Curves
