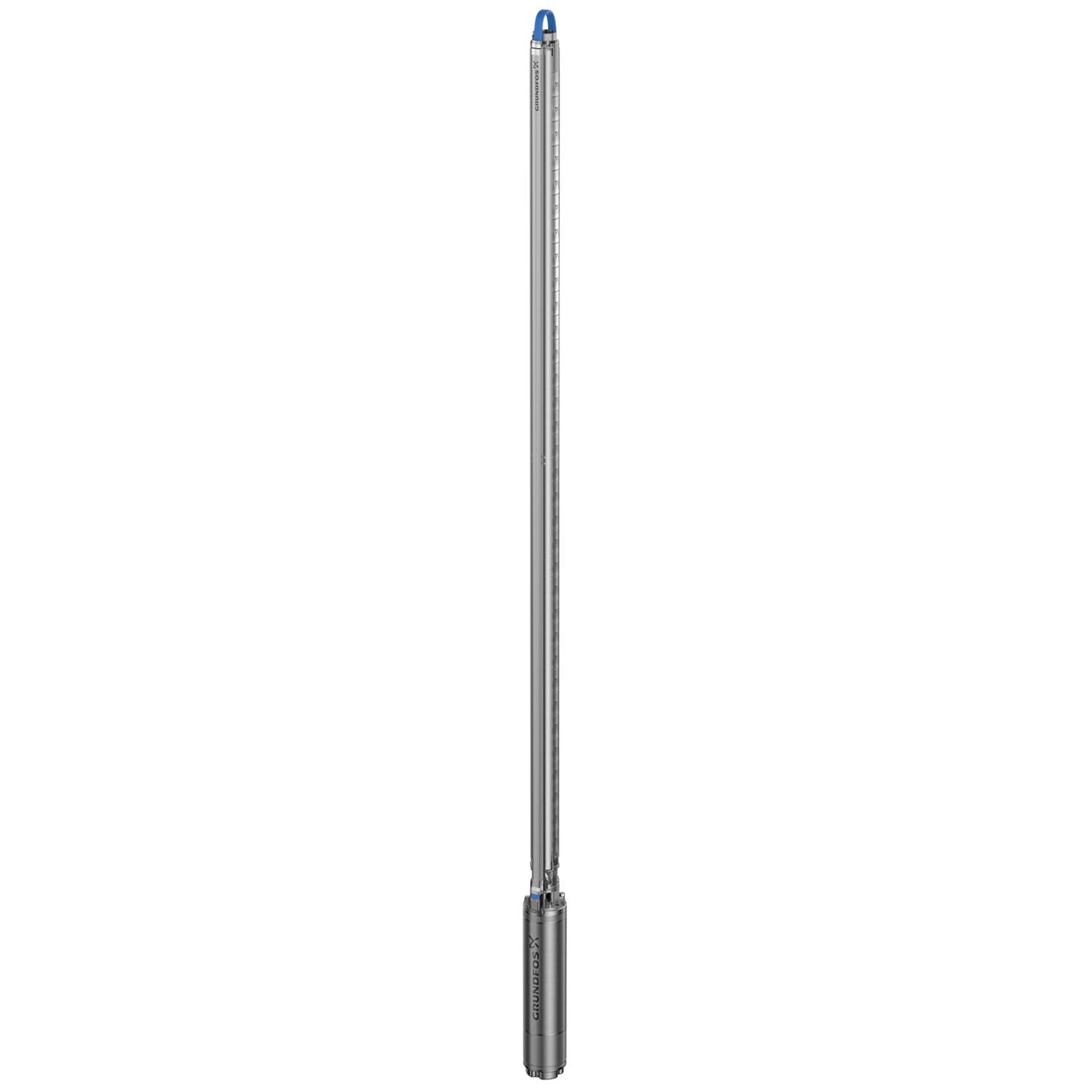

Grundfos 98924640 - 77S75-12
Grundfos 98924640 - 77S75-12
Grundfos 98924640 - 77S75-12
Grundfos 98924640 - 77S75-12
Grundfos 98924640 - 77S75-12
Grundfos 98924640 - 77S75-12

Grundfos 98924640 - 77S75-12

GRUNDFOSSKU: 98924640
Price:
$8,275.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

77S75-12 | Multi-stage submersible pump for raw water supply, groundwater lowering and pressure boosting. Thepump is suitable for pumping clean, thin, non-agressiveliquids without solid particles or fibers. horizontal and vertical installation. The pump is fitted with a built-in non-return valve. The motor is a 3-phase motor of the cannedtype with a sand shield, liquid-lubricated bearingsand pressure-equalizing diaphragm.

Approvals CULDWUS,CCSAUS
Approvals for drinking water PROP65
Built-in motor protection NONE
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Diameter 5.71 in
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) IP68
Frequency 60 Hz
Gross weight 181.0 lb
Impeller Stainless steel
Impellers NONE
Insulation F
Insulation class (IEC 85) F
IP Class IP68
KVA code J
Liquid max temp 104°F
Liquid temperature range 5 .. 104 °F
Maximum operating pressure 870.23 psi
Maximum outlet pressure 156.64 psi
Minimum borehole diameter 5.71 in
Model A
Motor Stainless steel
Motor diameter 6 inch
Motor flange design NEMA
Motor type MS6000
Motor version T40
n rpm F
Net weight 116.0 lb
Number of reduced-diameter impellers NONE
P2 kW 7.5 HP
Phase 3
Power (P2) required by pump 7.5 HP
Power factor 1 0.82-0.80-0.77
Pump 7.5 HP
Pump speed on which pump data are based 3450 rpm
Rated current 13.2-13.0-13.0 A
Rated flow 73.5 US gpm
Rated head 239.8 ft
Rated power - P2 7.5 HP
Rated speed 3470-3480-3490 rpm
Rated voltage 3 x 440-460-480 V
Return valve YES
Service factor 1.15
Shaft Product name:77S75-12
Shaft seal for motor SIC/SICNBR
Size of connection 2 inch
Stages 12
Start. 1 method direct-on-line
Starting current 490-520-550 %
Thermal protec external
Type MS6000
Type of connection NPT(F)
Valve YES
Version T40
Windings Enamelled

Motor Curves

Dimensional Drawing

DWiring Diagram
