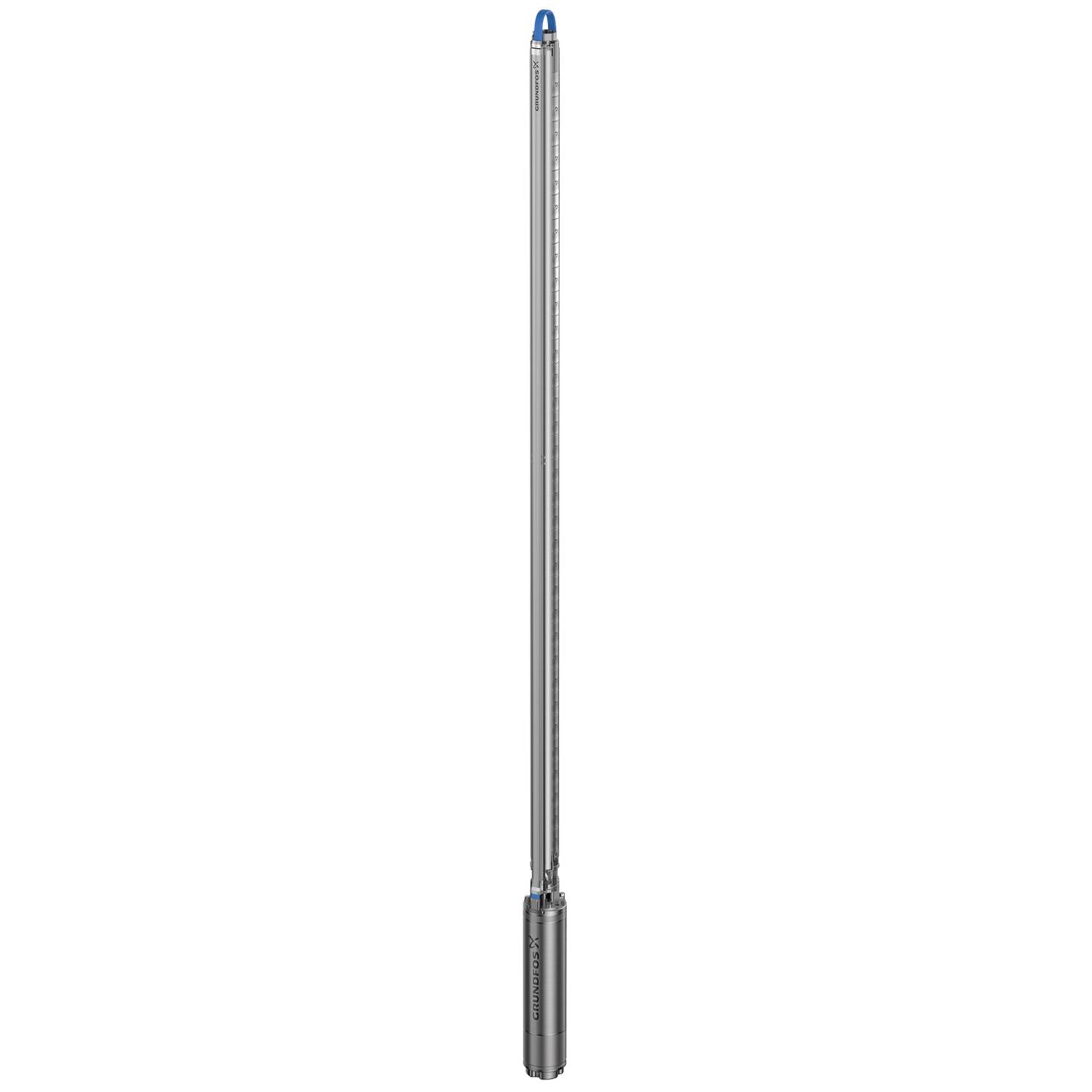

Grundfos 98924625 - 62S75-14
Grundfos 98924625 - 62S75-14
Grundfos 98924625 - 62S75-14
Grundfos 98924625 - 62S75-14
Grundfos 98924625 - 62S75-14
Grundfos 98924625 - 62S75-14

Grundfos 98924625 - 62S75-14

GRUNDFOSSKU: 98924625
Price:
$7,541.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98924625 - 62S75-14 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Maximum operating pressure 870.23 psi
Power factor 1 0.82-0.80-0.77
Type of connection NPT(F)
Rated voltage 3 x 440-460-480 V
Thermal protec external
KVA code J
Starting current 490-520-550 %
Liquid temperature range 5 .. 104 °F
Insulation class (IEC 85) F
Built-in motor protection NONE
Net weight 119.0 lb
Rated speed 3470-3480-3490 rpm
Gross weight 195.0 lb
Rated power - P2 7.5 HP
Size of connection 2 inch
Maximum outlet pressure 182.75 psi
Enclosure class (IEC 34-5) IP68
Power (P2) required by pump 7.5 HP
Shaft Product name:62S75-14
Rated current 13.2-13.0-13.0 A
Service factor 1.15
Windings Enamelled
Motor type MS6000
Motor diameter 6 inch
Minimum borehole diameter 5.71 in
Motor flange design NEMA
DOE Pump Energy Index CL 0.88
Pump speed on which pump data are based 3450 rpm
Stages 14
Shaft seal for motor SIC/SICNBR
Approvals CULDWUS,CCSAUS
Rated flow 57.7 US gpm
Model A
Version T40
Diameter 5.71 in
Motor Stainless steel
Approvals for drinking water PROP65
Return valve YES
Rated head 301.2 ft
Type MS6000
Curve tolerance ISO9906:2012 3B
Motor version T40
Impellers NONE
Valve YES
Connection 2 inch
Impeller Stainless steel
Number of reduced-diameter impellers NONE
Pump 7.5 HP

Motor Curves

Dimensional Drawing

DWiring Diagram
