Description

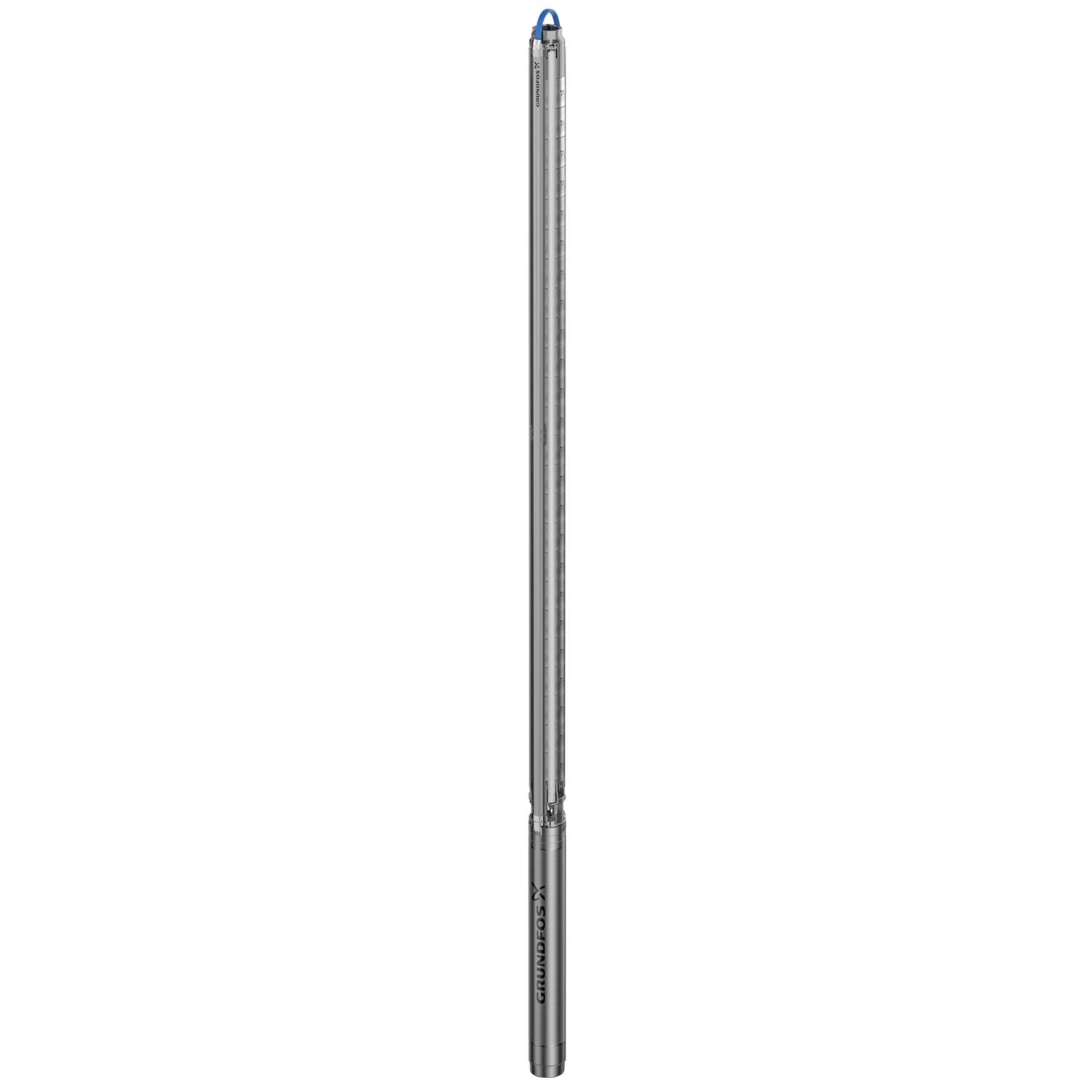

Grundfos 98924467 - 62S30-7 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Maximum operating pressure
870.23 psi
Power factor 1
0.85-0.75
Type of connection
NPT(F)
Rated voltage
3 x 208-230 V
KVA code
J
Starting current
480-520 %
Liquid temperature range
5 .. 104 °F
Insulation class (IEC 85)
F
Built-in motor protection
NONE
Net weight
55.1 lb
Rated speed
3415-3460 rpm
Gross weight
58.9 lb
Rated power - P2
3 HP
Size of connection
2 inch
Maximum outlet pressure
88.47 psi
Enclosure class (IEC 34-5)
IP68
Power (P2) required by pump
3 HP
Shaft
Product name:62S30-7
Rated current
11.9-11.6 A
Service factor
1.15
Windings
Enamelled
Motor type
MS4000
Motor diameter
4 inch
Minimum borehole diameter
4.13 in
Motor flange design
NEMA
DOE Pump Energy Index CL
0.88
Pump speed on which pump data are based
3450 rpm
Stages
7
Approvals
CULDWUS,CCSAUS
Rated flow
57.7 US gpm
Approvals for motor
CE,EAC,CSACE,EAC,CSA
Model
A
Version
T40
Diameter
4.13 in
Motor
Stainless steel
Approvals for drinking water
PROP65
Return valve
YES
Rated head
149 ft
Type
MS4000
Curve tolerance
ISO9906:2012 3B
Motor version
T40
Impellers
NONE
Valve
YES
Connection
2 inch
Impeller
Stainless steel
Number of reduced-diameter impellers
NONE
Pump
3 HP
