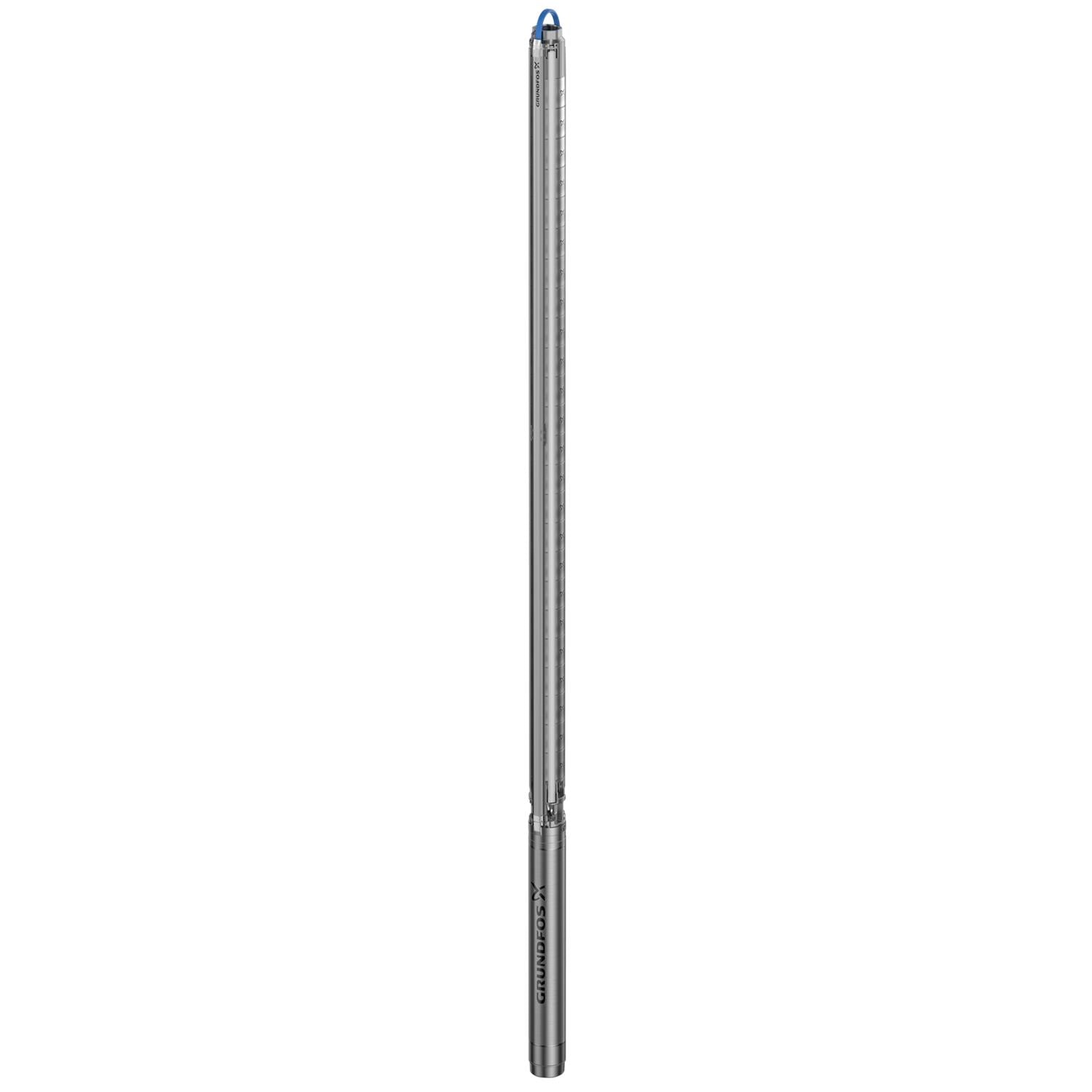

Grundfos 98924624 - 62S100-24
Grundfos 98924624 - 62S100-24
Grundfos 98924624 - 62S100-24
Grundfos 98924624 - 62S100-24
Grundfos 98924624 - 62S100-24
Grundfos 98924624 - 62S100-24

Grundfos 98924624 - 62S100-24

GRUNDFOSSKU: 98924624
Price:
$11,419.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98924624 - 62S100-24 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Maximum operating pressure 870.23 psi
Power factor 1 0.83-0.80
Type of connection NPT(F)
Rated voltage 3 x 440-460 V
KVA code J
Starting current 600-640 %
Liquid temperature range 5 .. 104 °F
Insulation class (IEC 85) F
Built-in motor protection NONE
Net weight 118.0 lb
Rated speed 3420-3460 rpm
Gross weight 201.0 lb
Rated power - P2 10 HP
Size of connection 2 inch
Maximum outlet pressure 307.48 psi
Enclosure class (IEC 34-5) IP68
Power (P2) required by pump 10 HP
Shaft Product name:62S100-24
Rated current 18.0-18.6 A
Service factor 1.15
Windings Enamelled
Motor type MS4000
Motor diameter 4 inch
Minimum borehole diameter 4.13 in
Motor flange design NEMA
DOE Pump Energy Index CL 0.88
Pump speed on which pump data are based 3450 rpm
Stages 24
Approvals CULDWUS,CCSAUS
Rated flow 57.7 US gpm
Approvals for motor CE,EAC,CSACE,EAC,CSA
Model A
Version T40
Diameter 4.13 in
Motor Stainless steel
Approvals for drinking water PROP65
Return valve YES
Rated head 518.4 ft
Type MS4000
Curve tolerance ISO9906:2012 3B
Motor version T40
Impellers NONE
Valve YES
Connection 2 inch
Impeller Stainless steel
Number of reduced-diameter impellers NONE
Pump 10 HP
