Description

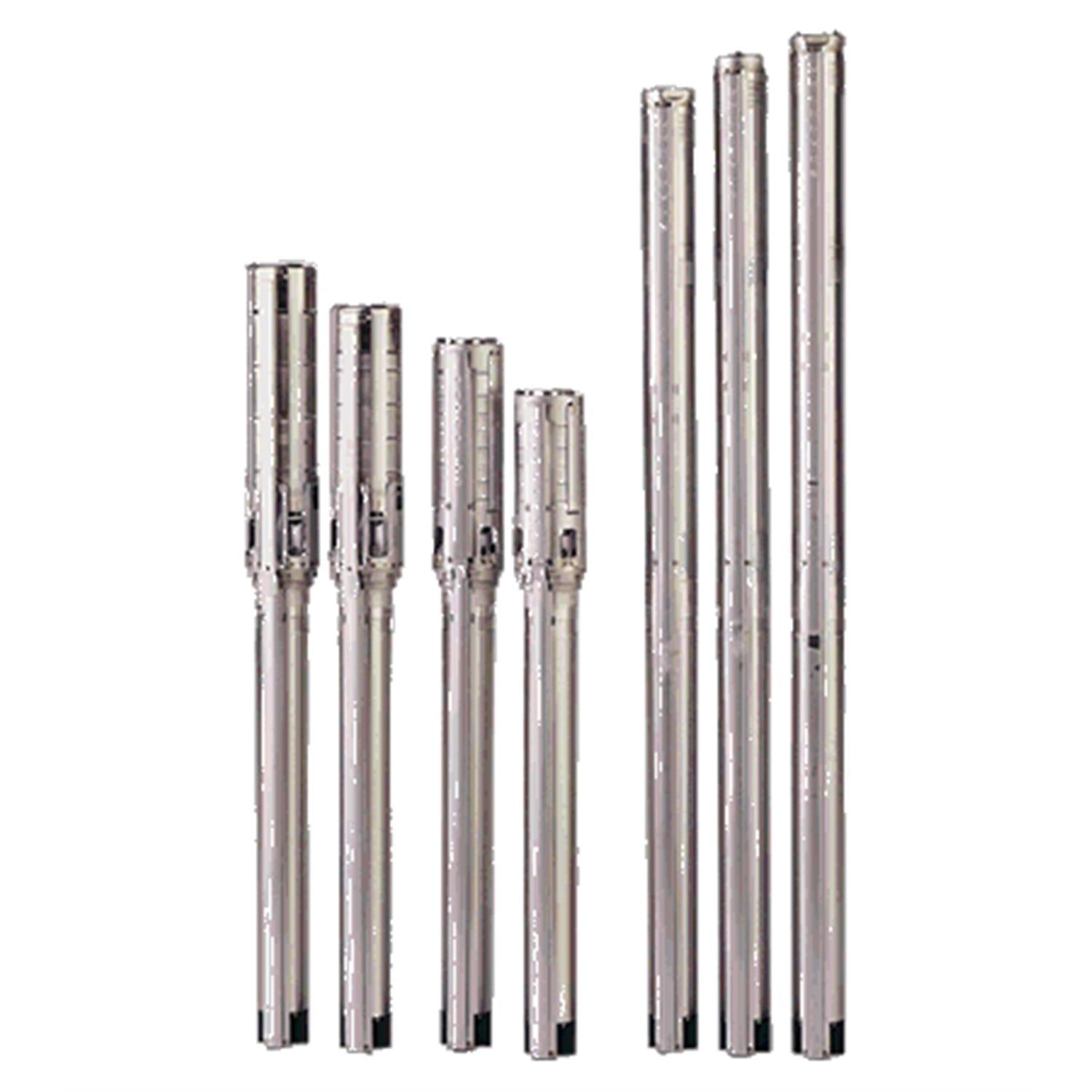

11 SQF-2 | The 3" SQFlex pump with helical rotor is for high heads and low flow rates. The SQFlex system is a reliable water supply system based on renewable energy sources, such as solar and wind energy. Thanks to its flexible energy supply and performance, the SQFlex system can be combined and adapted to meet any need on the installation site. The SQFlex system has a wide voltage range, built-in maximum power point tracking (MPPT) as well as dry-running, voltage and overload protection.
EAN
5700834791802
Applications
Solar Water Solutions
Approvals
CE
Built-in motor protection
Y
Density
62.29 lb/ft³
Diameter
2.99 in
Enclosure class (IEC 34-5)
IP68
Gross weight
22.0 lb
Impeller
DIN W.-Nr. 1.4301
Insulation class (IEC 85)
F
Length of cable
2 m
Material Pricing Group
17
Maximum ambient pressure
15 bar
Maximum liquid temperature
104 °F
Minimum borehole diameter
76 mm
Minimum efficiency index, MEI ≥
-.--
Motor type
MSF3
Net weight
18.1 lb
Power 1
1.4 kW
Power factor 1
1
Power input - P1
1.4 kW
Product family
SQFlex
Pump
Stainless steel
Pump No
95027416
Pump outlet
1 1/4" NPT
Pumped liquid
Water
Rated current
8.4 A
Rated speed
3600 rpm
Rated voltage ac
1 x 90-240 V
Rated voltage dc
30-300 V
Real Time
1 Available on 10/13/2023 Plant: Allentown Update with real time availability and Net price
Sales region
North America
Selected liquid temperature
68 °F
Stages
2
Start. method
direct-on-line
Thermal protec
internal
Type
MSF3
Valve
pump with built-in non-return valve
Motor Curves
