Description

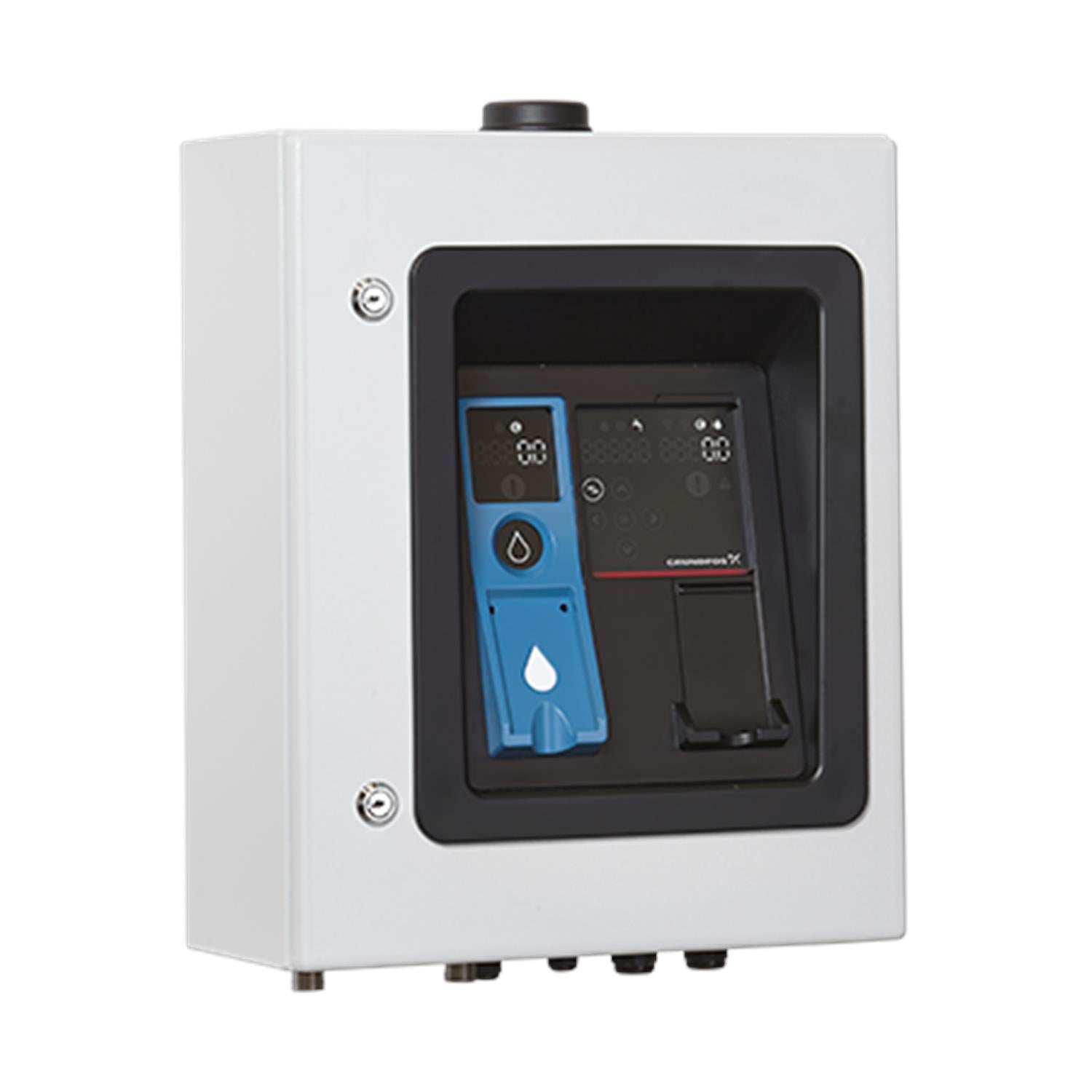

The Grundfos 98794194 (Water dispenser AQtap) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 110-240V, 1-Phase, 50 Hz. Applications include Municipal solar solutions, Controls and digital groundwater management, Solar controls and digital water management and more.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 98794194 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Voltage | 110-240V |
| Phase | 1-Phase |
| Frequency | 50 Hz |
| Protection Class (IP) | IP55 |
| Nominal Flow | 4.4US gpm |
| Max Operating Pressure | 58.02psi |
| Max Fluid Temperature | 104°F |
| Max Ambient Temperature | 122°F |
| Inlet Connection | 1/2inch |
| Outlet Connection | 1/2inch |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 110-240V, 1-Phase, 50 Hz. |
| Temperature limits | Do not exceed max fluid temperature 104°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5712601456791
- Connection
- 1/2 inch
- Enclosure class (IEC 34-5)
- IP55
- Gross weight
- 66.2 lb
- Liquid temperature range
- 32.2 .. 104 °F
- Mains frequency
- 50 Hz
- Material Pricing Group
- 2
- Max flow
- 2 m³/h
- Maximum permissible inlet pressure
- 4 bar
- Mount. design. acc. IEC 34-7
- Vertical
- Mounting option
- Vertical
- Net weight
- 50.7 lb
- Power 1
- 45 W
- Power input - P1
- 45 W
- Range of ambient temperature
- 33.8 .. 122 °F
- Rated flow
- 4.4 US gpm
- Rated voltage
- 1 x 110-240 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Relative humidity
- 0.95
- Size of inlet connection
- 1/2 inch
- Size of outlet connection
- 1/2 inch
- Type of inlet connection
- BSP
- Type of outlet connection
- BSP
Dimensional Drawing
AQtap water dispenser (Tapping guide)
AQtap water dispenser (Quick Guide)
AQtap Water Management System - Term and Conditions (Quick Guide)
A Wide Range (English) (Product brochure)
AQtap water dispenser (Product brochure)
SOLAR-POWERED WATER SUPPLY (Product brochure)
AQtap (Getting started) (Installation and operating instructions)
AQtap WMS (Installation and operating instructions)
AQtap (Installation and operating instructions)
AQtap Solar Package - Cabinet / Kit (Installation and operating instructions)
