Washdown Duty Motor, 1 HP, 1800 RPM, 230/460V, 56C Frame, C-Face Round Body, TEFC Enclosure 460V 60HZ Three Phase 1 HP Stainless Steel 56°C

WorldWide ElectricSKU: NAWSSE1-18-56CRD

Price:
Sale price$746.56
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

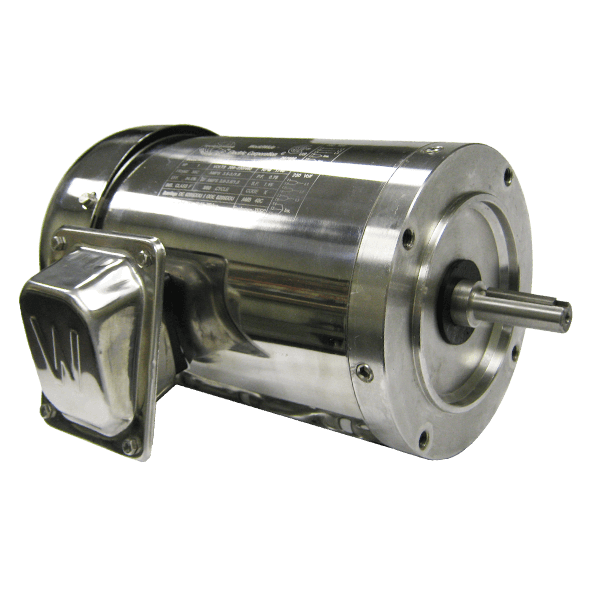

WorldWide Electric Washdown Duty Motor - 1 HP

Introducing the NAWSSE 1 HP Washdown Duty Motor from WorldWide Electric, designed for demanding environments where durability and efficiency are paramount. This premium stainless steel motor operates at 1800 RPM and is suitable for 230/460V, 60 Hz three-phase applications. With a 56C frame and a C-face round body (footless) mounting design, this motor is perfect for washdown applications, ensuring longevity and reliability.

Key Features:

  • Power: 1 HP
  • Speed: 1800 RPM
  • Voltage: 230/460V
  • Phase: Three Phase
  • Frame Size: 56C
  • Enclosure: Totally Enclosed Fan Cooled (TEFC)
  • Material: Premium Stainless Steel
  • Service Factor: 1.15

This motor is engineered for premium efficiency and is ideal for applications that require a robust and reliable power source. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the NAWSSE1-18-56CRD to ensure compatibility. If you encounter any difficulties in locating the right item, don’t hesitate to reach out to our knowledgeable team for support.

Supplier Part Number 8501.51.6040
Approximate Weight (lbs) 44
Degree of Protection IP56
Enclosure Type TEFC
FL Efficiency (%) 85.5
Frame Size 56C
Frequency 60/50 HZ*
Full Load Amps 1.56
Horsepower 1
Insulation Class Class F
Mounting Type C-Face Round Body (Footless)
Phase Three-Phase
RPM 1800
Service Factor 1.15
Voltage 230/460

Motor Curves
