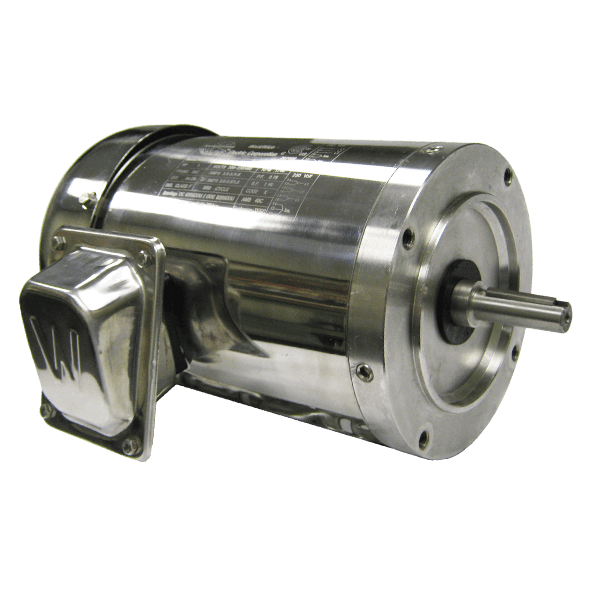

Washdown Duty Motor, 1.5 HP, 1800 RPM, 230/460V, 56C Frame, C-Face Round Body, TEFC Enclosure 460V 60HZ Three Phase 1.5 HP Stainless Steel 56°C

WorldWide ElectricSKU: NAWSSE1.5-18-56CRD

Price:
Sale price$828.80
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Washdown Duty Motor - 1.5 HP

Introducing the NAWSSE 1.5 HP Washdown Duty Motor from WorldWide Electric, designed for demanding environments where durability and efficiency are paramount. This premium stainless steel motor operates at 1800 RPM and is suitable for 3-phase applications with a voltage range of 208-230/460V at 60 Hz.

Key features include:

  • Power: 1.5 HP
  • Speed: 1800 RPM
  • Voltage: 230/460V
  • Frame Size: 56C
  • Type: C-Face Round Body (Footless) Mounting
  • Enclosure: Totally Enclosed Fan Cooled (TEFC)
  • Efficiency: Premium Efficiency
  • Material: Stainless Steel for enhanced corrosion resistance

This motor is ideal for washdown applications, ensuring reliable performance in wet and harsh conditions. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the NAWSSE1.5-18-56CRD. If you encounter any difficulties, don’t hesitate to reach out to our knowledgeable team for support.

Supplier Part Number 8501.52.4000
Approximate Weight (lbs) 58
Degree of Protection IP56
Enclosure Type TEFC
FL Efficiency (%) 86.5
Frame Size 56C
Frequency 60/50 HZ*
Full Load Amps 2.27
Horsepower 1.5
Insulation Class Class F
Mounting Type C-Face Round Body (Footless)
Phase Three-Phase
RPM 1800
Service Factor 1.15
Voltage 230/460

Motor Curves
