VHS-V2 100 HP 1800 RPM 3 Phase 60 HZ 230/460V 1.15 Sf 404TP Frame, Wpi ODP, Vertical Hollow Shaft Motor, Cast Iron, Premium Efficiency, P-Cap Screw Mounting, 16.5 Inch Cap Screw - V2-100D4-W40416B

This item ships free!
WorldWide ElectricSKU: V2-100D4-W40416B

Price:
Sale price$8,255.52
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

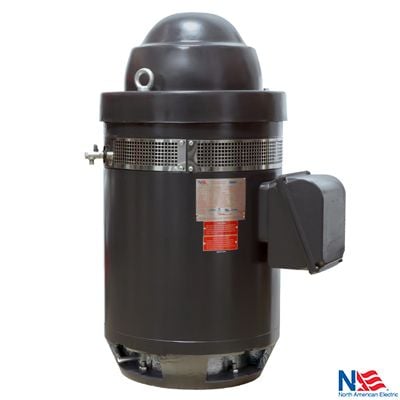

WorldWide Electric Vertical Hollow Shaft Motor - VHS-V2 100 HP

Introducing the VHS-V2 100 HP Vertical Hollow Shaft Motor from WorldWide Electric, designed for premium efficiency and reliable performance in demanding applications. This 3-phase motor operates at 1800 RPM and is suitable for 60 Hz power supply, with dual voltage options of 230/460V. Featuring a robust cast iron construction, this motor is built to withstand the rigors of industrial environments.

Key specifications include:

  • Power: 100 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Voltage: 230/460V
  • Service Factor: 1.15
  • Frame: 404TP
  • Type: Open Drip Proof (ODP)
  • Mounting: P-Cap Screw Mounting
  • Cap Screw Size: 16.5 Inch

This motor is ideal for applications requiring a vertical hollow shaft configuration, providing versatility and ease of installation. As a trusted source for replacement pumps and parts, Pump-Stop is here to assist you in finding the right components for your needs. If you have questions or need help identifying the correct part, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the V2-100D4-W40416B. Our knowledgeable team is ready to help you find the perfect solution for your application.

Supplier Part Number V2-100D4-W40416B
Degree of Protection IP23
Enclosure Type Weather Protected (WPI)
Frame Size 404TP
Frequency 60 HZ
Horsepower 100
Insulation Class Class F
Mounting Type P-Base
Phase Three-Phase
RPM 1800
Service Factor 1.15
Voltage 230/460

Motor Curves
