VHS-V1 75 HP 1800 RPM 3 Phase 60 HZ 230/460V 1.15 Sf 365TP Frame, Wpi ODP, Vertical Hollow Shaft Motor, Cast Iron, Premium Efficiency, P-Cap Screw Mounting, 16.5 Inch Cap Screw - V1-75D4-W36516A

This item ships free!
WorldWide ElectricSKU: V1-75D4-W36516A

Price:
Sale price$5,975.43
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

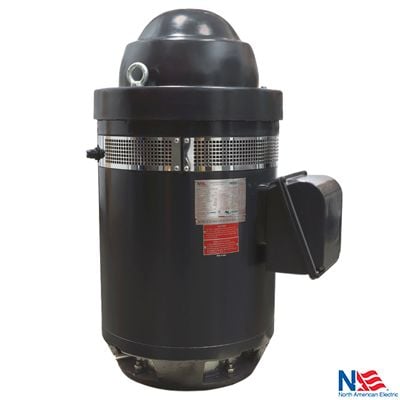

WorldWide Electric 75 HP Vertical Hollow Shaft Motor

Introducing the VHS-V1 75 HP Vertical Hollow Shaft Motor from WorldWide Electric, designed for premium efficiency and reliable performance in demanding applications. This 3-phase motor operates at 1800 RPM and is suitable for 60 Hz power supply, with dual voltage options of 230/460V. Featuring a robust cast iron construction, this motor is built to withstand the rigors of industrial environments.

Key specifications include:

  • Power: 75 HP
  • Speed: 1800 RPM
  • Phase: 3 Phase
  • Frequency: 60 Hz
  • Voltage: 230/460V
  • Service Factor: 1.15
  • Frame: 365TP
  • Type: ODP (Open Drip Proof)
  • Mounting: P-Cap Screw Mounting
  • Cap Screw Size: 16.5 Inch

This motor is ideal for applications requiring a vertical hollow shaft design, providing versatility and ease of installation. At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the V1-75D4-W36516A. If you encounter any difficulties, our team is here to help you find the perfect solution.

Supplier Part Number V1-75D4-W36516A
Degree of Protection IP23
Enclosure Type Weather Protected (WPI)
Frame Size 365TP
Frequency 60 HZ
Horsepower 75
Insulation Class Class F
Mounting Type P-Base
Phase Three-Phase
RPM 1800
Service Factor 1.15
Voltage 230/460

Motor Curves
