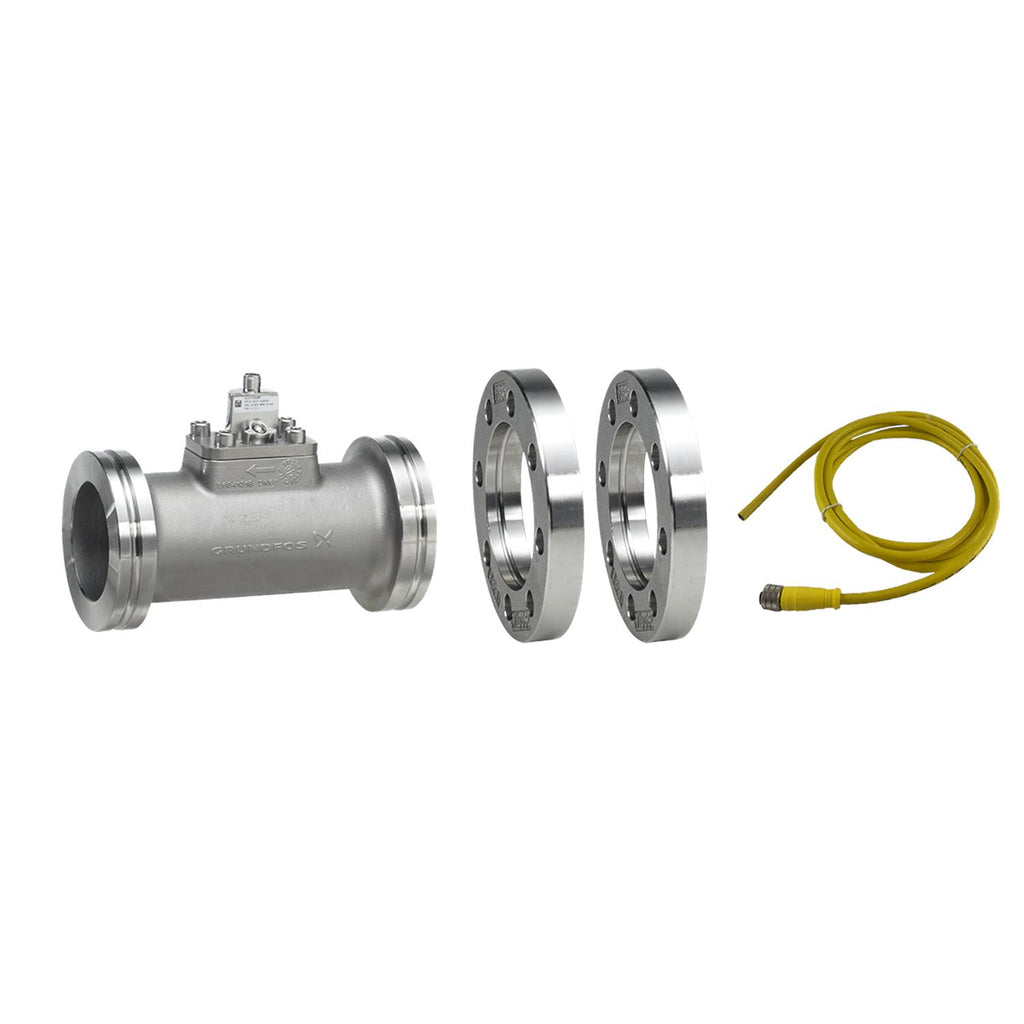

Grundfos 97688303 - VFI/5.2-104m/1/ C/M5.00-X/EG6/SS/33F/AC-1 | Vertical | Inline | Flanged Connection

GRUNDFOSSKU: 97688303

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 97688303 VFI/5.2-104m/1/ C/M5.00-X/EG6/SS/33F/AC-1 is a vertical inline flanged pump assembly intended for industrial and commercial systems. It suits technicians and maintenance teams replacing VFI-series components.

Key features

  • Vertical inline, flanged connection for compact installations
  • Designed for VFI series controls and accessories compatibility
  • Robust construction for reliable performance and easier serviceability

Applications

Typical uses include circulating and transfer duties in HVAC, booster, and process systems where inline flanged pumps are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97688303

EAN 5710621537988
Approvals EAC
Enclosure class (IEC 34-5) IP67
Flow functionality (Yes/No) Y
Gross weight 26.7 lb
Length of cable 5 m
Liquid temperature range -22 .. 230 °F
Material Pricing Group 46
Net weight 23.8 lb
Pressure differential functionality = Yes/No N
Pressure relative functionality (Yes/No) N
Product family VFI
Range of ambient temperature -13 .. 140 °F
Rated voltage dc 30.00 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Danish VVS No. 488176104
Finnish LVI No. 4467314

Motor Curves

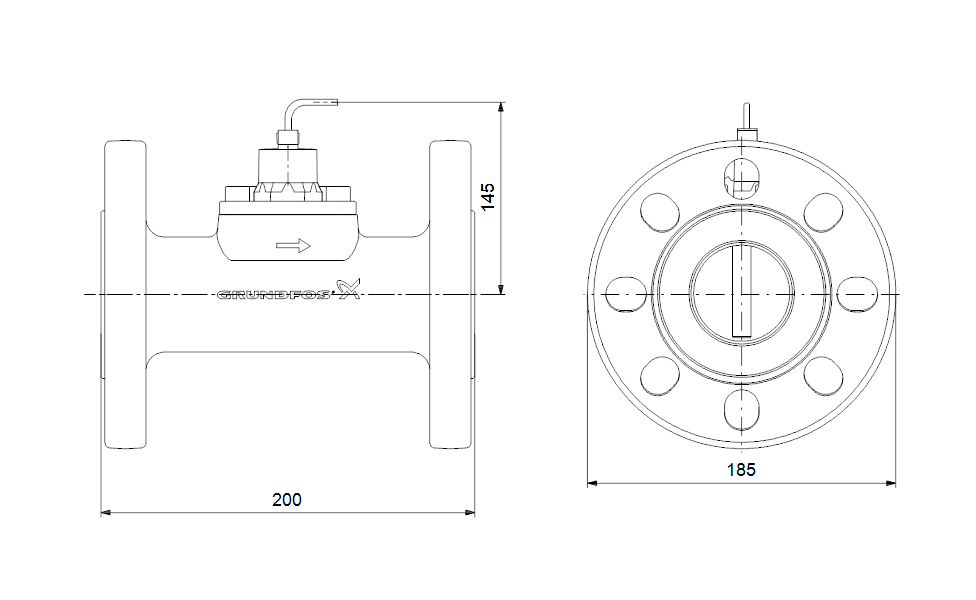

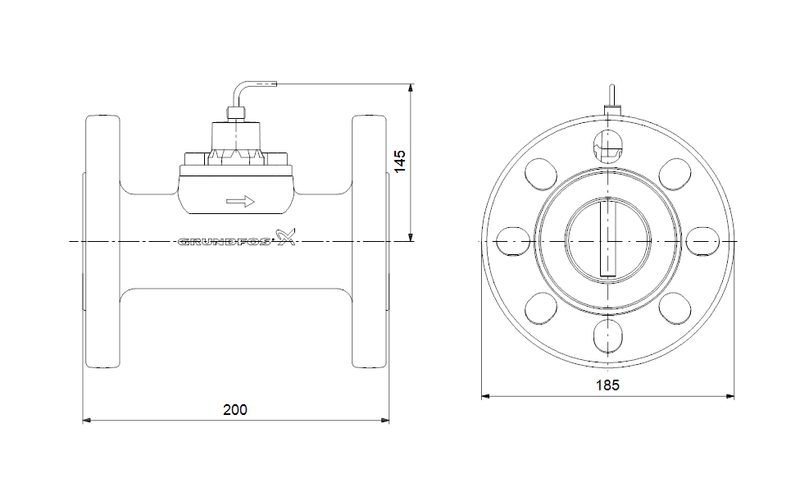

Dimensional Drawing
