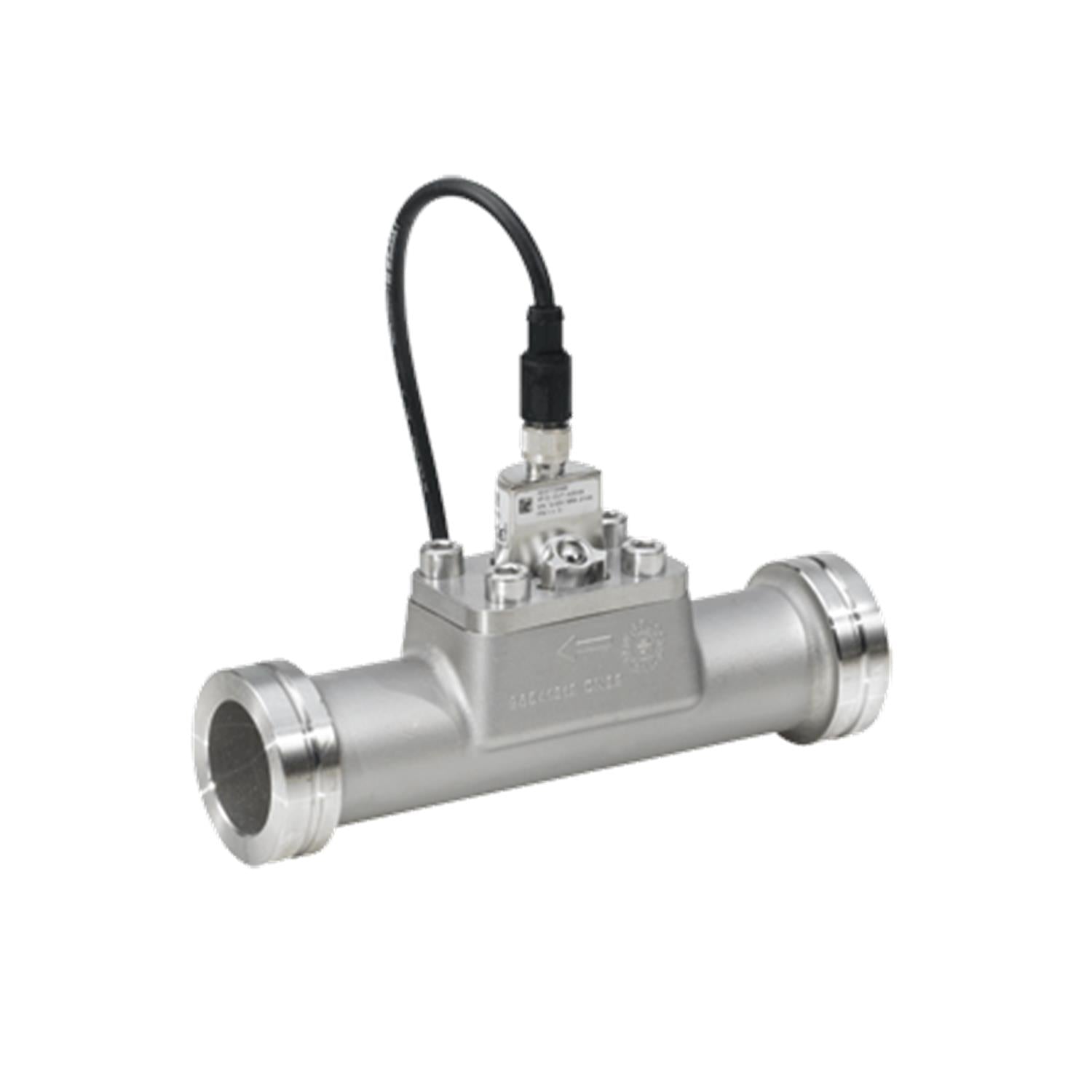

Grundfos 98126404 - VFI/-1.3-25m/1/C/M5.00-X/EG6/S | Vertical | Inline | Flanged Connection

Save $504.00
GRUNDFOSSKU: 98126404

Price:
Sale price$1,176.00 Regular price$1,680.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98126404 - VFI/-1.3-25m/1/C/M5.00-X/EG6/S This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5710629492104
Applications Accessories
4-20 mA control YES
Approvals and markings CE
Basic Stainless steel
Connection 1¼"
Enclosure class (IEC 34-5) IP67
Flow range 1.3-25 m³/h
Gross weight 8.45 lb
Length of cable 5 m
Liquid temperature range -22 .. 248 °F
Material Pricing Group 46
Maximum operating pressure 30 bar
Measuring type VORTEX
Net weight 6.37 lb
Pipework connection 1¼"
Product family Flow meters
Range of ambient temperature -67 .. 158 °F
Range of flow measuring 1.25 .. 25 m³/h
Real Time 1 Available on 10/13/2023 Plant: Allentown  Update with real time availability and Net price
Type VORTEX
Type of connection NPT
Connection mat. Stainless steel

Motor Curves

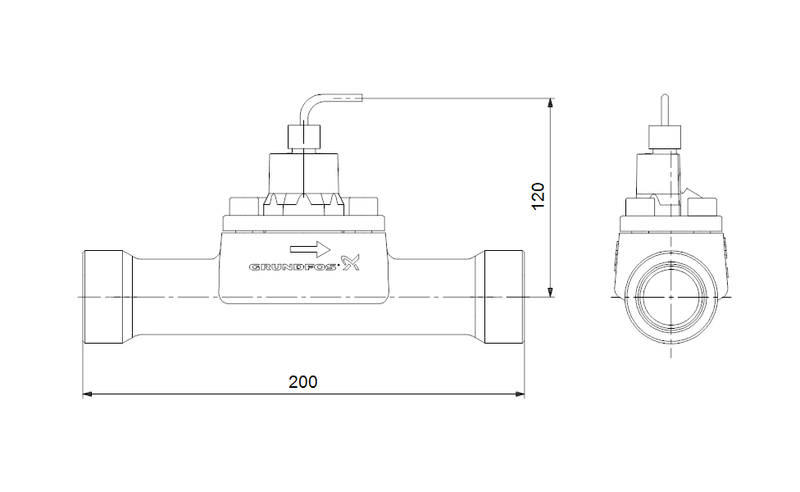

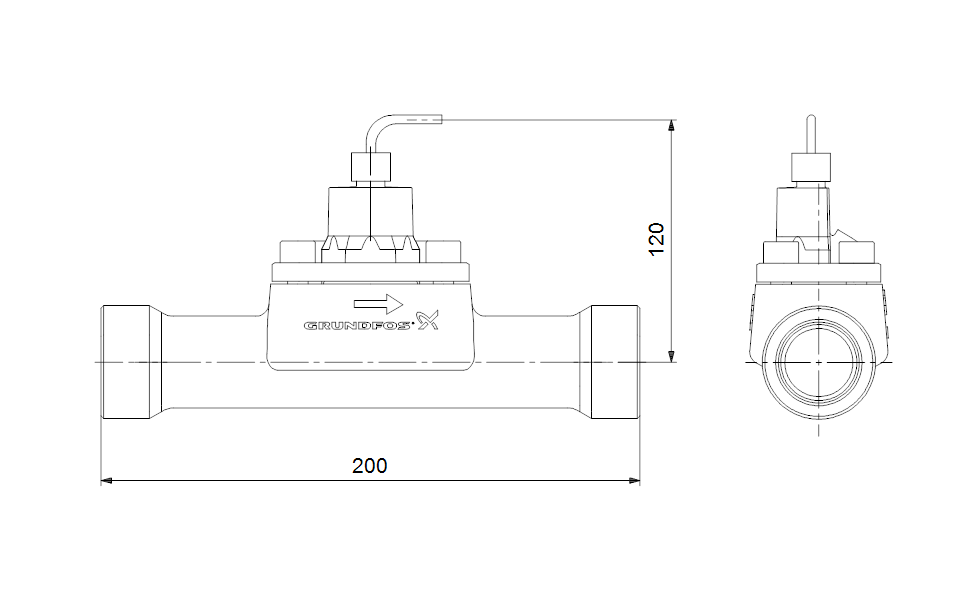

Dimensional Drawing
