Grundfos 97686141 - VFI/-1.3-25m/1/ C/M5.00-X/EG6/SG/30F/AC-1 | Vertical | Inline | Flanged Connection

Save $619.20
GRUNDFOSSKU: 97686141

Price:
Sale price$1,444.80 Regular price$2,064.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

VFI/-1. 3-25m/1/ C/M5. 00-X/EG6/SG/30F/AC-1 | The VFI is the industrial version (4-20 mA output) of the Grundfos vortex flow meter range. The VFI is based on the principle of vortex shedding behind a bluff body. The VFI has no moving parts and is built into a stainless steel pipe. The rugged design allows the VFI to be used in a wide range of applications as a cost-effective and accurate flow transmitter.

EAN 5710621490115
Approvals EAC
Enclosure class (IEC 34-5) IP67
Flow functionality (Yes/No) Y
Gross weight 14.4 lb
Length of cable 5 m
Liquid temperature range -22 .. 230 °F
Material Pricing Group 46
Net weight 11.5 lb
Pressure differential functionality = Yes/No N
Pressure relative functionality (Yes/No) N
Product family VFI
Range of ambient temperature -13 .. 140 °F
Rated voltage dc 30.00 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Danish VVS No. 488177025
Finnish LVI No. 4467307

Motor Curves

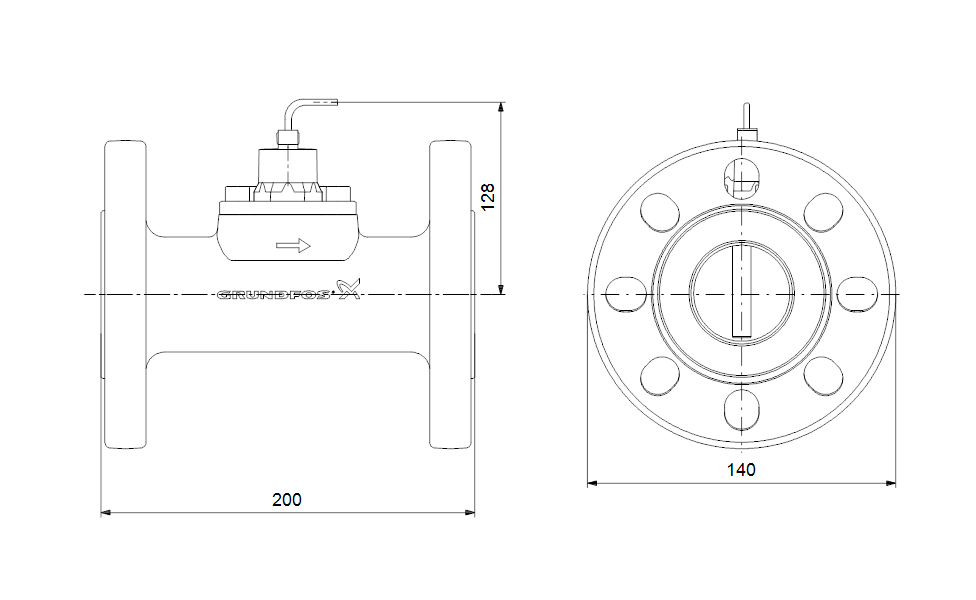

Dimensional Drawing
