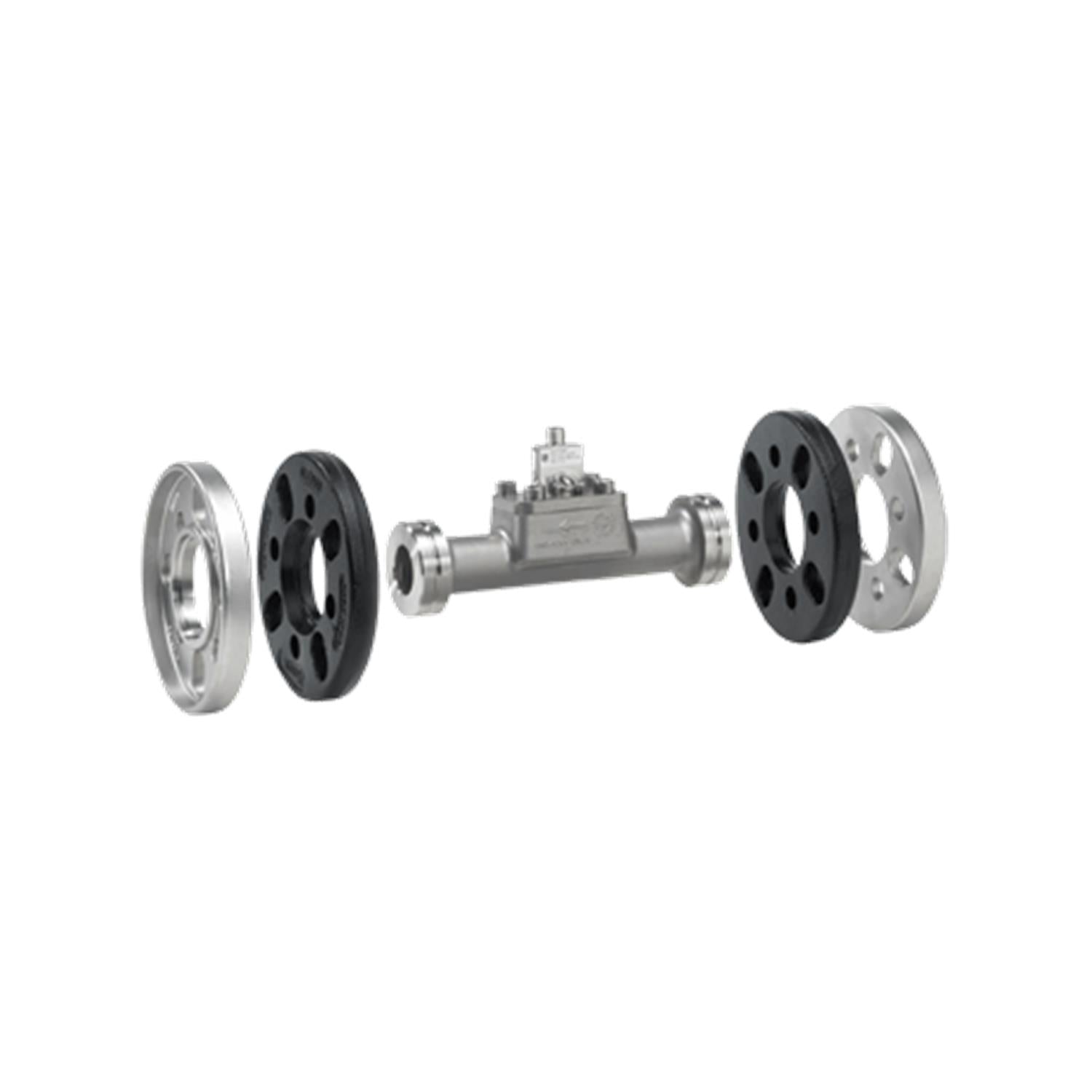

Grundfos 98126455 - VFI/-0.6-12m/1/C/M5.00-X/VG6/S | Vertical | Inline | Flanged Connection

Save $438.90
GRUNDFOSSKU: 98126455

Price:
Sale price$1,024.10 Regular price$1,463.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

VFI/-0. 6-12m/1/C/M5. 00-X/VG6/S | The VFI is the industrial version (4-20 mA output) of the Grundfos vortex flow meter range. The VFI is based on the principle of vortex shedding behind a bluff body. The VFI has no moving parts and is built into a stainless steel pipe. The rugged design allows the VFI to be used in a wide range of applications as a cost-effective and accurate flow transmitter. The VFI is delivered with a Stainless steel, 1", NPT connection.

EAN 5710629493972
Applications Accessories
4-20 mA control YES
Approvals and markings CE
Basic Stainless steel
Connection 1"
Enclosure class (IEC 34-5) IP67
Flow range 0.6-12 m³/h
Gross weight 7.72 lb
Length of cable 5 m
Liquid temperature range -22 .. 248 °F
Material Pricing Group 46
Maximum operating pressure 30 bar
Measuring type VORTEX
Net weight 5.64 lb
Pipework connection 1"
Product family Flow meters
Range of ambient temperature -67 .. 158 °F
Range of flow measuring 0.6 .. 12 m³/h
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Type VORTEX
Type of connection NPT
Connection mat. Stainless steel

Motor Curves

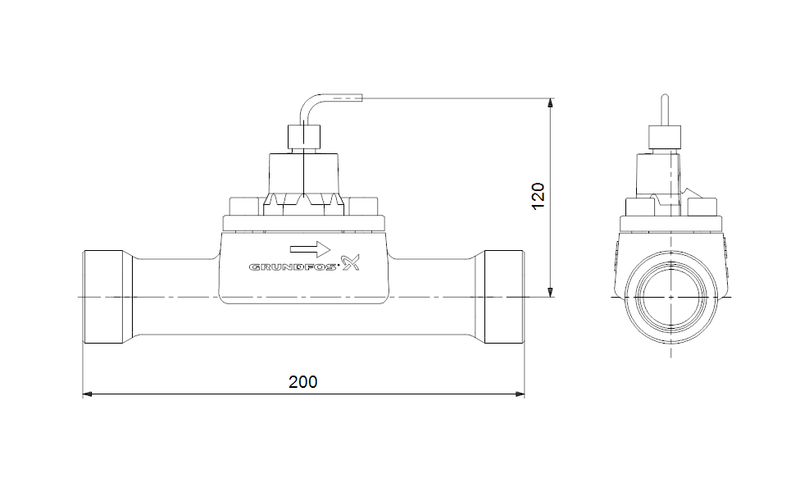

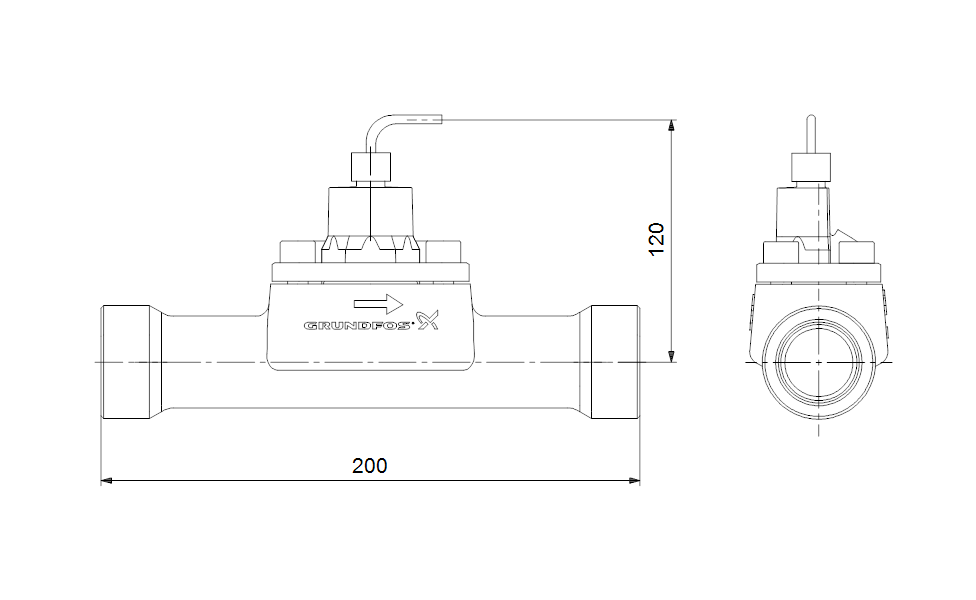

Dimensional Drawing
