Grundfos 97686129 - VFI/-0.6-12m/1/ C/M5.00-X/EG6/SG/30F/AC-1 | Vertical | Inline | Flanged Connection

Save $513.90
GRUNDFOSSKU: 97686129

Price:
Sale price$1,199.10 Regular price$1,713.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 97686129 is a VFI-series vertical inline pump with flanged connection designed for industrial fluid handling and accessory integration, suitable for maintenance technicians and plant engineers.

Key features

  • VFI-series vertical inline configuration for compact footprint
  • Includes controls and accessories compatibility according to listed Tags
  • Practical benefit: designed for straightforward replacement and integration into existing systems

Applications

General industrial pumping, process circulation, sensor-equipped monitoring setups, and replacement parts for systems using VFI components.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97686129

EAN 5710621489997
Approvals EAC
Approvals for drinking water WRAS
Enclosure class (IEC 34-5) IP67
Flow functionality (Yes/No) Y
Gross weight 14.4 lb
Length of cable 5 m
Liquid temperature range -22 .. 230 °F
Material Pricing Group 46
Net weight 11.6 lb
Pressure differential functionality = Yes/No N
Pressure relative functionality (Yes/No) N
Product family VFI
Range of ambient temperature -13 .. 140 °F
Rated voltage dc 30.00 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Danish VVS No. 488177012
Finnish LVI No. 4467304

Motor Curves

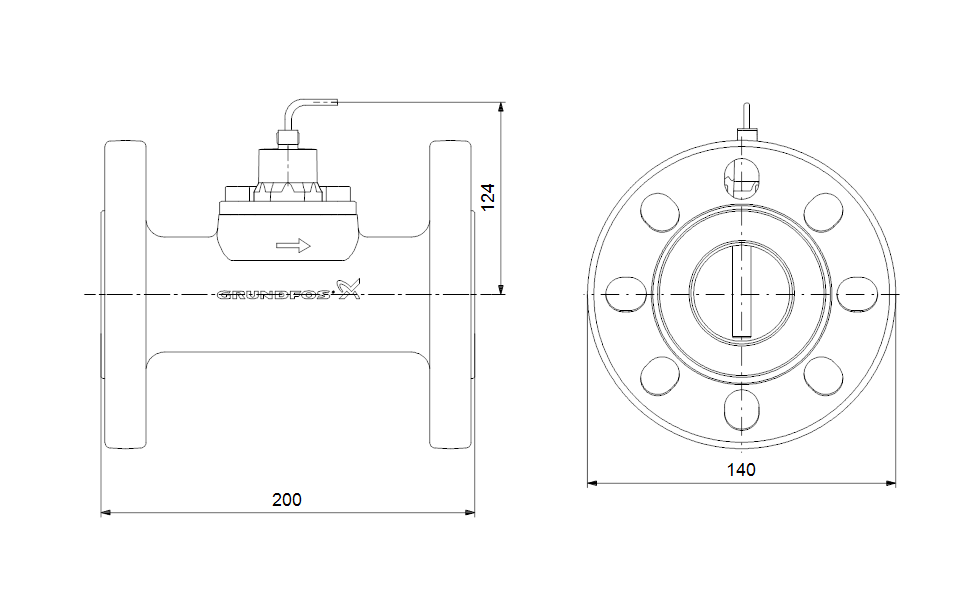

Dimensional Drawing
