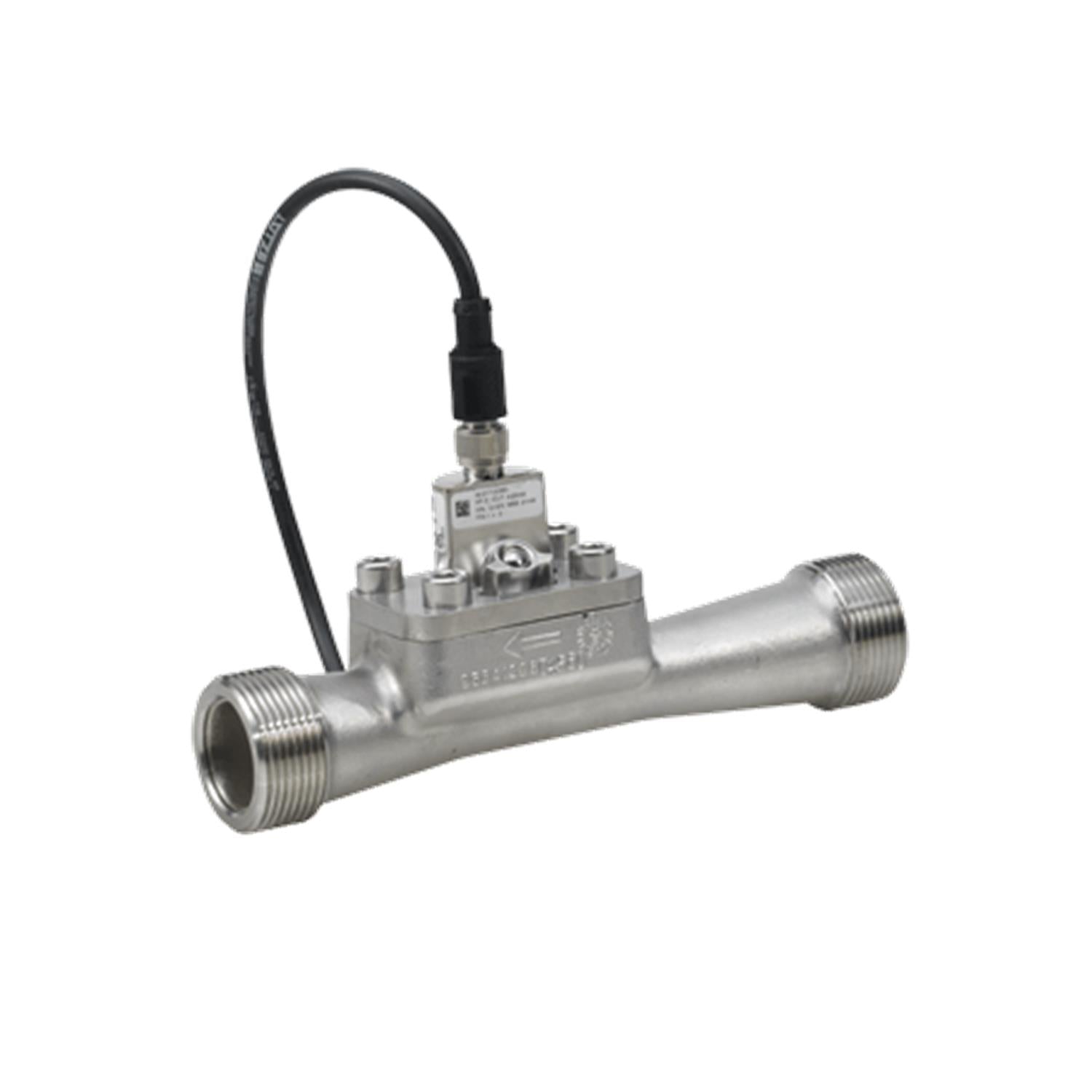

Grundfos 98126454 - VFI/--0.3-6m/1/C/M5.00-X/VG6/S | Vertical | Inline | Flanged Connection

Save $380.40
GRUNDFOSSKU: 98126454

Price:
Sale price$887.60 Regular price$1,268.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98126454 - VFI/--0.3-6m/1/C/M5.00-X/VG6/S This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5710629493965
Applications Accessories
4-20 mA control YES
Approvals and markings CE
Basic Stainless steel
Connection 1"
Enclosure class (IEC 34-5) IP67
Flow range 0.3-6 m³/h
Gross weight 7.59 lb
Length of cable 5 m
Liquid temperature range -22 .. 248 °F
Material Pricing Group 46
Maximum operating pressure 30 bar
Measuring type VORTEX
Net weight 5.51 lb
Pipework connection 1"
Product family Flow meters
Range of ambient temperature -67 .. 158 °F
Range of flow measuring 0.3 .. 6 m³/h
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Type VORTEX
Type of connection NPT
Connection mat. Stainless steel

Motor Curves

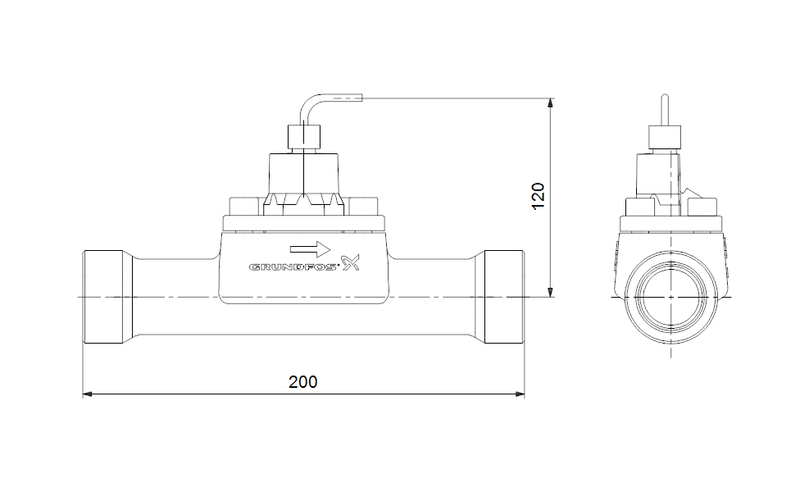

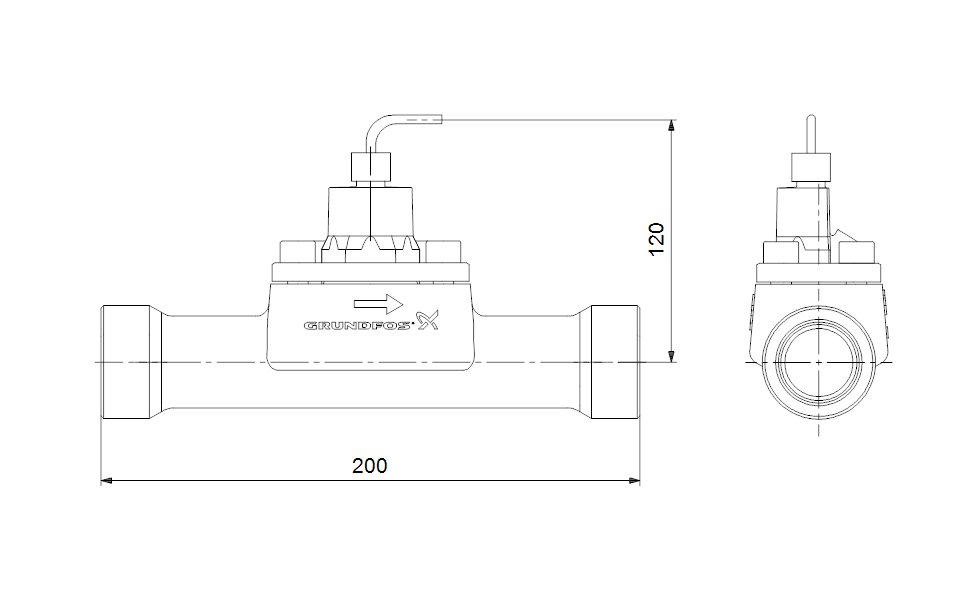

Dimensional Drawing
