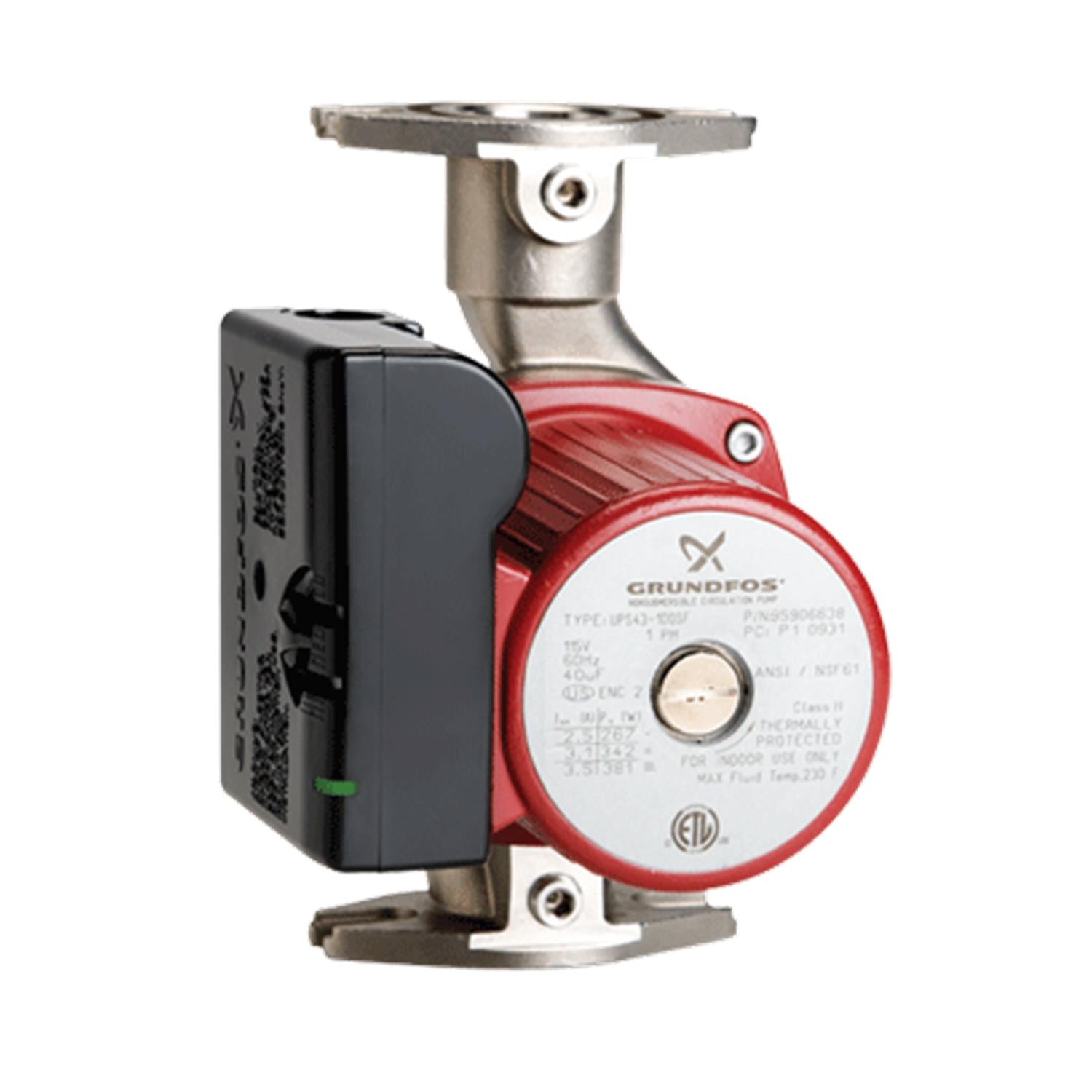

![Grundfos 95906638 - UPS 43-100 SF]()
![Grundfos 95906638 - UPS 43-100 SF]()
![Grundfos 95906638 - UPS 43-100 SF]()
![Grundfos 95906638 - UPS 43-100 SF]()
![Grundfos 95906638 - UPS 43-100 SF]()
![Grundfos 95906638 - UPS 43-100 SF]()
Description
UPS 43-100 SF | Grundfos UPS B circulator pumps have a bronze pump housing for drinking water applications while Grundfos UP N have a stainless-steel pump housing. Both variants are recommended for underfloor heating systems as the pumped liquid may often become aerated, causing corrosion in cast iron pump housings. The pump is of the canned rotor type, i. e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. The pump is characterized by: Ceramic shaft and radial bearings.
Carbon axial bearing.
Stainless steel rotor can and bearing plate.
Maximum ambient temperature
104 °F
Density
61.35 lb/ft³
Maximum operating pressure
145.04 psi
Selected liquid temperature
140 °F
Type of connection
OVAL
Rated voltage
1 x 115 V
Thermal protec
internal
Pumped liquid
Water
Liquid temperature range
35.6 .. 230 °F
Insulation class (IEC 85)
H
Built-in motor protection
CONTACT
Number of poles
2
Max. power input
370 W
Capacitor size - run
40 µF/180 V
Gross weight
16.6 lb
Current in speed 3
3.5 A
Pressure rating for connection
PN 10
Power input in speed 2
335 W
Pipe connection
2-BOLT FLANGE
Terminal box position
9H
Current in speed 2
3.1 A
Max flow
65 US gpm
Current in speed 1
2.5 A
Approvals
CETL
Rated flow
32.5 US gpm
Length
8 9/16 in
Maximum head
30.84 ft
Housing
Stainless steel
Rated head
22.33 ft
Connection
PN 10
Impeller
Composite
Pump housing
Stainless steel
Motor Curves
