Description

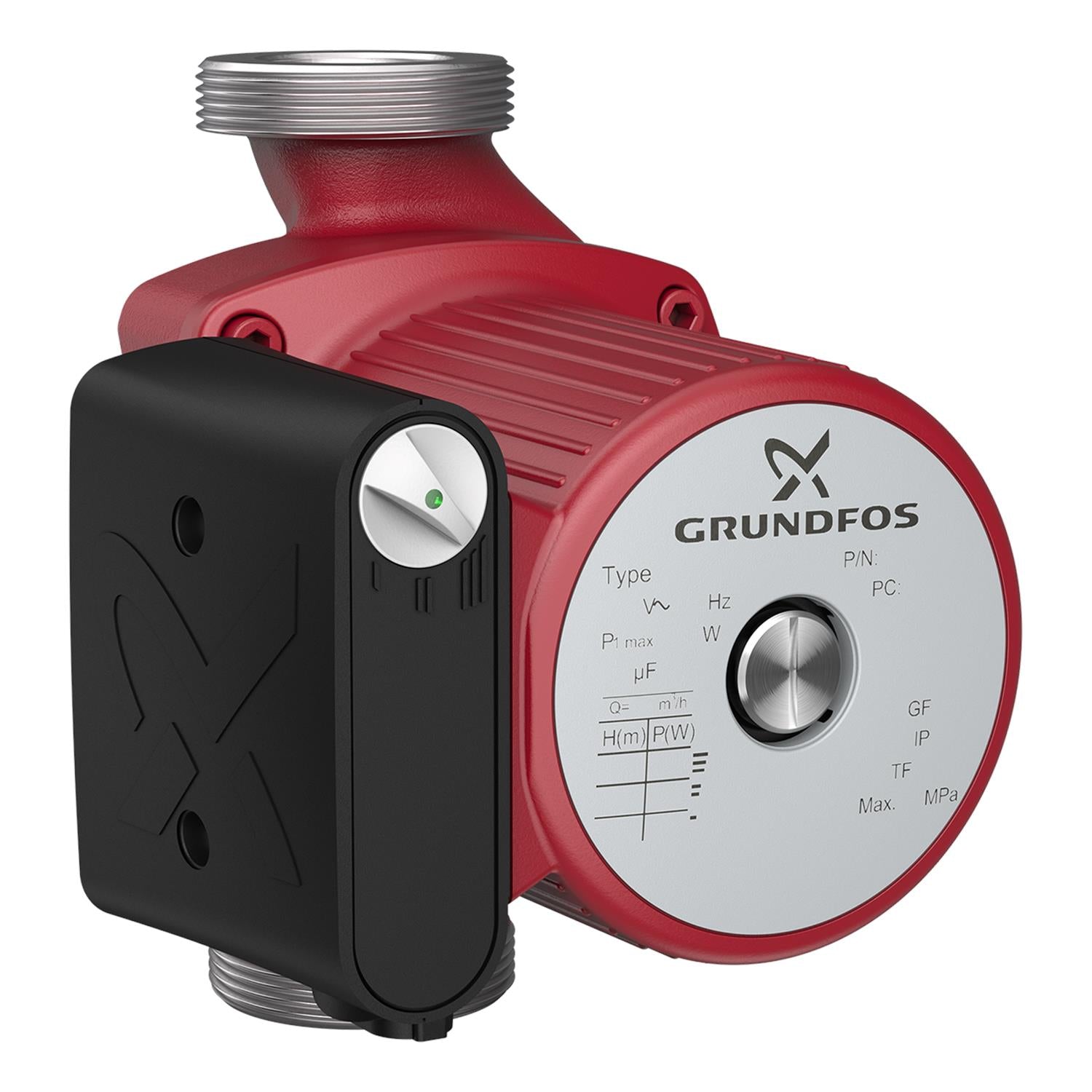

The Grundfos 95906489 (UPS 32-100 N 180) is a Circulator Pump — Three Speed. Three-speed circulator for heating, air-conditioning, and domestic hot water recirculation. Nominal performance: 32.8US gpm at 21.95ft. Rated 230V, 1-Phase, 50 Hz. Applications include HVAC: Heating, Residential heating, Residential hot water recirculation.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 95906489 |
| Product Series | UPS |
| Series Description | Circulator Pump — Three Speed |
| Voltage | 230V |
| Phase | 1-Phase |
| Frequency | 50 Hz |
| Motor Protection | CONTACT |
| Insulation Class | H |
| Protection Class (IP) | IPX4D |
| Nominal Flow | 32.8US gpm |
| Nominal Head | 21.95ft |
| Max Operating Pressure | 145.04psi |
| Max Fluid Temperature | 230°F |
| Max Ambient Temperature | 104°F |
| Nominal Pipe Bore | 2inch |
| Pipe Pressure Rating | PN 10 |
| Pipe Standard | G |
| Impeller Material | Composite |
| Housing Material | Stainless steel |
| Approvals / Certifications | CE, EAC, WEEE, RCM |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 230V, 1-Phase, 50 Hz. |
| Temperature limits | Do not exceed max fluid temperature 230°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. UPS pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5700311289945
- Approvals
- CE
- Built-in motor protection
- CONTACT
- Capacitor size - run
- 9.5 µF
- Connection
- PN 10
- Current in speed 1
- 1.3 A
- Current in speed 2
- 1.5 A
- Current in speed 3
- 1.52 A
- Density
- 61.35 lb/ft³
- Enclosure class (IEC 34-5)
- X4D
- Gross weight
- 17.1 lb
- Housing
- Stainless steel
- Impeller
- Composite
- Insulation class (IEC 85)
- H
- Length
- 180 mm
- Liquid temperature range
- -13 .. 230 °F
- Mains frequency
- 50 Hz
- Material Pricing Group
- 50
- Max. power input
- 345 W
- Maximum head
- 32.81 ft
- Maximum operating pressure
- 10 bar
- Net weight
- 14.7 lb
- Power input in speed 2
- 340 W
- Pressure rating for connection
- PN 10
- Pump housing
- Stainless steel
- Pumped liquid
- Water
- Range of ambient temperature
- 32 .. 104 °F
- Rated flow
- 32.8 US gpm
- Rated head
- 21.95 ft
- Rated voltage
- 1 x 230 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Selected liquid temperature
- 140 °F
- Size of connection
- 2 inch
- Speed no
- 3
- Terminal box position
- 9H
- TF class
- 95
- Thermal protec
- internal
- Type of connection
- G
Dimensional Drawing
Wiring Diagram
