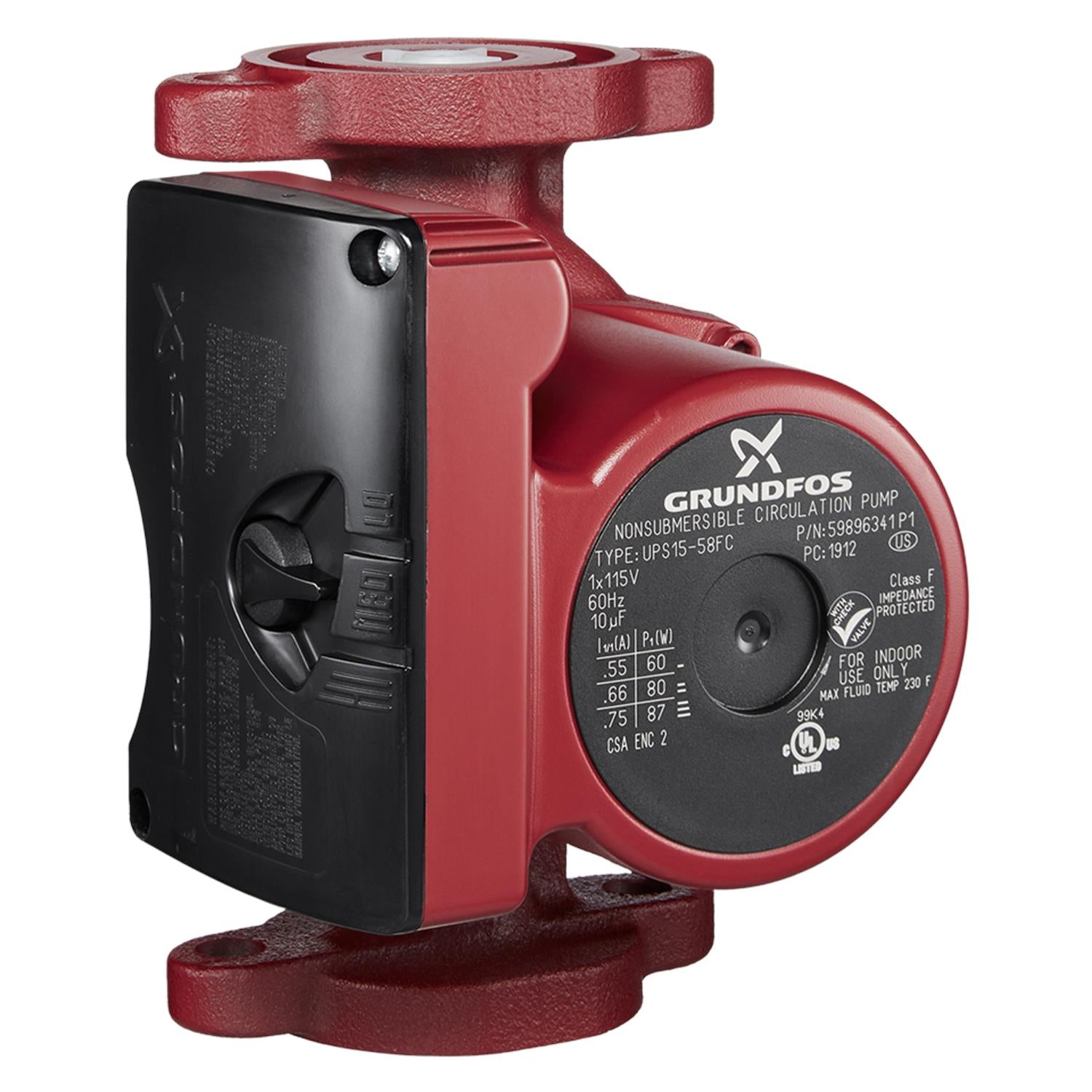

Grundfos 59896341 - UPS 15-58 FC
Grundfos 59896341 - UPS 15-58 FC
Grundfos 59896341 - UPS 15-58 FC
Grundfos 59896341 - UPS 15-58 FC

Grundfos 59896341 - UPS 15-58 FC

Save $186.00
GRUNDFOSSKU: 59896341
Price:
$114.00 $300.00
Typically In Stock – standard inventory item, typically available in 1 business days
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 59896341 - UPS 15-58 FC This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Maximum ambient temperature 104 °F
Density 61.35 lb/ft³
Maximum operating pressure 145.04 psi
Selected liquid temperature 140 °F
Type of connection OVAL
Rated voltage 1 x 115 V
Thermal protec Impedance protected
Pumped liquid Water
Liquid temperature range 35.6 .. 230 °F
Insulation class (IEC 85) F
Built-in motor protection CONTACT
Net weight 6.26 lb
Number of poles 2
Max. power input 87 W
Capacitor size - run 10 µF/180 V
Gross weight 6.75 lb
Current in speed 3 0.75 A
Pressure rating for connection PN 10
Power input in speed 2 80 W
Pipe connection 2-BOLT FLANGE
Terminal box position 9H
Current in speed 2 0.66 A
Max flow 17.2 US gpm
Current in speed 1 0.55 A
Approvals UL, CSA
Rated flow 8.5 US gpm
Length 6.54 in
Maximum head 19.36 ft
Housing Cast iron
Return valve Product name:UPS 15-58 FC
Rated head 10.47 ft
Connection PN 10
Impeller Composite
Pump housing Cast iron

Motor Curves

Dimensional Drawing
