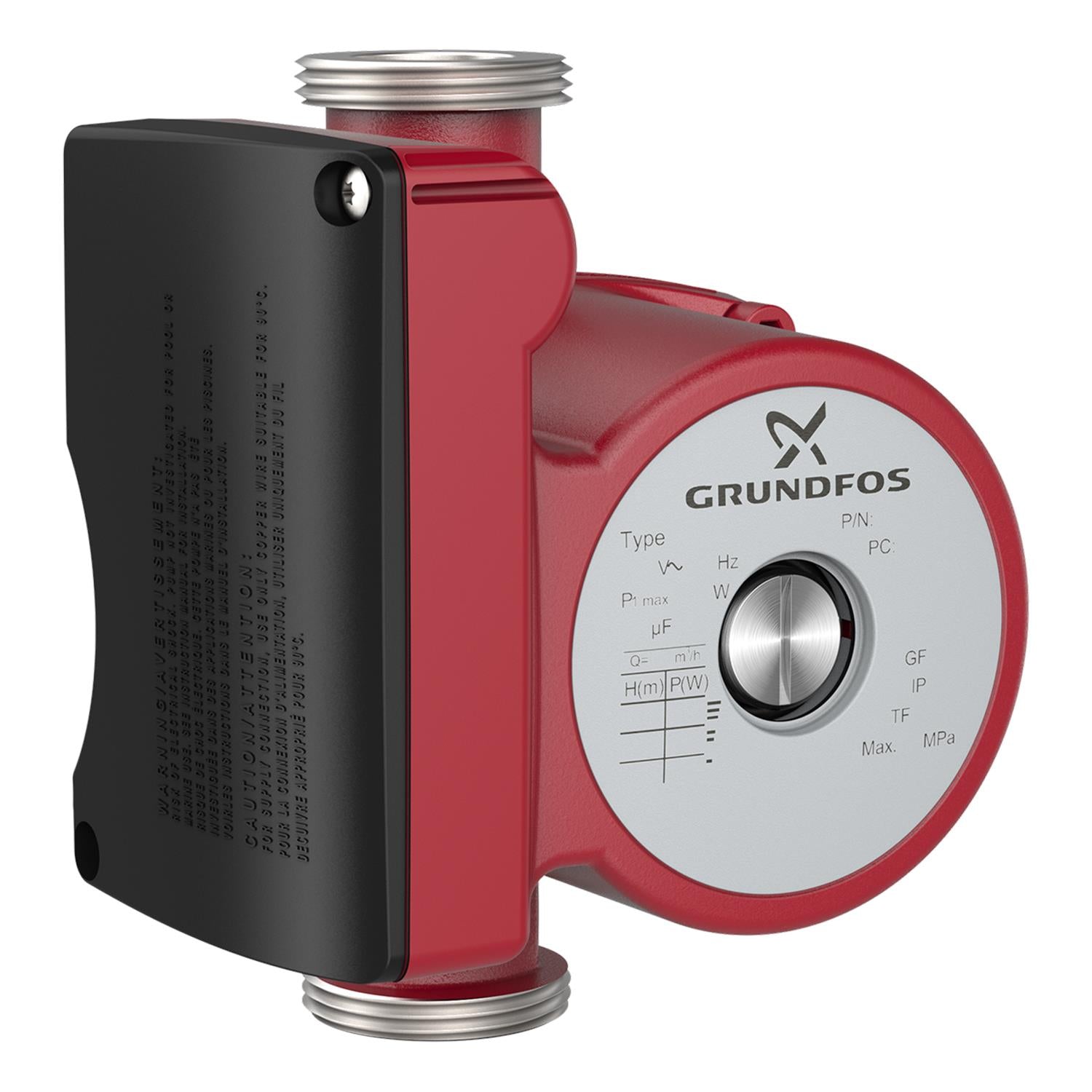

Grundfos 59896776 - UP 15-29 SU/LC
Grundfos 59896776 - UP 15-29 SU/LC
Grundfos 59896776 - UP 15-29 SU/LC
Grundfos 59896776 - UP 15-29 SU/LC
Grundfos 59896776 - UP 15-29 SU/LC
Grundfos 59896776 - UP 15-29 SU/LC

Grundfos 59896776 - UP 15-29 SU/LC

Save $348.00
GRUNDFOSSKU: 59896776
Price:
$331.00 $679.00
Typically In Stock – standard inventory item, typically available in 1 business days
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 59896776 - UP 15-29 SU/LC This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Maximum ambient temperature 104 °F
Density 61.35 lb/ft³
Maximum operating pressure 145.04 psi
Selected liquid temperature 140 °F
Type of connection NPSM
Rated voltage 1 x 115 V
Thermal protec Impedance protected
Pumped liquid Water
Liquid temperature range 35.6 .. 230 °F
Insulation class (IEC 85) F
Built-in motor protection CONTACT
Net weight 5.21 lb
Number of poles 2
Max. power input 87 W
Capacitor size - run 10 µF/180 V
Gross weight 6.07 lb
Current in speed 3 0.75 A
Pressure rating for connection PN 10
Cable type Connecting cord with plug
Pipe connection 1 1/4" NPSM
Terminal box position 9H
Max flow 20.7 US gpm
Approvals UL, CSA
Rated flow 10.3 US gpm
Length 5 15/16 in
Maximum head 9.843 ft
Housing Stainless steel
Rated head 5.322 ft
Type Connecting cord with plug
Connection PN 10
Impeller Composite
Pump housing Stainless steel

Motor Curves

Dimensional Drawing

DWiring Diagram
