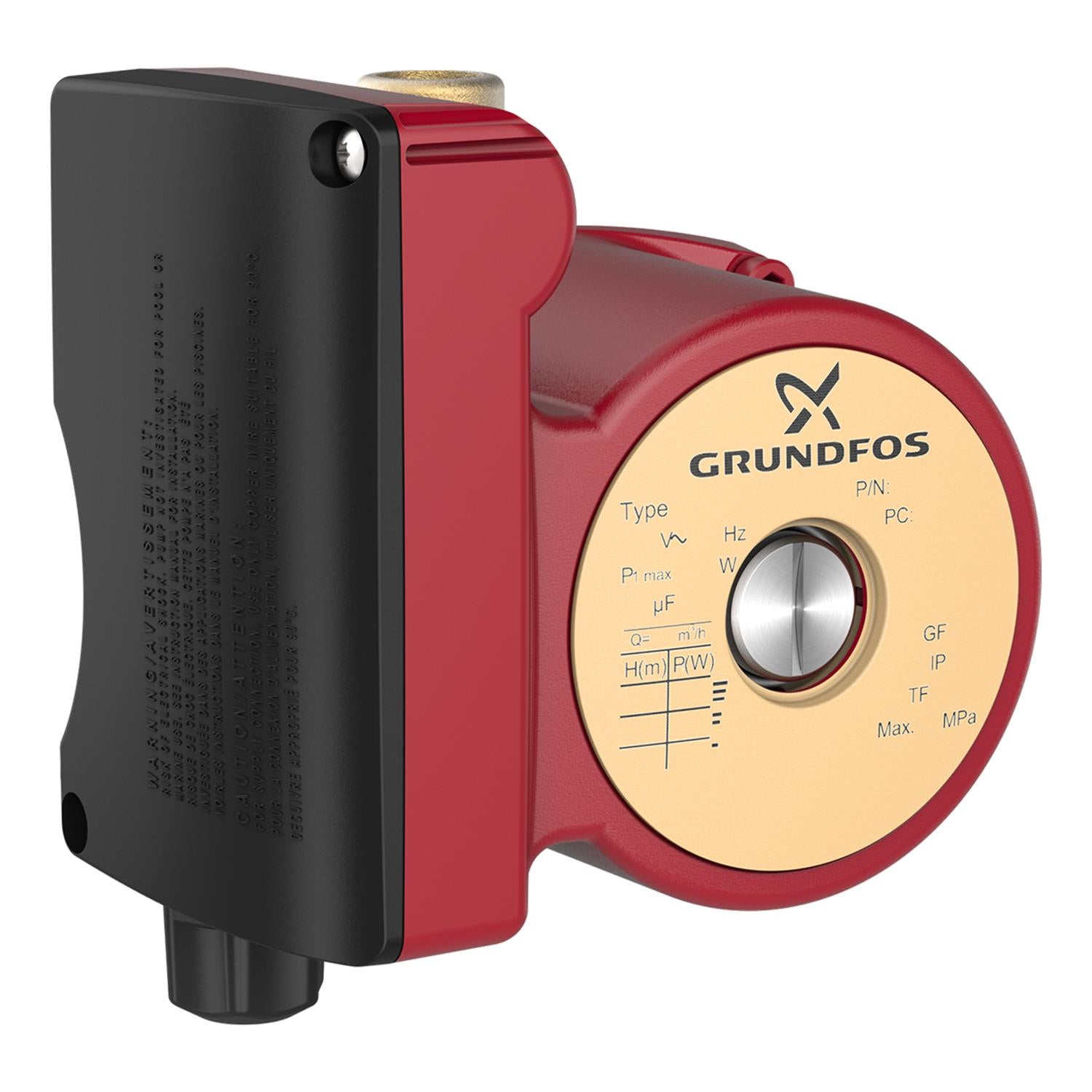

Grundfos 59896118 - UP 15-18 B5
Grundfos 59896118 - UP 15-18 B5
Grundfos 59896118 - UP 15-18 B5
Grundfos 59896118 - UP 15-18 B5
Grundfos 59896118 - UP 15-18 B5
Grundfos 59896118 - UP 15-18 B5

Grundfos 59896118 - UP 15-18 B5

Save $334.00
GRUNDFOSSKU: 59896118
Price:
$317.00 $651.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 59896118 - UP 15-18 B5 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Maximum ambient temperature 104 °F
Density 61.35 lb/ft³
Maximum operating pressure 145.04 psi
Selected liquid temperature 140 °F
Type of connection Smooth pipe
Rated voltage 1 x 230 V
Thermal protec Impedance protected
Pumped liquid Water
Liquid temperature range 35.6 .. 230 °F
Insulation class (IEC 85) F
Built-in motor protection CONTACT
Net weight 4.71 lb
Number of poles 2
Max. power input 90 W
Capacitor size - run 2 µF/400 V
Gross weight 5.23 lb
Current in speed 3 0.4 A
Pressure rating for connection PN 10
Pipe connection 1/2" INT. SWEAT
Terminal box position 9H
Max flow 14.5 US gpm
Approvals UL, CSA
Rated flow 4.93 US gpm
Length 5 in
Maximum head 13.78 ft
Housing Bronze
Rated head 8.846 ft
Connection PN 10
Impeller Composite
Pump housing Bronze

Motor Curves

Dimensional Drawing

DWiring Diagram
