Description

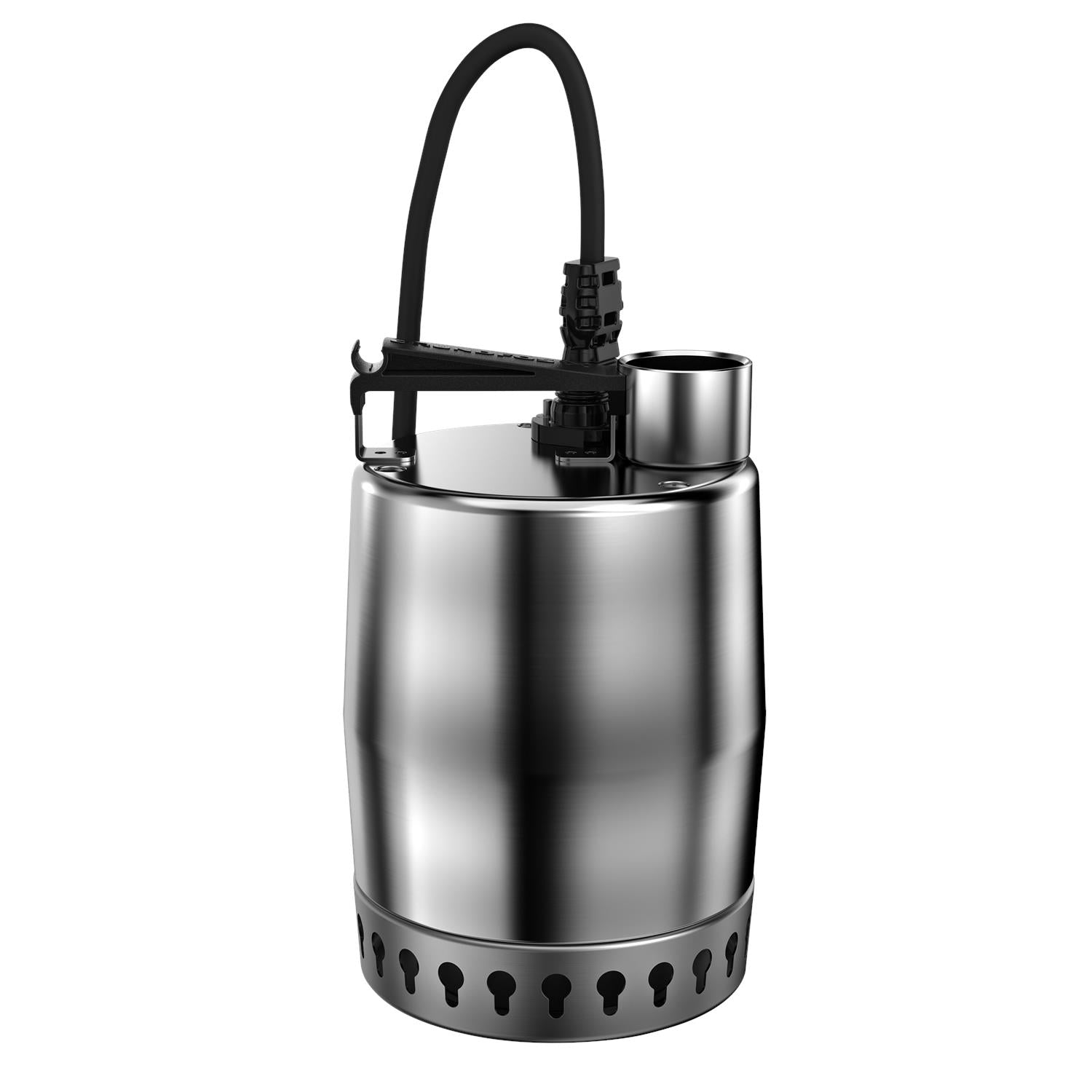

The Grundfos 012DC201 is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 31.7US gpm at 16.27ft. Rated 115V, 1-Phase, 60 Hz. Applications include Plumbing: Sewage, Residential wastewater.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 012DC201 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Voltage | 115V |
| Phase | 1-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3286rpm |
| Full Load Current | 4.9A |
| Motor Protection | CONTACT |
| Insulation Class | F |
| Protection Class (IP) | IP68 |
| Nominal Flow | 31.7US gpm |
| Nominal Head | 16.27ft |
| Max Fluid Temperature | 122°F |
| Max Ambient Temperature | 122°F |
| Nominal Pipe Bore | 1 1/4inch |
| Pipe Standard | NPT(F) |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Approvals / Certifications | CCSAUS, PROP65 |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 115V, 1-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 122°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- Approvals
- CCSAUS,PROP65
- Built-in motor protection
- CONTACT
- Cable plug
- US
- Capacitor size - run
- 20 µF/250 V
- Connection
- 1 1/4 inch
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP68
- Free passage
- 0.39 in
- Frequency
- 60 Hz
- Gross weight
- 15.7 lb
- Housing
- Stainless steel
- Impeller
- Stainless steel
- Inst dry/wet
- DRY/SUBMERGED
- Insulation
- F
- Insulation class (IEC 85)
- F
- IP Class
- IP68
- Length of power cable
- 24.9 ft
- Liquid max temp
- 122°F
- Liquid temperature range
- 32 .. 122 °F
- Maximum flow
- 50.6 US gpm
- Maximum head
- 26.25 ft
- Maximum installation depth
- 26.2 ft
- Model
- A
- n rpm
- F
- Net weight
- 14.8 lb
- Phase
- 1
- Power input P1
- 424 W
- Pump housing
- Stainless steel
- Range of ambient temperature
- 32 .. 122 °F
- Rated current
- 4.9 A
- Rated flow
- 31.7 US gpm
- Rated head
- 16.27 ft
- Rated speed
- 3286 rpm
- Rated voltage
- 1 x 115 V
- Sales region
- Namreg
- Size of connection
- 1 1/4 inch
- Starting current
- 15 A
- Thermal protec
- internal
- Type of cable plug
- US
- Type of connection
- NPT(F)
- Type of impeller
- SEMI OPEN
