Description

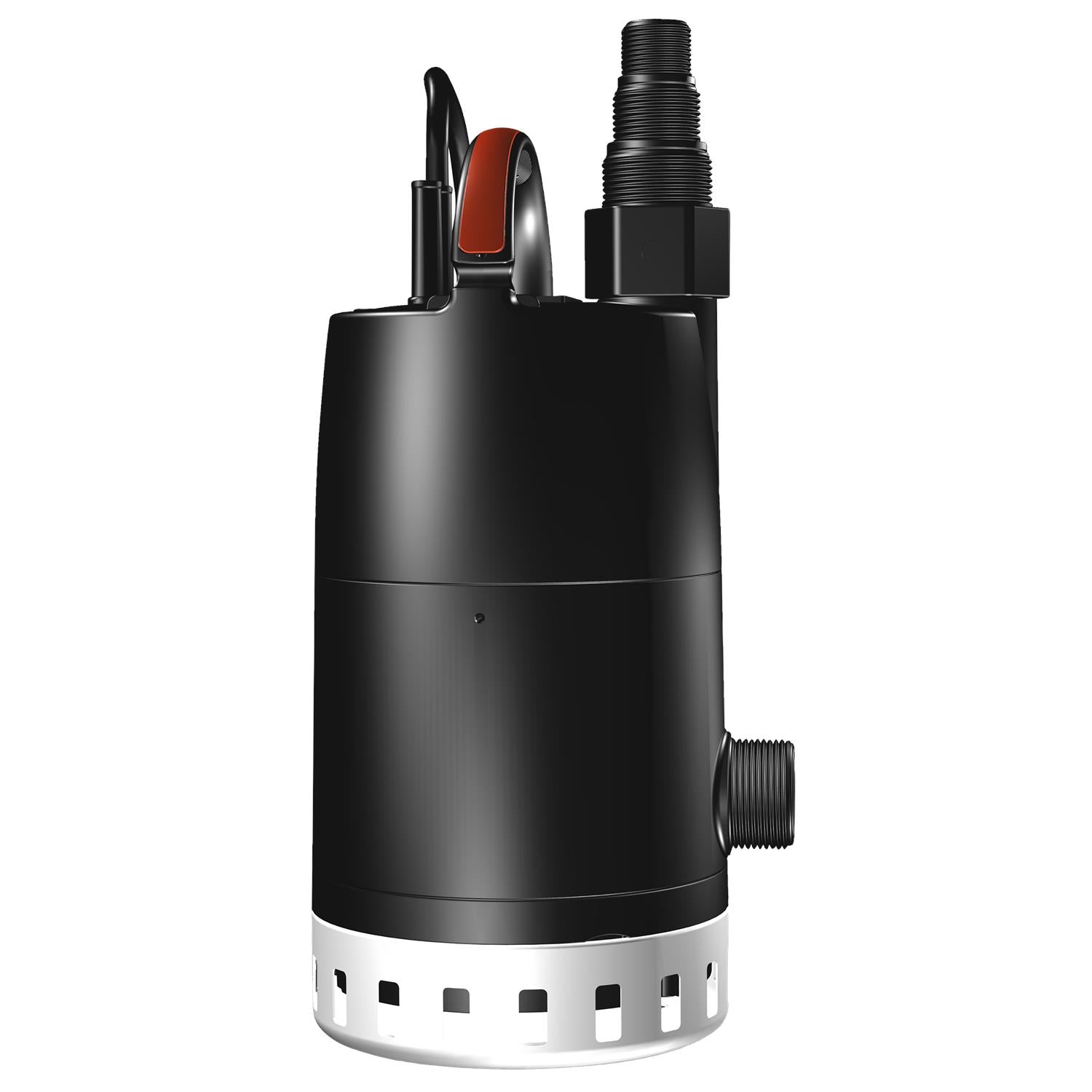

The Grundfos 96280965 (Unilift CC5 - M1) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 11.3US gpm at 8.268ft. Rated 220-240V, 1-Phase, 50 Hz. Applications include Plumbing: Sewage, Residential wastewater, Industrial wastewater treatment & reuse.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 96280965 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Power | 0.145HP |
| Voltage | 220-240V |
| Phase | 1-Phase |
| Frequency | 50 Hz |
| Motor Speed | 2850rpm |
| Full Load Current | 0.98A |
| Motor Protection | YES |
| Insulation Class | B |
| Protection Class (IP) | IP68 |
| Nominal Flow | 11.3US gpm |
| Nominal Head | 8.268ft |
| Max Fluid Temperature | 104°F |
| Max Ambient Temperature | 104°F |
| Nominal Pipe Bore | 1 1/4inch |
| Pipe Standard | R |
| Impeller Material | Composite |
| Housing Material | Polypropylene |
| Approvals / Certifications | CE, LGA, VDE, UKCA, SEPRO |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 220-240V, 1-Phase, 50 Hz. |
| Temperature limits | Do not exceed max fluid temperature 104°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5700830761359
- Approvals
- WEEE
- Built-in motor protection
- YES
- Capacitor size - run
- 4 µF/450 V
- Connection
- 1 1/4 inch
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP68
- Environmental approvals
- WEEE
- Gross weight
- 11.2 lb
- Housing
- Polypropylene
- Impeller
- Composite
- Insulation class (IEC 85)
- B
- Length of power cable
- 5 m
- Liquid temperature range
- 32 .. 104 °F
- Mains frequency
- 50 Hz
- Material Pricing Group
- 91
- Max. Particle
- 10 mm
- Maximum flow
- 1.67 l/s
- Maximum head
- 16.4 ft
- Maximum installation depth
- 2 m
- Motor
- Stainless steel
- Net weight
- 9.53 lb
- Power 1
- 250 W
- Power input P1
- 250 W
- Pump housing
- Polypropylene
- Range of ambient temperature
- 32 .. 104 °F
- Rated current
- 0.98 A
- Rated flow
- 11.3 US gpm
- Rated head
- 8.268 ft
- Rated power - P2
- 108 W
- Rated speed
- 2850 rpm
- Rated voltage
- 1 x 220-240 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Shaft
- Stainless steel
- Size of connection
- 1 1/4 inch
- Type of cable plug
- SCHUKO
- Type of connection
- R
Dimensional Drawing
