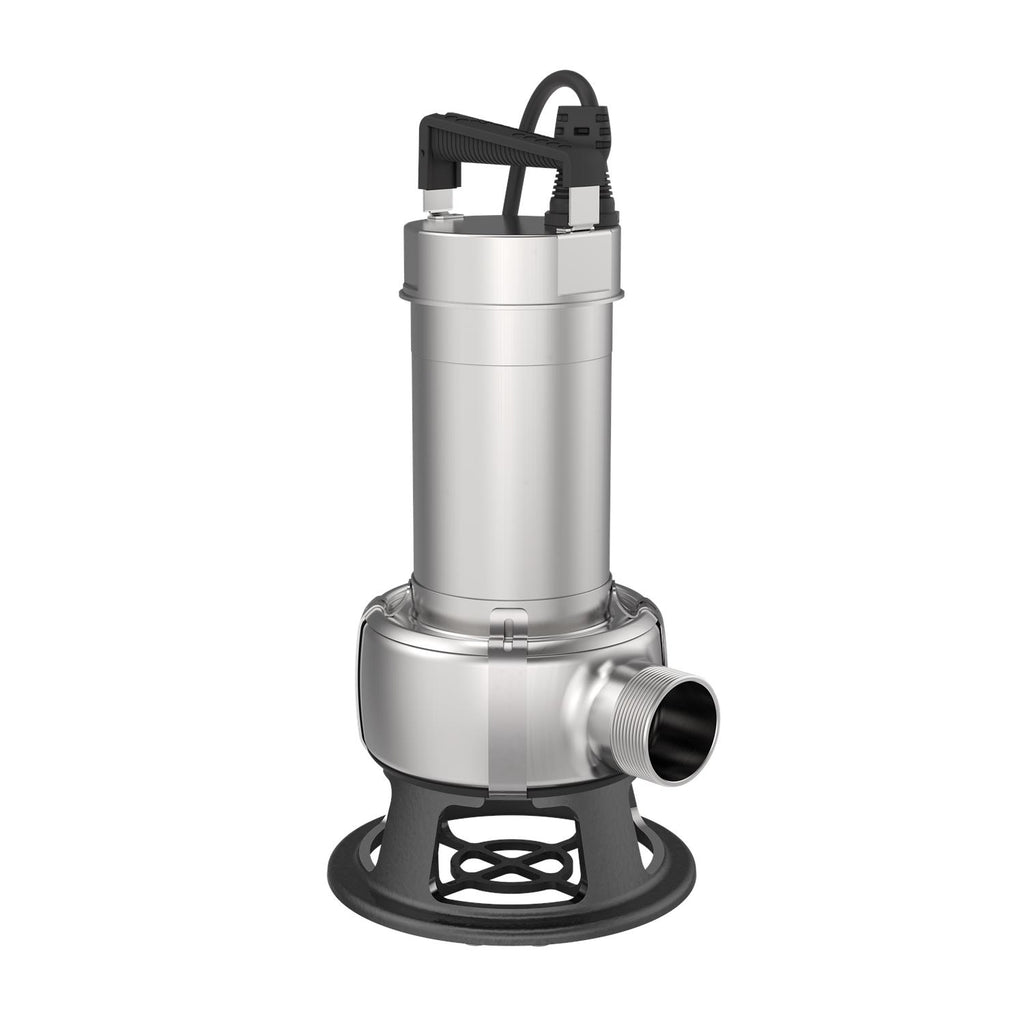

Grundfos 96846971 - UNILIFT AP50B.50.11.A1V

GRUNDFOSSKU: 96846971

Price:
Sale price$1,809.00
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96846971 - UNILIFT AP50B.50.11.A1V is a submersible wastewater and drainage pump suited for sump, effluent and sewage handling. It fits installations where reliable solids-handling and compact submersible performance are required by contractors and facility maintenance teams.

Key features

  • Manufactured by a leading pump maker for industrial and municipal applications
  • Designed for submersible use in sump, effluent and sewage systems (AP series)
  • Provides dependable solids-handling and simplified installation for reduced downtime

Applications

Typical uses include residential and commercial sump pumping, effluent transfer, sewage and drainage removal, and light municipal wastewater tasks. Suitable for replacement in Unilift AP50B installations where form-fit compatibility is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96846971

EAN 5700311889701
Applications Wastewater
Approvals CCSAUS
Auto-coupling Y
Built-in motor protection CONTACT
Capacitor size - run 20 µF/400 V
Connection 2 inch
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP68
Gross weight 29.8 lb
Housing Stainless steel
Impeller Stainless steel
Inst dry/wet S
Insulation class (IEC 85) F
Length of power cable 7.6 m
Level switch float switch
Liquid temperature range 32 .. 104 °F
Mains frequency 60 Hz
Material Pricing Group 7
Max. Particle 50 mm
Maximum flow 7.5 l/s
Maximum head 45.93 ft
Maximum installation depth 8 m
Motor type 1-phase PSC
Net weight 27.3 lb
Power 1 1.8 kW
Power factor 1 0.97
Power input P1 1.8 kW
Product family Unilift AP50B
Pump housing Stainless steel
Range of ambient temperature 32 .. 104 °F
Rated current 8.42 A
Rated power - P2 1.2 kW
Rated speed 3360 rpm
Rated voltage 1 x 220-230 V
Real Time 1 Available on 10/13/2023 Plant: Allentown  Update with real time availability and Net price
Size of connection 2 inch
Switch float switch
Thermal protec internal
Type of cable plug NONE
Type of connection NPT(F)
Type of impeller VORTEX

Motor Curves

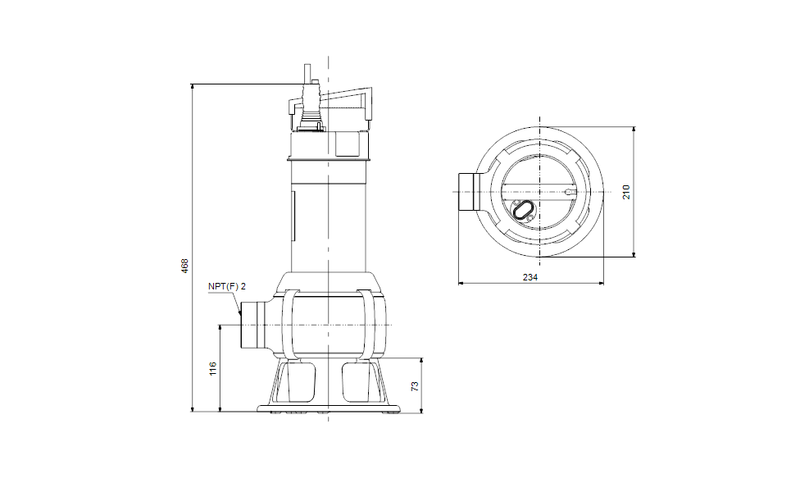

Dimensional Drawing

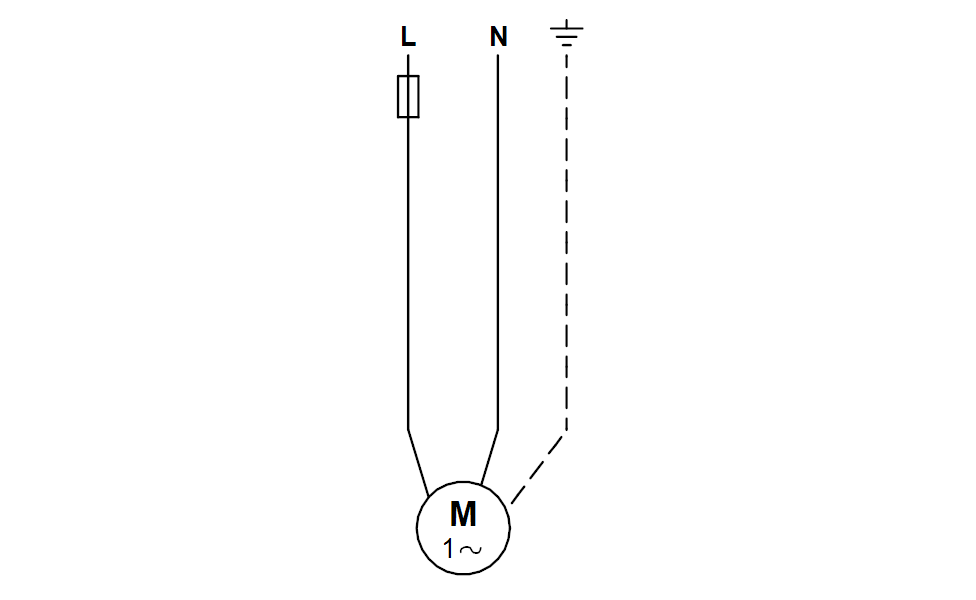

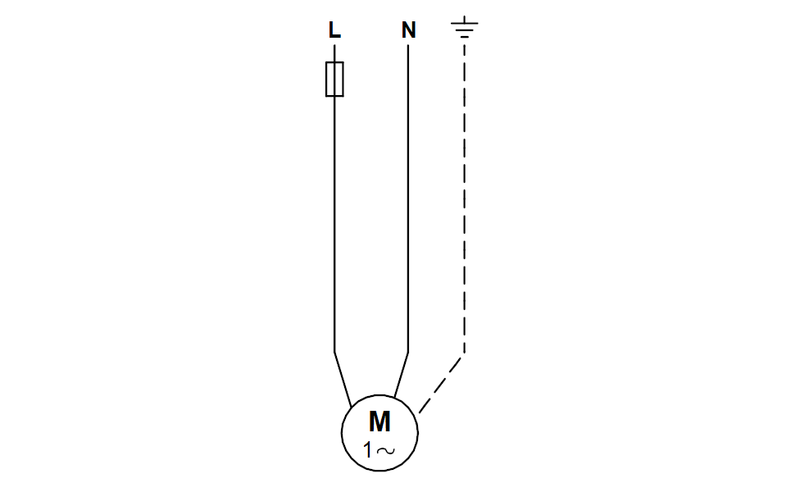

DWiring Diagram
