Description

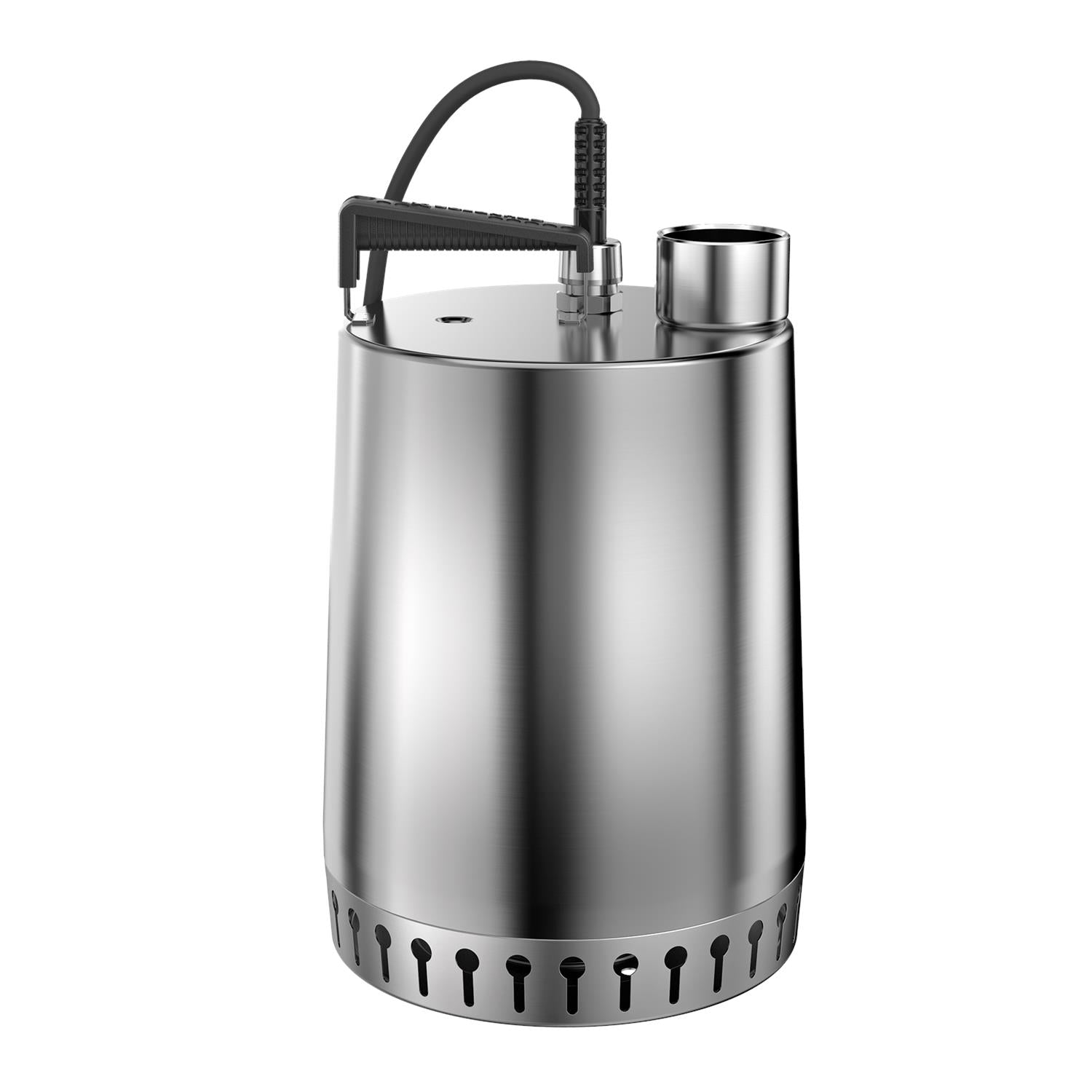

The Grundfos 96847173 (UNILIFT AP12.50.11.A1) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 220-230V, 1-Phase, 60 Hz. Applications include Residential wastewater.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 96847173 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Power | 1.74HP |
| Voltage | 220-230V |
| Phase | 1-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3350rpm |
| Full Load Current | 9A |
| Motor Protection | CONTACT |
| Insulation Class | F |
| Protection Class (IP) | IP68 |
| Max Fluid Temperature | 131°F |
| Max Ambient Temperature | 131°F |
| Nominal Pipe Bore | 2inch |
| Pipe Standard | NPT(F) |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Approvals / Certifications | CCSAUS, PROP65 |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 220-230V, 1-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 131°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5700311894620
- Applications
- Wastewater
- Approvals
- CCSAUS
- Built-in motor protection
- CONTACT
- Capacitor size - run
- 20 µF/400 V
- Connection
- 2 inch
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP68
- Gross weight
- 32.9 lb
- Housing
- Stainless steel
- Impeller
- Stainless steel
- Inst dry/wet
- D/S
- Insulation class (IEC 85)
- F
- Length of power cable
- 3 m
- Level switch
- float switch
- Liquid temperature range
- 32 .. 131 °F
- Mains frequency
- 60 Hz
- Material Pricing Group
- 7
- Max. Particle
- 12 mm
- Maximum flow
- 8.89 l/s
- Maximum head
- 52.5 ft
- Maximum installation depth
- 3 m
- Motor type 1-phase
- PSC
- Net weight
- 31.5 lb
- Power 1
- 1.8 kW
- Power factor 1
- 0.98
- Power input P1
- 1.8 kW
- Product family
- Unilift AP12
- Pump housing
- Stainless steel
- Range of ambient temperature
- 32 .. 131 °F
- Rated current
- 0.375
- Rated power - P2
- 1.3 kW
- Rated speed
- 3350 rpm
- Rated voltage
- 1 x 220-230 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Size of connection
- 2 inch
- Starting current
- 35 A
- Switch
- float switch
- Thermal protec
- internal
- Type of cable plug
- NONE
- Type of connection
- NPT(F)
- Type of impeller
- SEMI OPEN
