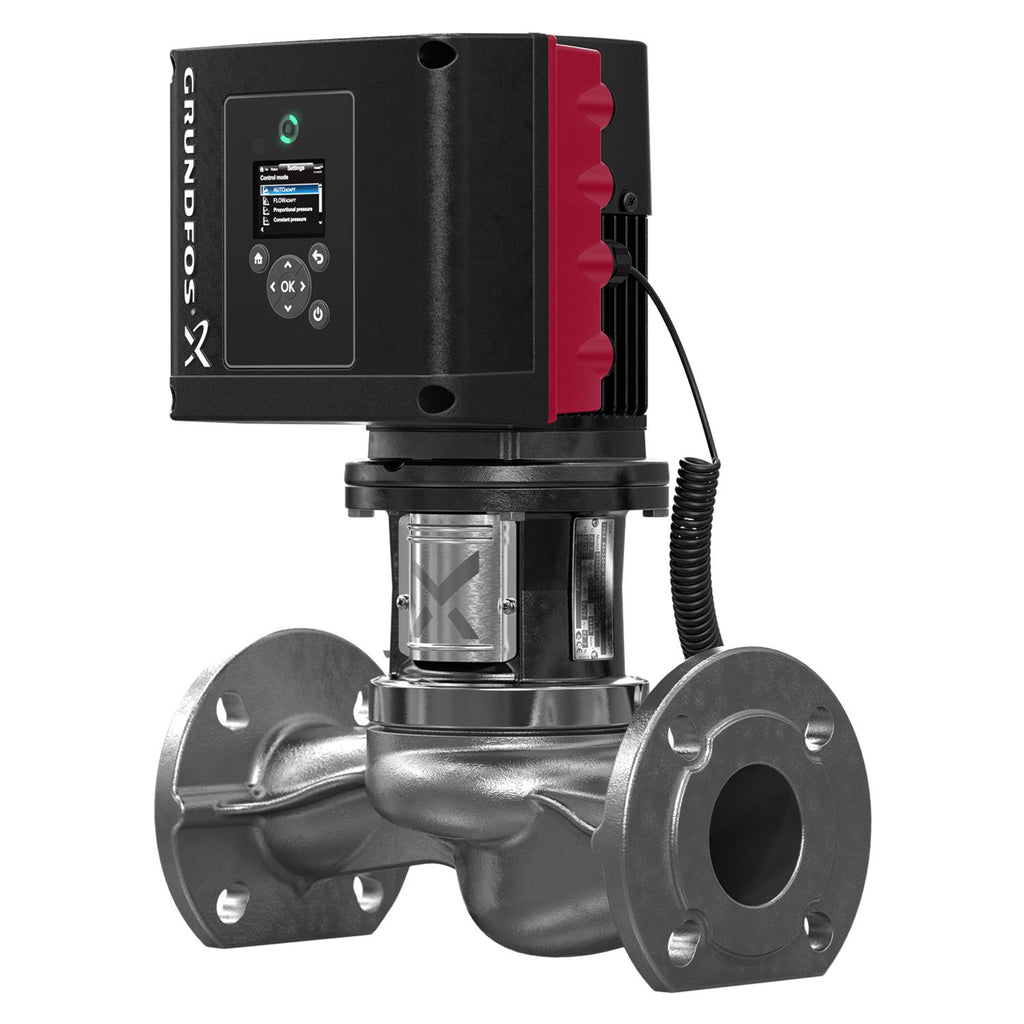

Grundfos 98819911 - TPE3 80-180 S-A-G-I-BQQE-ICB | Inline | Variable Speed | Energy Efficient

Save $5,214.00
GRUNDFOSSKU: 98819911

Price:
Sale price$12,165.00 Regular price$17,379.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98819911 - TPE3 80-180 S-A-G-I-BQQE-ICB is a high-performance inline pump designed for various industrial applications. Manufactured by Grundfos, this variable speed pump is engineered for energy efficiency, making it an ideal choice for those looking to optimize their operational costs while maintaining superior performance.

This centrifugal pump is part of the TPE series, known for its reliability and advanced technology. The TPE3 model is specifically designed to meet the demands of North American markets, ensuring compatibility and efficiency in a wide range of settings.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 98819911. If you're having trouble locating the right item, our team is here to help you find the perfect solution for your needs.

Actual impeller diameter 3.54 in
Built-in motor protection ELEC
Code for shaft seal BQQE
Config. file no 98484797
Connect code G
Connection PN 12
Control panel HMI300 - Graphical
Curve tolerance ISO9906:2012 3B2
Diameter 3.54 in
DOE Pump Energy Index VL 0.38
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency 60 Hz
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 108.0 lb
Housing Stainless steel
IE Eff. Class IE5
IE efficiency Product name:TPE3 80-180 S-A-G-I-BQQE-ICB
IE Efficiency class IE5
Impeller Composite
Insulation F
Insulation class (IEC 85) F
IP Class IP55
Length 14 3/16 in
Liquid max temp 248°F
Liquid temperature range -13 .. 248 °F
Material code I
Maximum head 59.06 ft
Maximum operating pressure 174.05 psi
Minimum ambient temperature -4°F
Motor 56C
Motor efficiency at full load 1 0.907
Motor type 90D
n rpm F
Net weight 88.9 lb
P2 kW 3 HP
Phase 3
Power factor 1 0.89
Pressure rating for connection PN 12
Pump housing Stainless steel
Pump version A
Range of ambient temperature -4 .. 122 °F
Rated current 3.8 A
Rated flow 222 US gpm
Rated head 42 ft
Rated power - P2 3 HP
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Shaft Product name:TPE3 80-180 S-A-G-I-BQQE-ICB
Shaft seal BQQE
Size of connection GF 80
Type 90D
Type of connection GF
Version A

Motor Curves

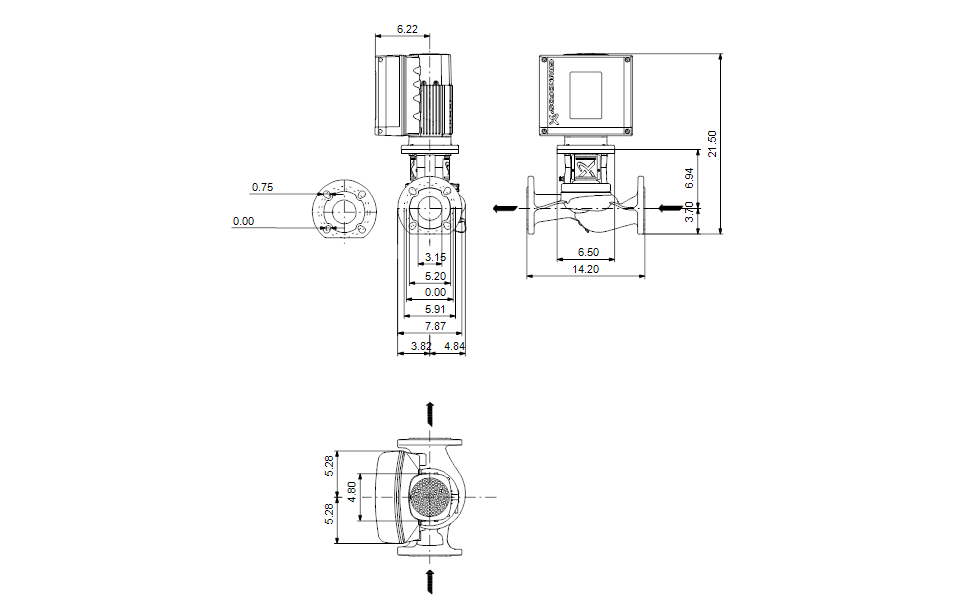

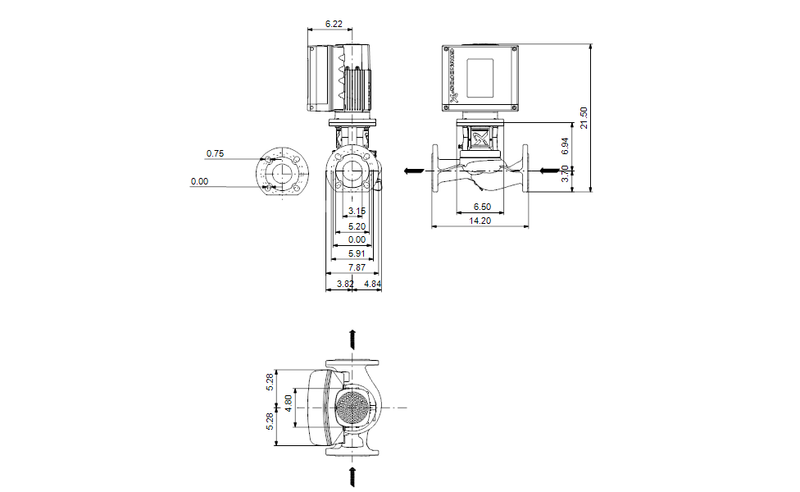

Dimensional Drawing

DWiring Diagram
